Airports for X-Plane

Jaipur

Airport details

CountryIndia
StateRajasthan
RegionVI
AirspaceDelhi Ctr
MunicipalityJaipur Municipal Corporation
Elevation1263ft (385m)
TimezoneGMT +5.5
Coordinates26.82417, 75.80250
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVIJP
IATA codeJAI
FAA coden/a

Communication

Jaipur ATIS126.600
Jaipur Tower125.250
Jaipur Approach123.500

Approach frequencies

ILS-cat-IIIRW27109.918.00mi
3° GSRW27109.918.00mi
Nearby Points of Interest:
Jaipur
-
Jagat Shiromani Temple

Runway info

Runway 09 / 27
 length3403m (11165ft)
 bearing85° / 265°
 width45m (148ft)
 surfaceconcrete
 blast zone157m (515ft) / 61m (200ft)

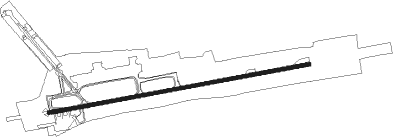

Airport layout


Parking locations

 GA  Gate  Tie-down

Nearby beacons

codeidentifierdistbearingfrequency
JJPJAIPUR VOR/DME1.987°112.90
JIJAIPUR NDB5.186°295
KSRKISHANGARH VOR/DME55.1256°113.20

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW09
 DIPA1D49mi4°
 LOVG1D50mi77°
 INTI1D45mi116°
 IKAV1D64mi147°
 GUDU1D54mi201°
 NIKO1D60mi201°
 UXEN1D50mi258°
RW27
 DIPA1B49mi4°
 LOVG1B50mi77°
 INTI1B45mi116°
 IKAV1B64mi147°
 GUDU1B54mi201°
 NIKO1B60mi201°
 UXEN1B50mi258°

STAR starting pointsdistanceinbound heading
RW09
 RIDR1C50.10°
 UKBA1C60.855°
 BUBN1C45.462°
 UXEN1C50.078°
 IGOL1C50.0216°
 LOVG1C49.8257°
 INTI1C45.3296°
RW27
 RIDR1A50.10°
 UKBA1A60.855°
 BUBN1A45.462°
 UXEN1A50.078°
 IGOL1A50.0216°
 LOVG1A49.8257°
 INTI1A45.3296°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09-YJP403 (109°)JP403 5000ft
JP402 (7mi, 173°) 3800ft
RW09-YJP404 (84°)JP404 5000ft
JP402 (7mi, 84°) 3800ft
RW09-YJP405 (59°)JP405 5000ft
JP402 (7mi, 353°) 3800ft
 RNAVJP402 3800ft
JP401 (7mi, 85°) 3300ft
VIJP (7mi, 84°) 1317ft
JP406 (7mi, 85°)
JP407 (7mi, 173°)
JP405 (20mi, 265°)
JP402 (7mi, 353°) 3800ft
JP402 (turn) 3800ft
RW27-YJP502 (265°)JP502 3800ft
RW27-YJP503 (242°)JP503 5000ft
JP502 (7mi, 173°) 3800ft
RW27-YJP504 (265°)JP504 5000ft
JP502 (7mi, 265°) 3800ft
RW27-YJP505 (287°)JP505 5000ft
JP502 (7mi, 353°) 3800ft
 RNAVJP502 3800ft
JP501 (7mi, 265°) 3300ft
VIJP (8mi, 265°) 1298ft
JP506 (5mi, 264°)
JP507 (7mi, 173°)
JP505 (20mi, 85°)
JP502 (7mi, 353°)
JP502 (turn) 3800ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BUBN1AJP504VHFright84 (264)°5000ft - 9000ft1.0min timedICAO rules
BUBN1AJP522VHFleft260 (80)°13000ft - 15000ft1.0min timedICAO rules
BUBN1CJP530VHFleft226 (46)°11000ft - 13000ft1.0min timedICAO rules
IGOL1AJP504VHFright84 (264)°5000ft - 9000ft1.0min timedICAO rules
IGOL1CJP540VHFleft101 (281)°12000ft - 15000ft1.0min timedICAO rules
INTI1AJP504VHFright84 (264)°5000ft - 9000ft1.0min timedICAO rules
INTI1CJP532VHFright162 (342)°10000ft - 12000ft1.0min timedICAO rules
LOVG1AJP504VHFright84 (264)°5000ft - 9000ft1.0min timedICAO rules
LOVG1CJP540VHFleft101 (281)°12000ft - 15000ft1.0min timedICAO rules
RIDR1AJP504VHFright84 (264)°5000ft - 9000ft1.0min timedICAO rules
RIDR1CJP532VHFright162 (342)°10000ft - 12000ft1.0min timedICAO rules
UKBA1AJP504VHFright84 (264)°5000ft - 9000ft1.0min timedICAO rules
UKBA1AJP522VHFleft260 (80)°13000ft - 15000ft1.0min timedICAO rules
UKBA1CJP530VHFleft226 (46)°11000ft - 13000ft1.0min timedICAO rules
UXEN1AJP504VHFright84 (264)°5000ft - 9000ft1.0min timedICAO rules
UXEN1AJP522VHFleft260 (80)°13000ft - 15000ft1.0min timedICAO rules
UXEN1CJP530VHFleft226 (46)°11000ft - 13000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
