Airports for X-Plane

Biratnagar

Airport details

CountryNepal
StateKosi
RegionVN
AirspaceKathmandu Ctr
MunicipalityBiratnagar
Elevation246ft (75m)
TimezoneGMT +5.75
Coordinates26.48417, 87.26444
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVNVT
IATA codeBIR
FAA coden/a

Communication

Biratnagar Biratnagar Tower123.800

Runway info

Runway 09 / 27
 length1500m (4921ft)
 bearing92° / 272°
 width30m (98ft)
 surfaceasphalt
 displ threshold6m (20ft) / 6m (20ft)

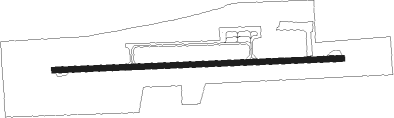

Airport layout


Taxiway locations

 A  B  C
Parking locations

 Helipad1  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
BRTBIRATNAGAR VOR/DME0.8265°114.10
KHRKATIHAR VOR/DME54.5162°113.70

Departure and arrival routes

Transition altitude13500ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW09
 ITAR1A, ITAR1B12mi1°
 RANG1B11mi85°
 LAUK1D, LAUK1C16mi309°
RW27
 ITAR1C, ITAR1D12mi1°
 RANG1A11mi85°
 LAUK1A, LAUK1B16mi309°

STAR starting pointsdistanceinbound heading
RW09
 CHURE, CHURE139.9122°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09LAUKI (129°)LAUKI 4000ft
INAWA (3mi, 132°)
VT102 (9mi, 161°) 1500ft
 RNAVVT102 1500ft
VT104 (3mi, 92°) 1400ft
VT106 (3mi, 92°) 418ft
RANGA (12mi, 85°) 3000ft
RANGA (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CHURELAUKIVHFleft315 (135)°4000ft - 9000ft1.0min timed160
CHURE1LAUKIVHFleft315 (135)°4000ft - 9000ft1.0min timed160
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
