Airports for X-Plane

Chaweng Ko Samui Island - Samui

Airport details

CountryThailand
StateSurat Thani Province
RegionVT
AirspaceBangkok Ctr
MunicipalityKo Samui
Elevation62ft (19m)
TimezoneGMT +7
Coordinates9.54917, 100.06250
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeVTSM
IATA codeUSM
FAA coden/a

Communication

Samui ATIS128.600
Samui Tower118.900
Samui Approach129.600
Nearby Points of Interest:
Wat Chom Thong
-
Wat Khao Phra Nim

Runway info

Runway 17 / 35
 length2111m (6926ft)
 bearing174° / 354°
 width45m (148ft)
 surfaceasphalt
 displ threshold200m (656ft) / 301m (988ft)
 blast zone60m (197ft) / 60m (197ft)

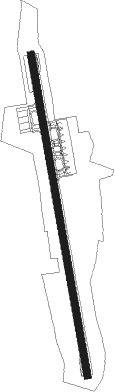

Airport layout


Taxiway locations

 A  B  C  E  F
Parking locations

 1  10  11  12  14  15  16  2
 3  4  5  6  7  8  9

Nearby beacons

codeidentifierdistbearingfrequency
SMUSAMUI VOR/DME0.1200°117.60
SMSAMUI (SURAT THANI) NDB0.3331°316
SRTSURAT THANI TACAN60.4246°113.20
STNSURAT THANI VOR/DME60.4246°110.60

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW17
 ENRA1A30mi11°
 OLBA1A30mi30°
 UPNE1A27mi70°
 RUMV1A20mi142°
 MESE1A30mi211°
 DORN1A19mi246°
RW35
 ENRA1B30mi11°
 OLBA1B30mi30°
 UPNE1B27mi70°
 RUMV1B20mi142°
 MESE1B30mi211°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW17DORNA (66°)DORNA 5000ft
LAXOS (18mi, 21°) 4000ft
PASKI (8mi, 90°) 2000ft
SM173 (3mi, 144°) 2000ft
SM171 (2mi, 144°) 1400ft
RW17ENRAG (191°)ENRAG 7000ft
PUKOM (19mi, 190°) 3300ft
SM172 (5mi, 205°) 2200ft
SM171 (3mi, 205°) 1400ft
RW17MESEM (31°)MESEM 8000ft
SM176 (13mi, 7°) 5000ft
SM175 (10mi, 7°) 5000ft
LAXOS (12mi, 7°) 4000ft
PASKI (8mi, 90°) 2000ft
SM173 (3mi, 144°) 2000ft
SM171 (2mi, 144°) 1400ft
RW17PUKOM (193°)PUKOM 3300ft
SM172 (5mi, 205°) 2200ft
SM171 (3mi, 205°) 1400ft
RW17RUMVA (322°)RUMVA 8000ft
SM174 (17mi, 7°) 7000ft
NURLO (10mi, 0°) 7000ft
PUKOM (11mi, 270°) 3300ft
SM172 (5mi, 205°) 2200ft
SM171 (3mi, 205°) 1400ft
RW17UPNEP (250°)UPNEP 8000ft
SM177 (8mi, 279°) 8000ft
NURLO (4mi, 279°) 7000ft
PUKOM (11mi, 270°) 3300ft
SM172 (5mi, 205°) 2200ft
SM171 (3mi, 205°) 1400ft
 RNAVSM171 1400ft
SM170 (4mi, 174°) 93ft
SM900 (5mi, 154°) 1600ft
PUKOM (15mi, 2°) 3300ft
PUKOM (turn) 3300ft
RW35DORNA (66°)DORNA 8000ft
ENTID (11mi, 120°) 6000ft
ATNES (9mi, 85°) 3300ft
RW35ENRAG (191°)ENRAG 11000ft
SM354 (14mi, 177°) 11000ft
SM353 (17mi, 177°) 7000ft
KILEP (10mi, 177°) 4000ft
ATNES (7mi, 265°) 3300ft
RW35MESEM (31°)MESEM 8000ft
SM352 (8mi, 52°) 8000ft
ATNES (13mi, 52°) 3300ft
RW35RUMVA (322°)RUMVA 6000ft
ATNES (11mi, 286°) 3300ft
RW35UPNEP (250°)UPNEP 7000ft
SM355 (13mi, 212°) 5000ft
KILEP (15mi, 227°) 4000ft
ATNES (7mi, 265°) 3300ft
 RNAVATNES 3300ft
SM351 (6mi, 354°) 2100ft
SM350 (6mi, 354°) 106ft
SM901 (3mi, 354°) 1200ft
ATNES (15mi, 174°) 3300ft
ATNES (turn) 3300ft
