Airports for X-Plane

Ujung Pandang-celebes Island - Ujung Pandang Hasanuddin

Airport details

CountryIndonesia
StateSouth Sulawesi
RegionWA
AirspaceUjung Pandang Ctr
MunicipalityKelurahan Hasanuddin
Elevation43ft (13m)
TimezoneGMT +8
Coordinates-5.06083, 119.55444
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeWAAA
IATA codeUPG
FAA coden/a

Communication

Ujung Pandang Hasanuddin ATIS126.250
Ujung Pandang Hasanuddin Hasanuddin Ground121.600
Ujung Pandang Hasanuddin Tower118.100
Ujung Pandang Hasanuddin UJUNG PANDANG Approach119.400
Ujung Pandang Hasanuddin UJUNG PANDANG Approach120.600

Approach frequencies

ILS-cat-IRW21110.118.00mi
ILS-cat-IRW03110.518.00mi
ILS-cat-IRW13111.318.00mi
3° GSRW21110.118.00mi
3° GSRW03110.518.00mi
2.9° GSRW13111.318.00mi

Runway info

Runway 03 / 21
 length3111m (10207ft)
 bearing30° / 210°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 0m (0ft)
Runway 13 / 31
 length2504m (8215ft)
 bearing131° / 311°
 width45m (148ft)
 surfaceasphalt
 blast zone61m (200ft) / 61m (200ft)

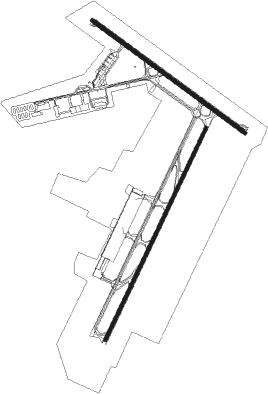

Airport layout


Taxiway locations

 A  C  D  E  F  H  I  J
 SP  WP
Parking locations

 Stand

Nearby beacons

codeidentifierdistbearingfrequency
MAKMAKASSAR VOR/DME0.956°110
MKSMAKASSAR VOR/DME2.1309°114.70

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW03
 VENR1F, VENR1A150mi39°
 KEND1E, KEND1A204mi59°
 LEKE1A, LEKE1F149mi71°
 SUGT1A, SUGT1F148mi80°
 EMON1E, EMON1A279mi93°
 NUKP1F, NUKP1A148mi121°
 NETO1F, NETO1A148mi143°
 LIPO1G, LIPO1A151mi230°
 ENDO1A, ENDO1G149mi251°
 BIMA1J151mi259°
 NUNL1A151mi267°
 KEVO1E, KEVO1A279mi279°
 GURN1A, GURN1E152mi295°
 GAMA1A, GAMA1G160mi325°
 NIVE1C, NIVE1A153mi341°
RW21
 VENR1G, VENR1B150mi39°
 KEND1F, KEND1B204mi59°
 LEKE1B, LEKE1G149mi71°
 SUGT1B, SUGT1G148mi80°
 EMON1B, EMON1F279mi93°
 NUKP1G, NUKP1B148mi121°
 NETO1G, NETO1B148mi143°
 LIPO1H, LIPO1B151mi230°
 ENDO1B, ENDO1H149mi251°
 BIMA1E151mi259°
 NUNL1B151mi267°
 KEVO1F, KEVO1B279mi279°
 GURN1F, GURN1B152mi295°
 GAMA1B, GAMA1H160mi325°
 NIVE1D, NIVE1B153mi341°
RW31
 VENR1E150mi39°
 LEKE1E149mi71°
 SUGT1E148mi80°
 NUKP1E148mi121°
 NETO1E148mi143°
 LIPO1E, LIPO1F151mi230°
 ENDO1F, ENDO1E149mi251°
 BIMA1C, BIMA1D151mi259°
 GAMA1F, GAMA1E160mi325°

STAR starting pointsdistanceinbound heading
RW03
 LIPO1J, LIPO1C150.650°
 ENDO1C, ENDO1J148.971°
 BIMA1H, BIMA1A151.379°
 KEVO1G, KEVO1C279.499°
 GURN1C, GURN1G152.3115°
 GAMA1I, GAMA1C160.1145°
 NIVE1F152.6161°
 ZELD1C157.4167°
 VENR1I, VENR1C150.4219°
 KEND1C, KEND1G204.4239°
 LEKE1C, LEKE1I148.7251°
 SUGT1I, SUGT1C148.4260°
 EMON1G, EMON1C279.1273°
 NUKP1I, NUKP1C147.9301°
 NETO1H, NETO1C148.3323°
RW13
 LIPO1L150.650°
 ENDO1L148.971°
 BIMA1F151.379°
 NIVE1E152.6161°
 VENR1H150.4219°
 LEKE1H148.7251°
 SUGT1H148.4260°
 NUKP1H147.9301°
RW21
 LIPO1D, LIPO1K150.650°
 ENDO1D, ENDO1K148.971°
 BIMA1I, BIMA1B151.379°
 KEVO1H, KEVO1D279.499°
 GURN1D, GURN1H152.3115°
 GAMA1D, GAMA1J160.1145°
 NIVE1G152.6161°
 ZELD1D157.4167°
 VENR1D, VENR1J150.4219°
 KEND1H, KEND1D204.4239°
 LEKE1J, LEKE1D148.7251°
 SUGT1D, SUGT1J148.4260°
 EMON1H, EMON1D279.1273°
 NUKP1D, NUKP1J147.9301°
 NETO1D, NETO1I148.3323°
RW31
 LIPO1L150.650°
 ENDO1L148.971°
 BIMA1F151.379°
 NIVE1E152.6161°
 VENR1H150.4219°
 LEKE1H148.7251°
 SUGT1H148.4260°
 NUKP1H147.9301°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW21ARAJA (193°)ARAJA 6000ft
KABIB (11mi, 172°) 3100ft
 RNAVKABIB 3100ft
AA501 (4mi, 210°) 2300ft
WAAA (7mi, 213°) 91ft
OLVAS (16mi, 209°) 4000ft
OLVAS (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BIMA1AEMYREVHFright269 (89)°13000ft - 14000ft1.0min timedICAO rules
BIMA1AOLVASVHFleft209 (29)°4000ft - 7000ft1.0min timed220
BIMA1BARAJAVHFright10 (190)°> 6000ft1.0min timedICAO rules
BIMA1BARINAVHFright266 (86)°10000ft - 12000ft1.0min timedICAO rules
EMON1CALVIAVHFleft87 (267)°14000ft - 18000ft1.0min timedICAO rules
EMON1COLVASVHFleft209 (29)°4000ft - 7000ft1.0min timed220
EMON1DARAJAVHFright10 (190)°> 6000ft1.0min timedICAO rules
EMON1DREAGAVHFright137 (317)°10000ft - 12000ft1.0min timedICAO rules
ENDO1CEMYREVHFright269 (89)°13000ft - 14000ft1.0min timedICAO rules
ENDO1COLVASVHFleft209 (29)°4000ft - 7000ft1.0min timed220
ENDO1DARAJAVHFright10 (190)°> 6000ft1.0min timedICAO rules
ENDO1DARINAVHFright266 (86)°10000ft - 12000ft1.0min timedICAO rules
GAMA1CEMYREVHFright269 (89)°13000ft - 14000ft1.0min timedICAO rules
GAMA1COLVASVHFleft209 (29)°4000ft - 7000ft1.0min timed220
GAMA1DARAJAVHFright10 (190)°> 6000ft1.0min timedICAO rules
GAMA1DARINAVHFright266 (86)°10000ft - 12000ft1.0min timedICAO rules
GURN1CEMYREVHFright269 (89)°13000ft - 14000ft1.0min timedICAO rules
GURN1COLVASVHFleft209 (29)°4000ft - 7000ft1.0min timed220
GURN1DARAJAVHFright10 (190)°> 6000ft1.0min timedICAO rules
GURN1DARINAVHFright266 (86)°10000ft - 12000ft1.0min timedICAO rules
KEND1CALVIAVHFleft87 (267)°14000ft - 18000ft1.0min timedICAO rules
KEND1COLVASVHFleft209 (29)°4000ft - 7000ft1.0min timed220
KEND1DARAJAVHFright10 (190)°> 6000ft1.0min timedICAO rules
KEND1DREAGAVHFright137 (317)°10000ft - 12000ft1.0min timedICAO rules
KEVO1CEMYREVHFright269 (89)°13000ft - 14000ft1.0min timedICAO rules
KEVO1COLVASVHFleft209 (29)°4000ft - 7000ft1.0min timed220
KEVO1DARAJAVHFright10 (190)°> 6000ft1.0min timedICAO rules
KEVO1DARINAVHFright266 (86)°10000ft - 12000ft1.0min timedICAO rules
LEKE1CALVIAVHFleft87 (267)°14000ft - 18000ft1.0min timedICAO rules
LEKE1COLVASVHFleft209 (29)°4000ft - 7000ft1.0min timed220
LEKE1DARAJAVHFright10 (190)°> 6000ft1.0min timedICAO rules
LEKE1DREAGAVHFright137 (317)°10000ft - 12000ft1.0min timedICAO rules
LIPO1CEMYREVHFright269 (89)°13000ft - 14000ft1.0min timedICAO rules
LIPO1COLVASVHFleft209 (29)°4000ft - 7000ft1.0min timed220
LIPO1DARAJAVHFright10 (190)°> 6000ft1.0min timedICAO rules
LIPO1DARINAVHFright266 (86)°10000ft - 12000ft1.0min timedICAO rules
NETO1CALVIAVHFleft87 (267)°14000ft - 18000ft1.0min timedICAO rules
NETO1COLVASVHFleft209 (29)°4000ft - 7000ft1.0min timed220
NETO1DARAJAVHFright10 (190)°> 6000ft1.0min timedICAO rules
NETO1DREAGAVHFright137 (317)°10000ft - 12000ft1.0min timedICAO rules
NUKP1CALVIAVHFleft87 (267)°14000ft - 18000ft1.0min timedICAO rules
NUKP1COLVASVHFleft209 (29)°4000ft - 7000ft1.0min timed220
NUKP1DARAJAVHFright10 (190)°> 6000ft1.0min timedICAO rules
NUKP1DREAGAVHFright137 (317)°10000ft - 12000ft1.0min timedICAO rules
SUGT1CALVIAVHFleft87 (267)°14000ft - 18000ft1.0min timedICAO rules
SUGT1COLVASVHFleft209 (29)°4000ft - 7000ft1.0min timed220
SUGT1DARAJAVHFright10 (190)°> 6000ft1.0min timedICAO rules
SUGT1DREAGAVHFright137 (317)°10000ft - 12000ft1.0min timedICAO rules
VENR1CALVIAVHFleft87 (267)°14000ft - 18000ft1.0min timedICAO rules
VENR1COLVASVHFleft209 (29)°4000ft - 7000ft1.0min timed220
VENR1DARAJAVHFright10 (190)°> 6000ft1.0min timedICAO rules
VENR1DREAGAVHFright137 (317)°10000ft - 12000ft1.0min timedICAO rules
ZELD1CEMYREVHFright269 (89)°13000ft - 14000ft1.0min timedICAO rules
ZELD1COLVASVHFleft209 (29)°4000ft - 7000ft1.0min timed220
ZELD1DARAJAVHFright10 (190)°> 6000ft1.0min timedICAO rules
ZELD1DARINAVHFright266 (86)°10000ft - 12000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
