Labuan Bajo - Komodo

Airport details

Country	Indonesia
State	East Nusa Tenggara
Region	WA
Airspace	Ujung Pandang Ctr
Municipality	Labuan Bajo
Elevation	228ft (69m)
Timezone	GMT +8
Coordinates	-8.48667, 119.88722
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	WATO
IATA code	LBJ
FAA code	n/a

Communication

Komodo ATIS	126.300
Komodo Komodo Tower	122.700
Komodo Komodo Tower Secondary	119.100

Runway info

Runway 17 / 35
	length	2267m (7438ft)
	bearing	172° / 352°
	width	45m (148ft)
	surface	asphalt
	blast zone	0m (0ft) / 60m (197ft)

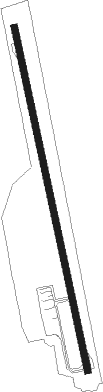

Airport layout

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
LB	LABUHAN BAJO NDB	0.1	180°	238
LBJ	LABUAN BAJO VOR/DME	0.3	335°	112.60
RG	RUTENG (FRANS SALES LEGA) NDB	35.8	101°	210
TBK	TAMBOLAKA VOR/DME	67	215°	113.10
WK	TAMBOLAKA NDB	67.3	215°	201

Departure and arrival routes

Transition altitude

11000ft

Transition level

13000ft

SID end points		distance	outbound heading
RW35
	RUTE1A	35mi	101°
	PADA1A	30mi	261°

STAR starting points		distance	inbound heading
RW17
	HUMA2A	30.1	103°
	NAFI2A	48.8	279°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW17	BANKO (179°)	BANKO 4000ft MD401 (5mi, 196°) 3000ft
	RNAV	MD401 3000ft MD402 (5mi, 172°) 2000ft MD403 (4mi, 172°) 896ft OMODO (9mi, 295°) BANKO (12mi, 42°) 4000ft BANKO (turn) 4000ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
HUMA2A	BANKO	VHF	left	359 (179)°	> 4000ft	1.0min timed	ICAO rules
NAFI2A	BANKO	VHF	left	359 (179)°	> 4000ft	1.0min timed	ICAO rules
*) magnetic outbound (inbound) holding course
