Sandakan

Airport details

Country	Malaysia
State	Sabah
Region	WB
Airspace	Kota Kinabalu Ctr
Municipality	Sandakan
Elevation	45ft (14m)
Timezone	GMT +8
Coordinates	5.90167, 118.04861
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	WBKS
IATA code	SDK
FAA code	n/a

Communication

Sandakan Ground Control	121.900
Sandakan Tower	121.050
Sandakan Approach	123.200

Approach frequencies

ILS-cat-I	RW08	109.3	18.00mi
3° GS	RW08	109.3	18.00mi

Runway info

Runway 08 / 26
	length	2137m (7011ft)
	bearing	81° / 261°
	width	46m (151ft)
	surface	asphalt
	blast zone	60m (197ft) / 60m (197ft)

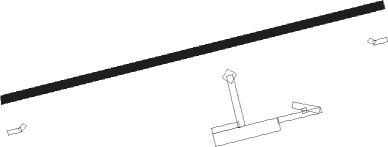

Airport layout

Nearby beacons

code	identifier	dist	bearing	frequency
VSN	SANDAKAN VOR/DME	1.5	85°	114
LHD	LAHAD DATU NDB	55.4	162°	334

Departure and arrival routes

Transition altitude

11000ft

Transition level

13000ft

SID end points		distance	outbound heading
RW08
	UGPE1B	23mi	251°
	GUSM1B	36mi	270°
	TOME1B	24mi	295°
	KUDA1B	94mi	310°
RW26
	UGPE1A	23mi	251°
	GUSM1A	36mi	270°
	TOME1A	24mi	295°
	KUDA1A	94mi	310°

STAR starting points		distance	inbound heading
RW08
	UGPE2E	23.4	71°
	GUSM2E	23.3	90°
	TOME2E	23.6	115°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW08-Z	ATATO (351°)	ATATO 2500ft KS546 (2mi, 251°) 2500ft KS544 (7mi, 318°) 2000ft KS542 (2mi, 37°) 1500ft KS524 (1mi, 60°) 1100ft LASAR (turn) 900ft
RW08-Z	GUSMO (90°)	GUSMO 5200ft LUTUD (13mi, 92°) 2500ft KS516 (4mi, 92°) 2000ft KS504 (3mi, 92°) 1100ft LASAR (turn) 900ft
RW08-Z	IDSIK (80°)	IDSIK 2500ft KS526 (4mi, 82°) 2000ft LASAR (4mi, 81°) 900ft
RW08-Z	TOMEN (115°)	TOMEN 6000ft UBTAL (12mi, 121°) 3000ft KS510 (6mi, 121°) 2000ft KS508 (1mi, 121°) 1600ft KS504 (2mi, 107°) 1100ft LASAR (turn) 900ft
RW08-Z	UGPEM (71°)	UGPEM 5200ft LIGDU (13mi, 70°) 2500ft KS536 (4mi, 70°) 2000ft KS524 (3mi, 70°) 1100ft LASAR (turn) 900ft
	RNAV	LASAR 900ft WBKS (3mi, 78°) 89ft ATPIN (4mi, 83°) KS470 (4mi, 81°) 2000ft KS480 (6mi, 166°) ATATO (9mi, 251°) 2500ft
RW26-Z	GUSMO (90°)	GUSMO 5200ft KS648 (16mi, 74°) 3000ft SUSBI (9mi, 74°) 2500ft KS634 (2mi, 74°) 2300ft KS630 (6mi, 137°) 2000ft ATPIN (4mi, 230°) 900ft
RW26-Z	ISGOS (261°)	ISGOS 2500ft KS650 (2mi, 261°) 2500ft ATPIN (5mi, 261°) 900ft
RW26-Z	TOMEN (115°)	TOMEN 6000ft KS642 (14mi, 98°) 3000ft SUSBI (9mi, 98°) 2500ft KS634 (2mi, 74°) 2300ft KS630 (6mi, 137°) 2000ft ATPIN (4mi, 230°) 900ft
RW26-Z	UGPEM (71°)	UGPEM 5200ft KS614 (14mi, 88°) 3000ft OMUKU (11mi, 88°) 2500ft KS608 (2mi, 88°) 2300ft KS604 (6mi, 24°) 2000ft ATPIN (4mi, 291°) 900ft
	RNAV	ATPIN 900ft WBKS (4mi, 263°) 70ft LASAR (3mi, 258°) KS560 (4mi, 261°) 2000ft KS648 (6mi, 348°) SUSBI (9mi, 74°) 2500ft
