Airports for X-Plane

Pontianak-borneo Island - Supadio Intl

Airport details

CountryIndonesia
StateWest Kalimantan
RegionWI
AirspaceJakarta Ctr
MunicipalitySungai Raya
Elevation8ft (2m)
TimezoneGMT +7
Coordinates-0.15084, 109.40599
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeWIOO
IATA codePNK
FAA coden/a

Communication

Supadio Intl ATIS127.400
Supadio Intl Tower118.300
Supadio Intl PONTIANAK Approach119.000

Approach frequencies

ILS-cat-IRW15111.318.00mi
3° GSRW15111.318.00mi

Runway info

Runway 15 / 33
 length2253m (7392ft)
 bearing158° / 338°
 width45m (148ft)
 surfaceasphalt
 blast zone65m (213ft) / 60m (197ft)

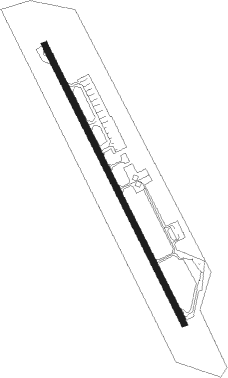

Airport layout


Taxiway locations

 A  B  D  G
Parking locations

 New

Nearby beacons

codeidentifierdistbearingfrequency
PNKPONTIANAK VOR/DME4.6337°113.20

Departure and arrival routes

Transition altitude11000ft
Transition level13000ft
SID end pointsdistanceoutbound heading
RW15
 PAPS1A92mi29°
 ADKO1A104mi98°
 TEPE1A90mi120°
 MASR1A147mi198°
 UNTE1A61mi242°
 BAVU1A26mi290°
RW33
 PAPS1B92mi29°
 ADKO1B104mi98°
 TEPE1B90mi120°
 MASR1B147mi198°
 UNTE1B61mi242°
 BAVU1B26mi290°

STAR starting pointsdistanceinbound heading
ALL
 OLVE1A53.536°
 UNTE1C60.862°
 BAVU1C26.0110°
 PAPS1C92.3209°
 ADKO1C103.8278°
 TEPE1C90.2300°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW15IRVAT (157°)IRVAT 3000ft
OVNAT (6mi, 21°) 2500ft
URBUS (4mi, 337°) 2000ft
MUKBO (4mi, 248°) 2000ft
 RNAVMUKBO 2000ft
ONTIA (6mi, 158°) 2000ft
WIOO (7mi, 157°) 61ft
IRVAT (5mi, 337°) 3000ft
IRVAT (turn) 3000ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
