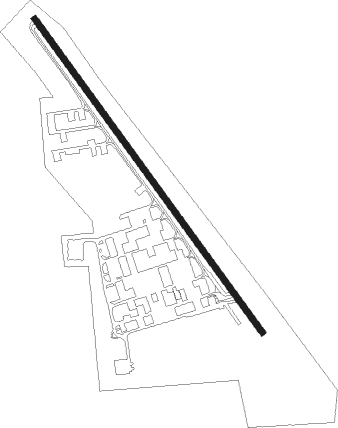

Zellwood - Orlando Apopka
Airport details
| Country | United States of America |
| State | Florida |
| Region | K7 |
| Airspace | Jacksonville Ctr |
| Municipality | Orange County |
| Elevation | 143ft (44m) |
| Timezone | GMT -5 |
| Coordinates | 28.70748, -81.58196 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | X04 |
| IATA code | n/a |
| FAA code | n/a |
Communication
| Orlando Apopka CTAF/UNICOM | 123.050 |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| OR | HERNY (ORLANDO) NDB | 14.3 | 144° | 221 |
| ORL | ORLANDO VORTAC | 16.3 | 124° | 112.20 |
| OMN | ORMOND BEACH VORTAC | 43.4 | 38° | 112.60 |
| OCF | OCALA VORTAC | 44 | 306° | 113.70 |
| LAL | LAKELAND VORTAC | 48.9 | 211° | 116 |
| COF | PATRICK (COCOA) TACAN | 58.4 | 116° | 115 |
| MLB | MELBOURNE VOR/DME | 61.7 | 122° | 115.85 |
| TP | COSME (TAMPA) NDB | 62.2 | 237° | 368 |
| GN | WYNDS (GAINESVILLE) NDB | 65.5 | 328° | 269 |
| GNV | GATORS VORTAC | 69.3 | 325° | 116.20 |
| MCF | MACDILL (TAMPA) TACAN | 70.7 | 228° | 111 |
Departure and arrival routes
| Transition altitude | 18000ft |
| Transition level | 18000ft |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| GOOFY7 | 51.8 | 328° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RWNVA | MODIN (145°) | MODIN 2000ft |
| RWNVA | SHIMM (127°) | SHIMM MODIN (15mi, 116°) 2000ft |
| RWNVA | WORMS (213°) | WORMS OXAGE (5mi, 241°) 2600ft MODIN (13mi, 241°) 2000ft |
| RNAV | MODIN 2000ft JUZTN (5mi, 145°) 1700ft X04 (5mi, 145°) 174ft (4962mi, 109°) 542ft MODIN (4968mi, 289°) 2000ft MODIN (turn) | |
| RWNVB | JENSN (27°) | JENSN JAXIN (16mi, 53°) 3000ft UZUBU (4mi, 37°) 2000ft |
| RNAV | UZUBU 2000ft TBEAU (4mi, 325°) 1700ft FTEEN (2mi, 325°) 920ft X04 (3mi, 325°) 160ft (4962mi, 109°) 542ft MODIN (4968mi, 289°) 2000ft MODIN (turn) |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| GOOFY7 | BAIRN | VHF | right | 162 (342)° | < 17999ft | 1.0min timed | ICAO rules |
| *) magnetic outbound (inbound) holding course | |||||||
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
