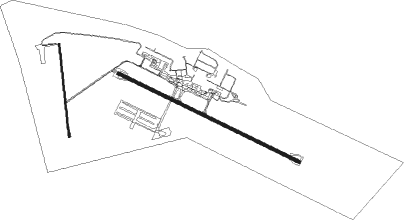

Alice Springs
Airport details
| Country | Australia |
| State | Northern Territory |
| Region | YM |
| Airspace | Melbourne Ctr |
| Municipality | Town of Alice Springs |
| Elevation | 1789ft (545m) |
| Timezone | GMT +9.5 |
| Coordinates | -23.79768, 133.88394 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.30 |
| ICAO code | YBAS |
| IATA code | ASP |
| FAA code | n/a |
Communication
| Alice Springs Alice Springs CTAF | 118.300 |
| Alice Springs Alice Springs Tower | 118.300 |
| Alice Springs Melbourne CNTR | 119.800 |
Approach frequencies
| ILS-cat-I | RW12 | 109.9 | 18.00mi |
| 3° GS | RW12 | 109.9 | 18.00mi |
Nearby Points of Interest:
Old Telegraph Station
-Ewaninga rock carvings
-Hamilton Downs Station
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| AS | ALICE SPRINGS VOR/DME | 0.4 | 310° | 115.90 |
| AS | ALICE SPRINGS NDB | 1.3 | 332° | 335 |
Departure and arrival routes
| Transition altitude | 10000ft |
| Transition level | 11000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW12 | |||
| TNK3 | 250mi | 4° | |
| GAFER3 | 177mi | 61° | |
| PULOL3 | 163mi | 103° | |
| STEEL3 | 79mi | 112° | |
| KALUG3 | 200mi | 127° | |
| DESET4 | 79mi | 140° | |
| IDANU3 | 200mi | 147° | |
| ELLOW3 | 80mi | 148° | |
| SARAH3 | 200mi | 158° | |
| SADEL3 | 79mi | 158° | |
| TUMSO1 | 36mi | 224° | |
| PUMAK1 | 36mi | 240° | |
| LEESA5 | 222mi | 295° | |
| HONGI3 | 197mi | 312° | |
| DIGLA3 | 155mi | 344° | |
| MINIM1, SCOTI3 | 150mi | 350° | |
| RW30 | |||
| TNK3 | 250mi | 4° | |
| GAFER3 | 177mi | 61° | |
| PULOL3 | 163mi | 103° | |
| STEEL3 | 79mi | 112° | |
| KALUG3 | 200mi | 127° | |
| DESET4 | 79mi | 140° | |
| IDANU3 | 200mi | 147° | |
| ELLOW3 | 80mi | 148° | |
| SARAH3 | 200mi | 158° | |
| SADEL3 | 79mi | 158° | |
| TUMSO1 | 36mi | 224° | |
| PUMAK1 | 36mi | 240° | |
| LEESA5 | 222mi | 295° | |
| HONGI3 | 197mi | 312° | |
| DIGLA3 | 155mi | 344° | |
| SCOTI3, OCTAV3 | 150mi | 350° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW12-M | AS788 (241°) | AS788 7000ft AS632 (12mi, 242°) 6300ft AS624 (8mi, 261°) 3710ft |
| RW12-M | BAISH (282°) | BAISH 7000ft AS688 (18mi, 298°) 7000ft SHAWN (3mi, 283°) 6500ft AS680 (2mi, 262°) 6300ft AS664 (4mi, 267°) 4960ft AS624 (4mi, 279°) 3710ft |
| RNAV | AS624 3710ft AS604 (3mi, 201°) 2380ft YBAS (1mi, 122°) 1833ft AS752 (7mi, 118°) BASEB (11mi, 118°) 5200ft | |
| RW12-P | AS776 (66°) | AS776 7000ft AS725 (8mi, 69°) 7000ft SPIES (11mi, 69°) 6000ft AS648 (3mi, 69°) 5070ft AS616 (5mi, 39°) 3570ft |
| RW12-P | FULTN (356°) | FULTN 6500ft AIDEN (8mi, 338°) 5900ft AS656 (7mi, 338°) 3860ft AS616 (turn) 3570ft |
| RNAV | AS616 3570ft AS604 (3mi, 65°) 2380ft YBAS (1mi, 122°) 1833ft AS752 (7mi, 118°) BASEB (11mi, 118°) 5200ft | |
| RW12-U | AS784 (164°) | AS784 7300ft AS652 (5mi, 164°) 7300ft AS640 (8mi, 198°) 7300ft AS620 (8mi, 174°) 4370ft |
| RW12-U | LISZT (119°) | LISZT 6700ft AS620 (8mi, 118°) 4370ft |
| RNAV | AS620 4370ft AS612 (3mi, 118°) 3340ft AS604 (3mi, 118°) 2380ft YBAS (1mi, 122°) 1833ft AS752 (7mi, 118°) BASEB (11mi, 118°) 5200ft | |
| RW12-Z | BASWD (105°) | BASWD 5200ft BASWI (6mi, 81°) 5200ft |
| RW12-Z | BASWE (119°) | BASWE 5200ft BASWI (5mi, 118°) 5200ft |
| RW12-Z | BASWG (146°) | BASWG 5200ft BASWI (7mi, 191°) 5200ft |
| RNAV | BASWI 5200ft BASWF (5mi, 118°) 3750ft YBAS (5mi, 119°) 1836ft BASWH (3mi, 117°) (7771mi, 280°) 5200ft | |
| RW30-M | AS784 (164°) | AS784 7000ft AS780 (8mi, 147°) 7000ft AS772 (19mi, 130°) 6600ft AS764 (4mi, 152°) 6600ft |
| RW30-M | AS788 (241°) | AS788 7000ft AS764 (11mi, 210°) 6600ft |
| RNAV | AS764 6600ft AS752 (9mi, 240°) 3310ft YBAS (7mi, 298°) 1814ft AS708 (turn) AS716 (4mi, 249°) AS720 (11mi, 195°) 5200ft | |
| RW30-P | AS776 (66°) | AS776 7000ft AS770 (4mi, 77°) 7000ft AS766 (12mi, 85°) 7000ft SEEKR (15mi, 85°) 5800ft |
| RW30-P | FULTN (356°) | FULTN 5800ft SEEKR (7mi, 34°) 5800ft |
| RNAV | SEEKR 5800ft AS752 (6mi, 14°) 3310ft YBAS (7mi, 298°) 1814ft AS708 (turn) AS716 (4mi, 249°) AS720 (11mi, 195°) 5200ft | |
| RW30-Z | BASEA (276°) | BASEA 5200ft BASEI (7mi, 233°) 5200ft |
| RW30-Z | BASEB (298°) | BASEB 5200ft BASEI (5mi, 298°) 5200ft |
| RW30-Z | BASEC (321°) | BASEC 5200ft BASEI (7mi, 11°) 5200ft |
| RNAV | BASEI 5200ft BASEF (5mi, 298°) 3720ft YBAS (8mi, 298°) 1814ft BASET (1mi, 303°) (7769mi, 280°) 5200ft |
