Airports for X-Plane

Broken Hill

Airport details

CountryAustralia
StateNew South Wales
RegionYM
AirspaceMelbourne Ctr
MunicipalityBroken Hill
Elevation958ft (292m)
TimezoneGMT +9.5
Coordinates-32.00139, 141.47166
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeYBHI
IATA codeBHQ
FAA codeYBHI

Communication

Broken Hill CTAF126.700
Nearby Points of Interest:
Broken Hill railway station
-
Walter Sully Emporium
-
Wesley Uniting Church, Broken Hill
-
St Josephs Convent
-
City of Broken Hill
-
Broken Hill Mosque

Runway info

Runway 05 / 23
 length2511m (8238ft)
 bearing60° / 240°
 width30m (98ft)
 surfaceasphalt
Runway 14 / 32
 length1001m (3284ft)
 bearing138° / 318°
 width30m (98ft)
 surfacedirt

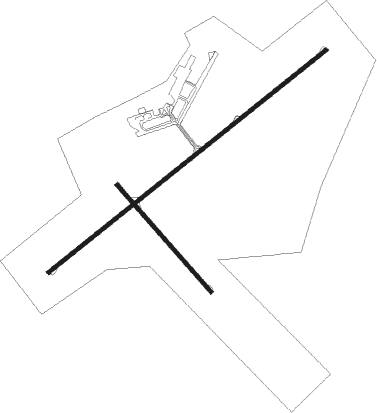

Airport layout


Parking locations

 GA1  GA10  GA2  GA3  GA4  GA5  GA6  GA7
 GA8  GA9  RFDS1  RFDS2  Tran1  Tran2

Nearby beacons

codeidentifierdistbearingfrequency
BHIBROKEN HILL VOR/DME0.485°114.20
BHIBROKEN HILL NDB0.5341°332

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05BHIWD (40°)BHIWD 2700ft
BHIWI (5mi, 344°) 2700ft
RW05BHIWE (60°)BHIWE 2700ft
BHIWI (5mi, 60°) 2700ft
RW05BHIWG (78°)BHIWG 2700ft
BHIWI (5mi, 122°) 2700ft
 RNAVBHIWI 2700ft
BHIWF (5mi, 60°) 2640ft
BHIWM (5mi, 60°) 1044ft
BHIWH (3mi, 60°)
(7903mi, 283°) 2700ft
RW23BHIEA (220°)BHIEA 2700ft
BHIEI (5mi, 164°) 2700ft
RW23BHIEB (240°)BHIEB 2700ft
BHIEI (5mi, 240°) 2700ft
RW23BHIEC (258°)BHIEC 2700ft
BHIEI (5mi, 302°) 2700ft
 RNAVBHIEI 2700ft
BHIEF (5mi, 240°) 2700ft
BHIEM (5mi, 240°) 1095ft
BHIEH (3mi, 240°)
(7899mi, 283°) 2700ft
