Airports for X-Plane

Mudgee

Airport details

CountryAustralia
StateNew South Wales
RegionYB
AirspaceBrisbane Ctr
MunicipalityMid-Western Regional Council
Elevation1541ft (470m)
TimezoneGMT +10
Coordinates-32.56250, 149.61111
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeYMDG
IATA codeDGE
FAA coden/a

Communication

Mudgee CTAF126.700
Mudgee BRISBANE Center133.050
Nearby Points of Interest:
Mudgee railway station
-
St. Mary's Roman Catholic Church, Presbytery, Convent & Hall
-
Gulgong railway bridge over Wialdra Creek
-
Rylstone railway station
-
Golden Gully and Archway
-
Hill End Historic Site
-
Stuart Town railway station
-
Wellington Post Office

Runway info

Runway 04 / 22
 length1733m (5686ft)
 bearing57° / 237°
 width30m (98ft)
 surfaceasphalt
Runway 16 / 34
 length1079m (3540ft)
 bearing169° / 349°
 width30m (98ft)
 surfacegrass

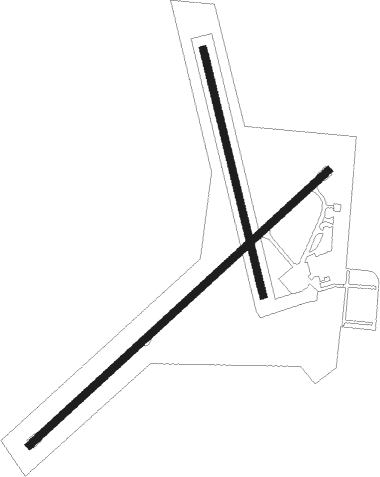

Airport layout


Taxiway locations

 A  E
Parking locations

 GA  Gate  New

Nearby beacons

codeidentifierdistbearingfrequency
MDGMUDGEE NDB0.3119°398
BTHBATHURST NDB51.1177°383

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04MD2WD (65°)MD2WD 4800ft
MD2WI (5mi, 14°) 4800ft
RW04MD2WE (81°)MD2WE 4800ft
MD2WI (5mi, 83°) 4800ft
RW04MD2WG (96°)MD2WG 4800ft
MD2WI (5mi, 148°) 4800ft
 RNAVMD2WI 4800ft
MD2WF (5mi, 83°) 4150ft
MD2WM (6mi, 83°) 1884ft
(8204mi, 282°) 2050ft
MD2WH (8209mi, 102°)
(8209mi, 282°) 4100ft
RW22MD2EA (209°)MD2EA 4100ft
MD2EI (5mi, 149°) 4100ft
RW22MD2EB (229°)MD2EB 4100ft
MD2EI (5mi, 228°) 4100ft
RW22MD2EC (246°)MD2EC 4100ft
MD2EI (5mi, 290°) 4100ft
 RNAVMD2EI 4100ft
MD2EF (5mi, 228°) 3750ft
MD2EM (6mi, 228°) 1833ft
(8207mi, 282°) 2050ft
MD2EH (8204mi, 102°)
(8204mi, 282°) 4100ft
