Airports for X-Plane

Melbourne - Melbourne Intl

Airport details

CountryAustralia
StateVictoria
RegionYM
AirspaceMelbourne Ctr
MunicipalityMelbourne
Elevation433ft (132m)
TimezoneGMT +10
Coordinates-37.68449, 144.85623
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeYMML
IATA codeMEL
FAA coden/a

Communication

Melbourne Intl MELBOURNE ATIS118.000
Melbourne Intl MELBOURNE ATIS114.100
Melbourne Intl MELBOURNE CLD127.200
Melbourne Intl MELBOURNE Ground Control121.700
Melbourne Intl MELBOURNE Tower120.500
Melbourne Intl MELBOURNE Approach132.000
Melbourne Intl MELBOURNE Approach118.900
Melbourne Intl MELBOURNE Departure132.000
Melbourne Intl MELBOURNE Departure118.900

Approach frequencies

ILS-cat-IIIRW16109.718.00mi
ILS-cat-IRW27109.318.00mi
3° GSRW16109.718.00mi
3° GSRW27109.318.00mi
Nearby Points of Interest:
Maribyrnong River Viaduct
-
HM Prison Pentridge
-
Melbourne Showgrounds
-
Essendon tram depot
-
Brunswick Fire Station and Flats
-
Flemington Post Office
-
Saltwater River Rail Bridge
-
Footscray Town Hall
-
Sunbury Asylum
-
Victoria Dock
-
Old Physics Conference Room and Gallery
-
Baldwin Spencer Building
-
Old Pathology Building Melbourne University
-
Rupertswood
-
Victorian Trades Hall
-
Emily McPherson College
-
Medley Hall
-
CSIRAC
-
Plumbers and Gasfitters Employees Union Building
-
Melbourne Mint
-
Horticultural Hall
-
Cairo Flats
-
Spencer Street Power Station
-
Working Men's College of Melbourne
-
State Library Victoria

Runway info

Runway 16 / 34
 length3665m (12024ft)
 bearing169° / 349°
 width59m (194ft)
 surfaceasphalt
 blast zone61m (200ft) / 61m (200ft)
Runway 09 / 27
 length2281m (7484ft)
 bearing93° / 273°
 width45m (148ft)
 surfaceasphalt
 blast zone61m (200ft) / 61m (200ft)

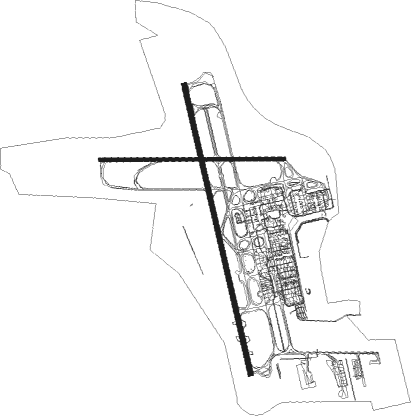

Airport layout


Taxiway locations

 A  B  B21  B22  B23  B24  B25  B26
 B28  C  C1  C10  C12  C2  C3  C4
 C6  C7  C8  C9  D10  D11  D16  D2
 D20  D3  D5  D7  D9  E  E1  E10
 E3  E4  E5  E6  E7  E8  E9  F
 F11  F12  F13  F15  F17  G  J  K
 M  N  P  Q  R  S  T  V
 W  Y
Parking locations

 B21  B22  B23  B24  B25  B25A  B26  B26A
 B27  B28  B30  C1  C10  C11  C12  C2
 C3  C4  C6  C7  C8  C9  D10  D11
 D12  D13  D14  D15  D16  D17  D18  D19
 D2  D20  D3  D4  D5  D6  D7  D8
 D9  E1  E10  E2  E3  E4  E5  E6
 E7  E8  E9  F11  F12  F13  F14  F15
 F16  F17  F18  F19  F20  F21  F21A  F22
 F22A  F22B  F23  F24  F24A  F24B  F25  F25A
 F25B  G41  G41A  G42  G43  G44  G45  G45A
 G46  G46A  G47  G48  G49  G51  G52  G54
 G54A  G56  G57  G57A  G57C  G57G  G58  G59
 G60  G60A  G60F  GA1  GA2  GA3  GA4  GA5
 GA6  GA7  GA8  GA9  H1  H1B  H3A  Qantas

Nearby beacons

codeidentifierdistbearingfrequency
MLMELBOURNE VOR/DME1.6330°114.10
MBMOORABBIN (MELBOURNE) NDB20.7141°398
AVAVALON VOR/DME28.8227°116.10
MNGMANGALORE VOR50.623°113.20

Departure and arrival routes

Transition altitude10000ft
Transition level11000ft
SID end pointsdistanceoutbound heading
RW16
 MNG351mi23°
 NONIX341mi33°
 DOSEL140mi46°
 CORRS939mi108°
 SUNTI352mi157°
 KAGMU112mi262°
 ESDIG352mi267°
 CRENA1229mi275°
 NEVIS781mi287°
 KEPPA268mi315°
RW27
 MNG351mi23°
 NONIX341mi33°
 DOSEL140mi46°
 CORRS939mi108°
 SUNTI352mi157°
 ESDIG352mi267°
 CRENA1229mi275°
 NEVIS781mi287°
 KEPPA268mi315°
RW34
 MNG351mi23°
 NONIX341mi33°
 DOSEL140mi46°
 CORRS939mi108°
 SUNTI352mi157°
 ESDIG352mi267°
 CRENA1229mi275°
 NEVIS781mi287°
 KEPPA268mi315°

STAR starting pointsdistanceinbound heading
RW09
 WEND9A42.780°
 ARBE6A31.5166°
 BOYS7A45.0245°
 LIZI8A39.7253°
 WARE7A29.4306°
 PORT6A20.2352°
RW16
 WEND9P20.276°
 WEND9A42.780°
 ARBE6A31.5166°
 BOYS7A45.0245°
 LIZI8A39.7253°
 WARE7A, WARE7M29.4306°
RW27
 WEND9A42.780°
 ARBE6A31.5166°
 BOYS7A45.0245°
 LIZI8A39.7253°
 WARE7A29.4306°
RW34
 WEND9A42.780°
 ARBE6A31.5166°
 BOYS7A, BOYS7V45.0245°
 LIZI8A, LIZI8V39.7253°
 WARE7A, WARE7V29.4306°
 PORT6A20.2352°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16-PEMSEK (248°)EMSEK 3000ft
SUSAK (4mi, 356°) 3000ft
 RNAVSUSAK 3000ft
AREXO (5mi, 298°) 3000ft
ML420 (4mi, 217°) 1530ft
YMML (5mi, 160°) 482ft
ML430 (6mi, 178°)
(7823mi, 285°) 4000ft
RW16-ZBELTA (165°)BELTA 3000ft
ANBEM (4mi, 168°) 3000ft
 RNAVANBEM 3000ft
MMLNF (2mi, 169°) 2240ft
YMML (8mi, 163°) 482ft
MMLNH (1mi, 214°)
(7826mi, 285°) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
PORT6AMILLAVHFright101 (281)°20000ft - 60000ft1.5min timedICAO rules
PORT6AONAGIVHFright139 (319)°1.0min timedICAO rules
WEND9AWENDYVHFright244 (64)°20000ft - 60000ft1.5min timedICAO rules
WEND9PWENDYVHFright244 (64)°20000ft - 60000ft1.5min timedICAO rules
*) magnetic outbound (inbound) holding course
