Port Hedland - Port Hedland Intl
Airport details
| Country | Australia |
| State | Western Australia |
| Region | YM |
| Airspace | Melbourne Ctr |
| Municipality | Port Hedland |
| Elevation | 33ft (10m) |
| Timezone | GMT +8 |
| Coordinates | -20.37778, 118.62639 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | YPPD |
| IATA code | PHE |
| FAA code | n/a |
Communication
| Port Hedland Intl ATIS | 133.650 |
| Port Hedland Intl CTAF | 119.900 |
Nearby Points of Interest:
Port of Port Hedland

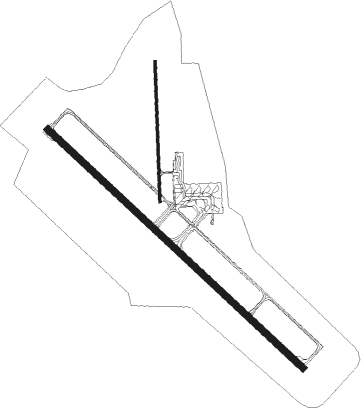

Runway info
Runway 14 / 32  | ||
| length | 2505m (8219ft) | |
| bearing | 136° / 316° | |
| width | 45m (148ft) | |
| surface | asphalt | |
| blast zone | 91m (299ft) / 148m (486ft) | |
| Runway 18 / 36 | ||
| length | 1003m (3291ft) | |
| bearing | 183° / 3° | |
| width | 18m (59ft) | |
| surface | asphalt | |
| blast zone | 0m (0ft) / 61m (200ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| PD | PORT HEDLAND VOR/DME | 0.2 | 259° | 114.10 |
| PD | PORT HEDLAND NDB | 1.1 | 120° | 260 |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW14-U | PD922 (1°) | PD922 4900ft PD916 (4mi, 350°) 4900ft PD906 (18mi, 339°) 4900ft PD904 (9mi, 339°) 4900ft PD900 (8mi, 60°) 1600ft |
| RW14-U | PD928 (28°) | PD928 4900ft PD906 (7mi, 3°) 4900ft PD904 (9mi, 339°) 4900ft PD900 (8mi, 60°) 1600ft |
| RW14-U | PD946 (312°) | PD946 4900ft PD942 (4mi, 322°) 4900ft PD938 (22mi, 332°) 4900ft PD930 (3mi, 313°) 4900ft PD900 (8mi, 218°) 1600ft |
| RW14-U | PD954 (236°) | PD954 4900ft PD940 (8mi, 251°) 4900ft PD930 (8mi, 280°) 4900ft PD900 (8mi, 218°) 1600ft |
| RW14-U | PD958 (246°) | PD958 4900ft PD934 (7mi, 271°) 4900ft PD930 (7mi, 295°) 4900ft PD900 (8mi, 218°) 1600ft |
| RW14-U | PD970 (135°) | PD970 2200ft PD900 (2mi, 136°) 1600ft |
| RNAV | PD900 1600ft YPPD (5mi, 135°) 73ft PD982 (8mi, 136°) 1800ft | |
| RW14-Z | PPDND (115°) | PPDND 3000ft PPDNI (5mi, 69°) 3000ft |
| RW14-Z | PPDNE (136°) | PPDNE 3000ft PPDNI (5mi, 136°) 3000ft |
| RW14-Z | PPDNG (157°) | PPDNG 3000ft PPDNI (5mi, 209°) 3000ft |
| RNAV | PPDNI 3000ft PPDNF (5mi, 136°) 1750ft YPPD (6mi, 135°) 73ft PPDNH (2mi, 137°) (7009mi, 280°) 1800ft | |
| RW32-U | PD922 (1°) | PD922 3900ft PD918 (15mi, 0°) 3900ft PD914 (5mi, 35°) 3900ft PD910 (7mi, 13°) 1600ft |
| RW32-U | PD928 (28°) | PD928 3900ft PD914 (11mi, 68°) 3900ft PD910 (7mi, 13°) 1600ft |
| RW32-U | PD954 (236°) | PD954 4700ft PD952 (7mi, 220°) 4700ft PD950 (7mi, 186°) 4700ft PD910 (8mi, 244°) 1600ft |
| RW32-U | PD958 (246°) | PD958 4700ft PD950 (9mi, 208°) 4700ft PD910 (8mi, 244°) 1600ft |
| RW32-U | PD982 (316°) | PD982 2200ft PD910 (2mi, 316°) 1600ft |
| RNAV | PD910 1600ft YPPD (6mi, 316°) 83ft PD970 (7mi, 315°) 1800ft | |
| RW32-Z | PPDSA (296°) | PPDSA 1800ft PPDSI (5mi, 249°) 1800ft |
| RW32-Z | PPDSB (316°) | PPDSB 1800ft PPDSI (5mi, 316°) 1800ft |
| RW32-Z | PPDSC (336°) | PPDSC 1800ft PPDSI (5mi, 29°) 1800ft |
| RNAV | PPDSI 1800ft PPDSF (5mi, 316°) 1760ft YPPD (6mi, 316°) 83ft PPDSH (2mi, 314°) (7007mi, 280°) 1800ft |
