Airports for X-Plane

Perth

Airport details

CountryAustralia
StateWestern Australia
RegionYM
AirspaceMelbourne Ctr
MunicipalityCity Of Swan
Elevation68ft (21m)
TimezoneGMT +8
Coordinates-31.92660, 115.96384
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeYPPH
IATA codePER
FAA coden/a

Communication

Perth Perth ATIS123.800
Perth PERTH CLD118.550
Perth PERTH Ground Control121.700
Perth PERTH Tower120.500
Perth PERTH Approach123.700
Perth PERTH Approach128.100
Perth PERTH Departure118.700

Approach frequencies

ILS-cat-IIIRW21109.518.00mi
ILS-cat-IRW24109.918.00mi
ILS-cat-IRW03110.118.00mi
3° GSRW21109.518.00mi
3° GSRW24109.918.00mi
3° GSRW03110.118.00mi
Nearby Points of Interest:
Bassendean Fire Station
-
Garrick Theatre
-
St Matthew's Church, Guildford
-
Guildford Grammar School Chapel
-
Garratt Road Bridge
-
Maylands Airport
-
Burswood canal
-
Inglewood Post Office
-
Albany Bell Castle
-
Lathlain railway station
-
Bunbury Railway Bridge
-
Statham's Quarry
-
Carlisle railway station
-
East Perth Power Station
-
Victoria Park Post Office
-
Gloucester Park
-
The Causeway
-
ChemCentre
-
Dilhorn House
-
Royal Perth Hospital
-
St John's Pro-Cathedral
-
Archbishop's Palace
-
Perth Trades Hall
-
Swan Barracks
-
Old Perth Fire Station

Runway info

Runway 03 / 21
 length3451m (11322ft)
 bearing16° / 196°
 width46m (151ft)
 surfaceconcrete
 blast zone90m (295ft) / 65m (213ft)
Runway 06 / 24
 length2155m (7070ft)
 bearing63° / 243°
 width46m (151ft)
 surfaceconcrete
 blast zone67m (220ft) / 66m (217ft)

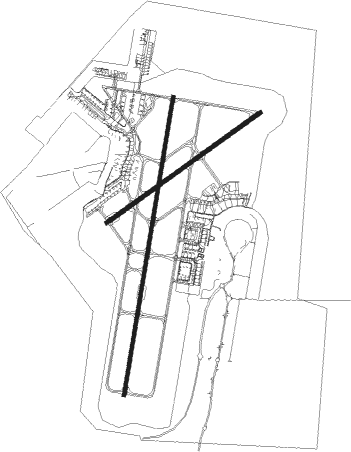

Airport layout


Taxiway locations

 A  B  C  C1  C6  C9  H3  L4
 L5  L7  N  P  S  W  W1  W2
Parking locations

 Gate  Nj1  NJ2  NJ5  NJ6  SA  SA11  SA12
 SA14  SA15  SA17  SA18  SA6  SA8  SA9  Stand

Nearby beacons

codeidentifierdistbearingfrequency
PHPERTH VOR/DME1.1194°113.70
JTJANDAKOT NDB11.2204°281
PEAPEARCE TACAN15.412°112.80
PEAPEARCE NDB16.511°340
GIGGINGIN NDB28.4348°372

Departure and arrival routes

Transition altitude10000ft
Transition level11000ft
SID end pointsdistanceoutbound heading
RW03
 RAVON335mi60°
 AMANA235mi76°
 MUBID1297mi93°
 PIKIL290mi96°
 HECTO2240mi103°
 MEMUP2271mi110°
 YNRV2231mi116°
 SOLUS337mi150°
 MANDU337mi198°
 KEELS5135mi280°
 RANGU8108mi331°
 OTLED367mi347°
 AVNEX367mi355°
RW06
 RAVON335mi60°
 AMANA235mi76°
 MUBID1297mi93°
 PIKIL290mi96°
 HECTO2240mi103°
 MEMUP2271mi110°
 YNRV2231mi116°
 SOLUS337mi150°
 MANDU337mi198°
 KEELS5135mi280°
 RANGU8108mi331°
 OTLED367mi347°
 AVNEX367mi355°
RW21
 RAVON335mi60°
 AMANA235mi76°
 MUBID1297mi93°
 HECTO2240mi103°
 MEMUP2271mi110°
 YNRV2231mi116°
 PUMRY368mi125°
 SOLUS337mi150°
 MANDU337mi198°
 KEELS5135mi280°
 OTKUN1108mi331°
 OTLED367mi347°
 AVNEX367mi355°
RW24
 RAVON335mi60°
 AMANA235mi76°
 MUBID1297mi93°
 HECTO2240mi103°
 MEMUP2271mi110°
 YNRV2231mi116°
 PUMRY368mi125°
 SOLUS337mi150°
 MANDU337mi198°
 KEELS5135mi280°
 OTKUN1108mi331°
 OTLED367mi347°
 AVNEX367mi355°

STAR starting pointsdistanceinbound heading
RW03
 WAVE3A22.497°
 JULI5A, JULI5X34.9213°
 CONI4A, CONI4X35.0225°
 GREN5A, GREN5X49.6268°
 CONI4V, JULI5V12.7278°
 BEVL5A, BEVL5X50.0285°
 GREN5V16.2295°
 DAYL4A, DAYL4X36.4300°
 BEVL5V17.3301°
 DAYL4V18.1308°
 SOLU2V18.6326°
 SOLU2X, SOLU2A36.9330°
RW06
 WAVE3A22.497°
 JULI5A34.9213°
 CONI4A35.0225°
 GREN5A49.6268°
 CONI4V, JULI5V12.7278°
 BEVL5A50.0285°
 GREN5V16.2295°
 DAYL4A36.4300°
 BEVL5V17.3301°
 DAYL4V18.1308°
 SOLU2V18.6326°
 SOLU2A36.9330°
RW21
 WAVE3A22.497°
 JULI5A34.9213°
 CONI4A35.0225°
 GREN5A49.6268°
 BEVL5A50.0285°
 SOLU2A36.9330°
RW24
 WAVE3A22.497°
 JULI5A34.9213°
 CONI4A35.0225°
 GREN5A49.6268°
 BEVL5A50.0285°
 SOLU2A36.9330°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW21-ZKOORI (246°)KOORI 3000ft
HAIGH (7mi, 298°) 2620ft
RW21-ZPERND (165°)PERND 3000ft
HAIGH (4mi, 93°) 2620ft
RW21-ZWOOFY (115°)WOOFY 3000ft
PERND (7mi, 61°) 3000ft
HAIGH (4mi, 93°) 2620ft
 RNAVHAIGH 2620ft
PERNF (4mi, 196°) 1350ft
PERNM (4mi, 196°) 179ft
(6716mi, 285°) 2000ft
(turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BEVL5ABEVLYVHFleft107 (287)°< 60000ft1.0min timedICAO rules
BEVL5VBEVLYVHFleft107 (287)°< 60000ft1.0min timedICAO rules
BEVL5XBEVLYVHFleft107 (287)°< 60000ft1.0min timedICAO rules
DAYL4AHAMTNVHFright107 (287)°20000ft - 60000ft1.5min timedICAO rules
GREN5AGRENEVHFleft87 (267)°< 20000ft1.0min timedICAO rules
GREN5VGRENEVHFleft87 (267)°< 20000ft1.0min timedICAO rules
GREN5XGRENEVHFleft87 (267)°< 20000ft1.0min timedICAO rules
SOLU2ASOLUSVHFright155 (335)°< 20000ft1.0min timedICAO rules
SOLU2VSOLUSVHFright155 (335)°< 20000ft1.0min timedICAO rules
SOLU2XSOLUSVHFright155 (335)°< 20000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
