Airports for X-Plane

White Cliffs

Airport details

CountryAustralia
StateNew South Wales
RegionYM
AirspaceMelbourne Ctr
MunicipalityWhite Cliffs
Elevation536ft (163m)
TimezoneGMT +11
Coordinates-30.85188, 143.07346
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeYWHC
IATA coden/a
FAA coden/a

Communication

White Cliffs CTAF126.700

Runway info

Runway 12 / 30
 length1079m (3540ft)
 bearing122° / 302°
 width18m (59ft)
 surfaceasphalt
Runway 02 / 20
 length869m (2851ft)
 bearing34° / 214°
 width30m (98ft)
 surfacedirt

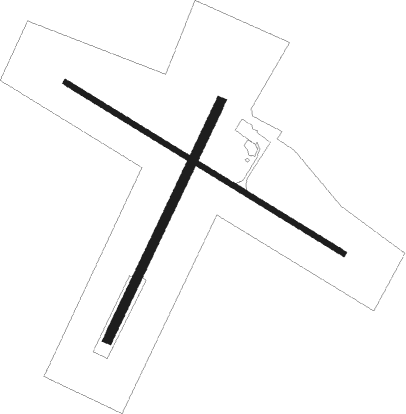

Airport layout


Parking locations

 GA  RPT

Departure and arrival routes

Transition altitude10000ft
Transition level11000ft
SID end pointsdistanceoutbound heading
RW12
 WHITE143mi156°
RW30
 WHITE143mi156°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12WHCWD (143°)WHCWD 2600ft
WHCWI (5mi, 199°) 2600ft
RW12WHCWE (122°)WHCWE 2600ft
WHCWI (5mi, 122°) 2600ft
RW12WHCWG (103°)WHCWG 2600ft
WHCWI (5mi, 60°) 2600ft
 RNAVWHCWI 2600ft
WHCWF (5mi, 122°) 2160ft
WHCWM (5mi, 122°) 562ft
WHCWH (3mi, 122°)
(8009mi, 282°) 2100ft
RW30WHCEA (283°)WHCEA 2200ft
WHCEI (5mi, 240°) 2200ft
RW30WHCEB (302°)WHCEB 2200ft
WHCEI (5mi, 302°) 2200ft
RW30WHCEC (324°)WHCEC 2200ft
WHCEI (5mi, 18°) 2200ft
 RNAVWHCEI 2200ft
WHCEF (5mi, 302°) 2170ft
WHCEM (5mi, 302°) 586ft
WHCEH (3mi, 302°)
(8007mi, 282°) 2600ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
