Airports for X-Plane

Guangzhou (canton) - Guangzhou Baiyun Intl

Airport details

CountryChina
StateGuangdong Province
RegionZG
AirspaceGuangzhou Ctr
MunicipalityHuadu
Elevation45ft (14m)
TimezoneGMT +8
Coordinates23.39333, 113.30833
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZGGG
IATA codeCAN
FAA coden/a

Communication

Guangzhou Baiyun Intl ATIS ARRIVAL128.600
Guangzhou Baiyun Intl ATIS DepartureARTURE127.000
Guangzhou Baiyun Intl DELIVERY121.950
Guangzhou Baiyun Intl Ground Control EAST121.750
Guangzhou Baiyun Intl Ground Control WEST121.850
Guangzhou Baiyun Intl Tower 02R/20L118.250
Guangzhou Baiyun Intl Tower 01/19118.800
Guangzhou Baiyun Intl Tower 02L/20R118.100
Guangzhou Baiyun Intl GUANGZHOU126.350
Guangzhou Baiyun Intl GUANGZHOU ARRIVAL126.550
Guangzhou Baiyun Intl GUANGZHOU120.400
Guangzhou Baiyun Intl GUANGZHOU119.700

Approach frequencies

ILS-cat-IRW20L111.918.00mi
ILS-cat-IRW19111.518.00mi
ILS-cat-IRW01109.318.00mi
ILS-cat-IRW02R108.518.00mi
ILS-cat-IRW02L110.3518.00mi
ILS-cat-IRW20R110.7518.00mi
3° GSRW20L111.918.00mi
3° GSRW20R110.7518.00mi
3° GSRW02L110.3518.00mi
3° GSRW19111.518.00mi
3° GSRW02R108.518.00mi
3° GSRW01109.318.00mi
Nearby Points of Interest:
Site of the Third National Congress of the Communist Party of China
-
Shamian Subdistrict, Guangzhou
-
Two tombs from the time of the Southern Han Empire
-
Qing Hui Yuan
-
South Bridge of Canton-Kowloon Railway in Shilong

Runway info

Runway 02R / 20L
 length3815m (12516ft)
 bearing15° / 195°
 width60m (197ft)
 surfaceconcrete
 blast zone118m (387ft) / 119m (390ft)
Runway 02L / 20R
 length3811m (12503ft)
 bearing15° / 195°
 width60m (197ft)
 surfaceconcrete
 displ threshold0m (0ft) / 200m (656ft)
 blast zone119m (390ft) / 121m (397ft)
Runway 01 / 19
 length3614m (11857ft)
 bearing15° / 195°
 width45m (148ft)
 surfaceconcrete
 blast zone121m (397ft) / 119m (390ft)

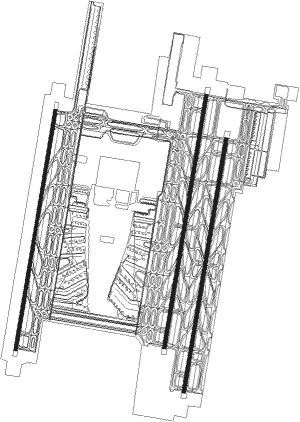

Airport layout


Taxiway locations

 A  A1  A10  A2  A3  A4  A5  A6
 A7  A8  A9  B  C  C1  C4  D
 D4  E  F  F1  F10  F2  F3  F4
 F5  F6  F7  F8  F9  J10  J11  J12
 J14  J18  J20  J21  J6  J7  J8  J9
 L5  L6  M  M1  M3  M4  M5  M6
 M7  M8  M9  P1  P10  P11  P12  P13
 P14  P2  P3  P4  P5  P6  P7  P8
 P9  Q  Q15  Q6  Q8  Q9  T1  T2
 T3  T4  Y  Y1  Y10  Y11  Y12  Y13
 Y14  Y15  Y16  Y17  Y18  Y19  Y2  Y3
 Y4  Y5  Y6  Y7  Y8  Y9
Parking locations

 256  257  258  259  261  263  264  266
 267  268  269  270  271  272  273  274
 275  276  277  278  309  310  311  312
 313  432  433  434  435  436  437  Cargo
 Gate_101  Gate_102  Gate_103  Gate_104  Gate_105  Gate_106  Gate_107  Gate_108
 Gate_109  Gate_110  Gate_111  Gate_114  Gate_115  Gate_116  Gate_117  Gate_118
 Gate_119  Gate_120  Gate_121  Gate_122  Gate_123  Gate_124  Gate_125  Gate_126
 Gate_127  Gate_128  Gate_129  Gate_130  Gate_131  Gate_132  Gate_133  Gate_135
 Gate_136  Gate_137  Gate_138  Gate_139  Gate_140  Gate_201  Gate_202  Gate_203
 Gate_204  Gate_205  Gate_206  Gate_207  Gate_208  Gate_209  Gate_210  Gate_211
 Gate_212  Gate_213  Gate_214  Gate_215  Gate_216  Gate_217  Gate_218  Gate_219
 Gate_220  Gate_221  Gate_222  Gate_223  Gate_224  Gate_225  Gate_226  Gate_227
 Gate_229  Gate_230  Gate_231  Gate_232  Gate_233  Gate_234  Gate_236  Gate_237
 Gate_238  Gate_239  Gate_240  Gate_301  Gate_302  Gate_303  Gate_304  Gate_305
 Gate_306  Gate_307  Gate_308  Gate_F_1  Gate_F_10  Gate_F_11  Gate_F_12  Gate_F_13
 Gate_F_14  Gate_F_15  Gate_F_16  Gate_F_17  Gate_F_18  Gate_F_19  Gate_F_2  Gate_F_20
 Gate_F_21  Gate_F_22  Gate_F_23  Gate_F_24  Gate_F_26  Gate_F_28  Gate_F_3  Gate_F_4
 Gate_F_5  Gate_F_6  Gate_F_7  Gate_F_8  Gate_F_9  GY01  GY02  GY03
 GY04  GY05  GY06  GY07  GY08  GY09  GY10  GY11
 GY12  Ramp_401  Ramp_402  Ramp_403  Ramp_404  Ramp_405  Ramp_406  Ramp_407
 Ramp_408  Ramp_409  Ramp_410  Ramp_411  Ramp_412  Ramp_413  Ramp_414  Ramp_415
 Ramp_416  Ramp_417  Ramp_418  Ramp_419  Ramp_420  Ramp_421  Ramp_422  Ramp_423
 Ramp_424  Ramp_425  Ramp_426  Ramp_427  Ramp_428  Ramp_429  Ramp_701  Ramp_702
 Ramp_703  Ramp_704

Nearby beacons

codeidentifierdistbearingfrequency
CENCENCUN VOR/DME15.6156°114.60
FOGUANGZHOU NDB15.7195°410
TANYUANTAN VOR/DME16.9346°112.50
CONCONGHUA VOR/DME19.255°113
POUPINGZHOU VOR/DME23.2198°114.10
SHLSHILONG VOR/DME34.9119°115.70
YINYINGDE VOR/DME48.28°113.50
GYAGAOYAO VOR/DME49.3249°116.50
NLGNANLANG VOR/DME53.6164°117.70
GLNGUANLAN VOR/DME57.4133°112
SHKSHEKOU VOR/DME63.1146°115.90
WYNWENGYUAN VOR/DME72.440°113.90

Departure and arrival routes

Transition altitude8858ft
SID end pointsdistanceoutbound heading
RW01
 YIN1A, YIN1X, YIN86D48mi8°
 LMN1A, LMN86D58mi76°
 SARE1G, SARE1A, SAR88D, SAR87D32mi161°
 VIBO1G, VIBO1A, VIB88D, VIB87D46mi179°
RW02L
 YIN81D, YIN1Y, YIN1C48mi8°
 LMN81D, LMN1C58mi76°
 SARE1J, SARE1C, SAR81D32mi161°
 VIBO1J, VIBO1C, VIB81D46mi179°
RW02R
 YIN84D, YIN1Z, YIN1E48mi8°
 LMN1E, LMN84D58mi76°
 SARE1E, SAR84D, SARE1L32mi161°
 VIBO1L, VIBO1E, VIB84D46mi179°
RW19
 YIN98D, YIN97D, YIN1B, YIN1H48mi8°
 LMN96D, LMN1B58mi76°
 SARE1B, SAR96D32mi161°
 VIB96D, VIBO1B46mi179°
RW20L
 YIN1M, YIN94D, YIN1F48mi8°
 LMN94D, LMN1F58mi76°
 SAR94D, SARE1F32mi161°
 VIBO1F, VIB94D46mi179°
RW20R
 YIN91D, YIN1K, YIN1D48mi8°
 LMN1D, LMN91D58mi76°
 SARE1D, SAR91D32mi161°
 VIBO1D, VIB91D46mi179°

STAR starting pointsdistanceinbound heading
RW01
 GYA82A30.553°
 GYA1A, GYA1Z37.561°
 IRTA1P, IRTA1M63.4203°
 OLPA1P, OLPA1M64.7233°
 IGO81A, ATA81A11.1270°
 IDU81A24.5309°
 IGON1A, ATAG1A, IDUM1A14.5350°
RW02 (ALL)
 GYA82A30.553°
 GYA1Z, GYA1A37.561°
 IRTA1P, IRTA1M63.4203°
 OLPA1P, OLPA1M64.7233°
 ATA81A, IGO81A11.1270°
 IDU81A24.5309°
 IGON1A, IDUM1A, ATAG1A14.5350°
RW19
 GYA1D18.7169°
 ATAG1D36.6193°
 ATA91A40.7210°
 GYA1B, IDUM1B18.0215°
 IGON1B27.0230°
 IGO91A41.3233°
 GYA92A, IDU91A10.5281°
RW20 (ALL)
 GYA1D18.7169°
 ATAG1D36.6193°
 ATA91A40.7210°
 GYA1B, IDUM1B18.0215°
 IGON1B27.0230°
 IGO91A41.3233°
 IDU91A, GYA92A10.5281°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ATA81ACENNDBleft22 (202)°6890ft - 8860ftDME 5.5mi205
ATA91AFOGNGVHFleft52 (232)°5910ft - 7880ft1.0min timed205
GYA1AGG443VHFright273 (93)°> 6890ft1.0min timed205
GYA1BGG443VHFright273 (93)°> 6890ft1.0min timed205
GYA1DGG443VHFright273 (93)°> 6890ft1.0min timed205
GYA92ACONNDBright155 (335)°4930ft - 7880ft1.0min timed205
GYA93ATANNDBleft196 (16)°4930ft - 7880ft1.0min timed205
IDU81ACENNDBleft22 (202)°6890ft - 8860ftDME 5.5mi205
IDU91ACONNDBright155 (335)°4930ft - 7880ft1.0min timed205
IDUM1AGG444VHFright132 (312)°> 6890ft1.0min timed205
IDUM1BGG444VHFright132 (312)°> 6890ft1.0min timed205
IGO81ACENNDBleft22 (202)°6890ft - 8860ftDME 5.5mi205
IGO91ACONNDBright155 (335)°4930ft - 7880ft1.0min timed205
IGON1AGG442VHFright49 (229)°> 6890ft1.0min timedICAO rules
IGON1BGG542VHFright33 (213)°> 6890ft1.0min timed205
IGON1CGG442VHFright49 (229)°> 6890ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
