Airports for X-Plane

Guilin City - Liangjiang

Airport details

CountryChina
StateGuangxi
RegionZG
AirspaceGuangzhou Ctr
MunicipalityGuilin
Elevation568ft (173m)
TimezoneGMT +8
Coordinates25.21667, 110.03833
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZGKL
IATA codeKWL
FAA coden/a

Communication

Liangjiang ATIS126.450
Liangjiang Ground Control121.650
Liangjiang Tower130.000
Liangjiang Tower118.000

Approach frequencies

ILS-cat-IRW01110.118.00mi
ILS-cat-IRW19108.518.00mi
3° GSRW01110.118.00mi
3° GSRW19108.518.00mi
Nearby Points of Interest:
Jingjiang Princes' City
-
Zengpiyan
-
Nine Horses residences
-
Guilin Office of the Eighth Route Army

Runway info

Runway 01 / 19
 length3212m (10538ft)
 bearing5° / 185°
 width45m (148ft)
 surfaceconcrete
 blast zone122m (400ft) / 118m (387ft)

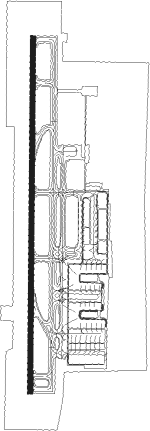

Airport layout


Taxiway locations

 A  A1  A2  A4  A5  A7  A9  T11
 T9
Parking locations

 10  101  101R  11  12  13  14  15
 16  17  18  19  20  201  202  203
 204  205  206  207  207L  207R  208  209
 210  211  212  214  215  216  217  218
 218L  218R  219  220  221  222  223  224
 225  226  227  228  229  230  231  3
 5  6  7  8  9  Guilin

Nearby beacons

codeidentifierdistbearingfrequency
KWLGUILIN VOR/DME0.3204°114.90
JLIANGJIANG (GUILIN) NDB1.3183°316
PLIANGJIANG (GUILIN) NDB1.57°330
PAWUTONG NDB11.37°286
JWYONGFU NDB12.5186°281
YQIFENGLING NDB15.499°417
VQDARONGJIANG NDB31.552°398
SJGSANJIANG VOR/DME40.8323°116.80
QPERTANG NDB51.9127°213

Departure and arrival routes

Transition altitude9800ft
Transition level11800ft
SID end pointsdistanceoutbound heading
RW01
 ONE9Y, ONE8Y, ONE2Y, ONE1Y45mi47°
 QP1Y, QP8Y, QP9Y52mi127°
 LBN9Y, LBN8Y, LBN1Y100mi212°
 SJG9Y, SJG1Y41mi323°
RW19
 ONE1Z, ONE8Z, ONE9Z45mi47°
 QP9Z, QP8Z, QP1Z52mi127°
 LBN9Z, LBN1Z100mi212°
 SJG1Z, SJG2Z, SJG8Z, SJG9Z41mi323°

STAR starting pointsdistanceinbound heading
RW01
 LBN1W, LBN9W99.932°
 SJG9W, SJG8W, SJG2W, SJG1W40.8143°
 ONE7W, ONE1W, ONE2W, ONE6W, ONE8W, ONE9W44.5227°
 QP9W, QP8W, QP7W, QP1W51.9307°
RW19
 LBN9X, LBN8X, LBN2X, LBN1X99.932°
 SJG9X, SJG8X, SJG1X40.8143°
 ONE1X, ONE2X, ONE8X, ONE9X44.5227°
 QP9X, QP8X, QP2X, QP1X51.9307°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
LBN1WKWLNDBleft198 (18)°> 5910ft1.0min timed205
LBN1XD343SVHFleft267 (87)°> 7880ft1.0min timed205
LBN1XKWLNDBleft198 (18)°> 5910ft1.0min timed205
LBN2XKWLNDBleft198 (18)°> 5910ft1.0min timed205
LBN8XKL508VHFright97 (277)°> 6890ft1.0min timed205
LBN9XKL513VHFright187 (7)°> 7880ft1.0min timed205
ONE1WKWLNDBleft198 (18)°> 5910ft1.0min timed205
ONE1XD343SVHFleft267 (87)°> 7880ft1.0min timed205
ONE1XKWLNDBleft198 (18)°> 5910ft1.0min timed205
ONE2WKWLNDBleft198 (18)°> 5910ft1.0min timed205
ONE6WKL412VHFright7 (187)°> 5910ft1.0min timed205
ONE7WKL412VHFright7 (187)°> 5910ft1.0min timed205
ONE8WKL406VHFleft7 (187)°> 6890ft1.0min timed205
ONE8WKL413VHFleft346 (166)°> 11800ft1.0min timedICAO rules
ONE8XKL508VHFright97 (277)°> 6890ft1.0min timed205
ONE9WKL412VHFright7 (187)°> 5910ft1.0min timed205
ONE9WKL413VHFleft346 (166)°> 11800ft1.0min timedICAO rules
ONE9XKL413VHFleft346 (166)°> 11800ft1.0min timedICAO rules
ONE9XKL513VHFright187 (7)°> 7880ft1.0min timed205
QP1WKWLNDBleft198 (18)°> 5910ft1.0min timed205
QP1XD343SVHFleft267 (87)°> 7880ft1.0min timed205
QP1XKWLNDBleft198 (18)°> 5910ft1.0min timed205
QP2XKWLNDBleft198 (18)°> 5910ft1.0min timed205
QP8WKL406VHFleft7 (187)°> 6890ft1.0min timed205
QP8XKL508VHFright97 (277)°> 6890ft1.0min timed205
QP9WKL412VHFright7 (187)°> 5910ft1.0min timed205
QP9XKL513VHFright187 (7)°> 7880ft1.0min timed205
SJG1WKWLNDBleft198 (18)°> 5910ft1.0min timed205
SJG1XD343SVHFleft267 (87)°> 7880ft1.0min timed205
SJG2WKWLNDBleft198 (18)°> 5910ft1.0min timed205
SJG8WKL406VHFleft7 (187)°> 6890ft1.0min timed205
SJG9WKL406VHFleft7 (187)°> 6890ft1.0min timed205
*) magnetic outbound (inbound) holding course
