Airports for X-Plane

Xining - Xining Caojiabao

Airport details

CountryChina
StateQinghai
RegionZL
AirspaceLanzhou Ctr
MunicipalityHuzhu Tu Autonomous County
Elevation7122ft (2171m)
TimezoneGMT +8
Coordinates36.52667, 102.04166
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZLXN
IATA codeXNN
FAA coden/a

Communication

No airport communication available for ZLXN

Approach frequencies

ILS-cat-IRW11110.718.00mi
ILS-cat-IRW29108.718.00mi
3° GSRW11110.718.00mi
3° GSRW29108.718.00mi

Runway info

Runway 11 / 29
 length3795m (12451ft)
 bearing106° / 286°
 width46m (151ft)
 surfaceasphalt
 blast zone60m (197ft) / 60m (197ft)

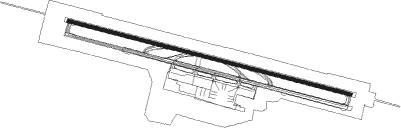

Airport layout


Taxiway locations

 A
Parking locations

 Xining

Nearby beacons

codeidentifierdistbearingfrequency
XNNXINING VOR/DME0.5278°116.50
LEDLEDU VOR/DME2280°112.20

Departure and arrival routes

Transition altitude15748ft
Transition level17717ft
SID end pointsdistanceoutbound heading
RW11
 UPV08D, UPV01D40mi97°
RW29
 UPV11D, UPV12D, UPV18D, UPV19D40mi97°

STAR starting pointsdistanceinbound heading
RW11
 UPV01A, UPV02A, UPV08A39.8277°
RW29
 UPV11A, UPV12A, UPV19A39.8277°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
UPV01AXNNNDBleft127 (307)°> 14770ft1.5min timed205
UPV02AD334QVHFright57 (237)°> 15750ft1.5min timed205
UPV02ALEDNDBleft32 (212)°> 14770ft1.5min timed205
UPV08ALEDNDBleft32 (212)°> 14770ft1.5min timed205
UPV08AXN820VHFright63 (243)°> 15750ft1.5min timedICAO rules
UPV12ALEDNDBleft32 (212)°> 14770ft1.5min timed205
UPV19AXN705VHFleft92 (272)°> 14770ft1.5min timedICAO rules
*) magnetic outbound (inbound) holding course
