Airports for X-Plane

Xianyang - Xi'an Xianyang Intl

Airport details

CountryChina
StateShaanxi
RegionZL
AirspaceLanzhou Ctr
Municipality泾阳县
Elevation1567ft (478m)
TimezoneGMT +8
Coordinates34.44500, 108.75000
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZLXY
IATA codeXIY
FAA coden/a

Communication

Xi'an Xianyang Intl Xian ATIS Departure128.650
Xi'an Xianyang Intl Xian ATIS Arrival127.450
Xi'an Xianyang Intl Xian Delivery121.600
Xi'an Xianyang Intl Xian Ground North121.800
Xi'an Xianyang Intl Xian Ground South121.650
Xi'an Xianyang Intl Xian Twr South130.450
Xi'an Xianyang Intl Xian Twr North124.300
Xi'an Xianyang Intl Xian Approach 01125.100
Xi'an Xianyang Intl Xian Approach 03119.600
Xi'an Xianyang Intl Xian Approach 02119.050
Xi'an Xianyang Intl Xian Approach 04119.900
Xi'an Xianyang Intl Xian Approach 05120.200

Approach frequencies

ILS-cat-IIRW23R110.318.00mi
ILS-cat-IIRW05R109.318.00mi
ILS-cat-IRW23L111.118.00mi
ILS-cat-IRW05L109.918.00mi
3° GSRW23L111.118.00mi
3° GSRW05L109.918.00mi
3° GSRW23R110.318.00mi
3° GSRW05R109.318.00mi

Runway info

Runway 05R / 23L
 length3797m (12457ft)
 bearing54° / 234°
 width60m (197ft)
 surfaceconcrete
 blast zone124m (407ft) / 116m (381ft)
Runway 05L / 23R
 length3000m (9843ft)
 bearing54° / 234°
 width45m (148ft)
 surfaceasphalt

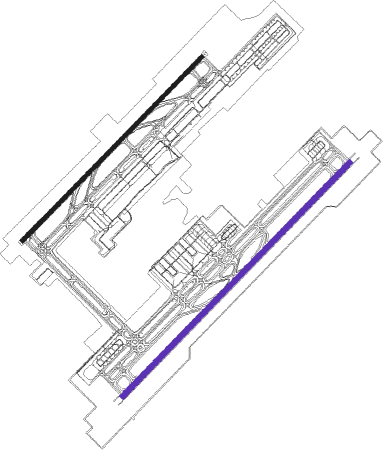

Airport layout - runway 05R / 23L


Taxiway locations

 A  A1  A2  A8  A9  B  B1  B2
 B3  B4  B5  B6  B7  B8  B9  C
 C1  C3  C4  C5  C6  C7  C8  C9
 D  D1  D2  D7  D8  G  G1  G2
 G3  H  T8
Parking locations

 101  102  103  104  105  106  107  108
 109  110  111  112  113  114  115  116
 117  118  119  120  121  122  123  124
 125  126  127  128  129  130  131  132
 133  134  135  136  137  138  139  140
 141  142  143  201  202  203  204  205
 206  207  208  209  210  211  212  213
 214  215  216  217  218  219  220  221
 222  223  224  225  301  302  303  304
 305  306  307  308  309  310  311  312
 313  314  315  316  317  318  319  320
 321  322  401  402  403  404  405  406
 407  408  409  410  411  412  701  702
 703  704  705  706  707  708  709  710
 711  De-Icing  Hainan

Nearby beacons

codeidentifierdistbearingfrequency
GXIANYANG NDB1.2235°327
MXIANYANG (XI'AN) NDB1.654°429
LCZLONGZAOCUN VOR/DME2.181°109
FNHFENGHUO VOR/DME8.8312°113.20
ODSANYUAN NDB12.347°202
ZSYANZHUANG NDB14.3155°359
ZNXZU'AN VOR/DME23.4217°110.80
MIZMIZI VOR/DME25.533°109.60
KLXKOULING VOR/DME26.9110°110.60
HOCHANGWU NDB66.7308°375

Departure and arrival routes

Transition altitude9842ft
Transition level11811ft
SID end pointsdistanceoutbound heading
RW05L
 WJC9W, WJC1Z, WJC11D86mi25°
 NSH9W, NSH8W, NSH12D, NSH11D71mi201°
 TEB11D, TEBI9W69mi317°
RW05R
 WJC31D, WJC1Y, WJC9Z86mi25°
 NSH8Z, NSH32D, NSH31D, NSH9Z71mi201°
 TEB31D, TEBI9Z69mi317°
RW23L
 WJC9Y, WJC41D86mi25°
 NSH42D, NSH8Y, NSH9Y, NSH41D71mi201°
 TEBI9Y, TEB41D69mi317°
RW23R
 WJC21D, WJC9X86mi25°
 NSH9X, NSH22D, NSH21D, NSH8X71mi201°
 TEB21D, TEBI9X69mi317°

STAR starting pointsdistanceinbound heading
RW05 (ALL)
 NSH01A, NSH1W, NSH2W71.121°
 LOVR1W, LOVR2W86.2196°
RW23 (ALL)
 NSH1Y, NSH11A71.121°
 LOVR3Y, LOVR2Y, LOVR1Y86.2196°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
HO01AHOFIXright315 (135)°> 14800ft1.5min timedICAO rules
HO01AXODASVHFright315 (135)°> 8860ft1.0min timedICAO rules
HO02AHOFIXright315 (135)°> 14800ft1.5min timedICAO rules
HO02AXODASVHFright315 (135)°> 8860ft1.0min timedICAO rules
HO11AHOFIXright315 (135)°> 14800ft1.5min timedICAO rules
HO11AXODASVHFright315 (135)°> 8860ft1.0min timedICAO rules
HO1WHOFIXright315 (135)°> 14800ft1.5min timedICAO rules
HO1WXY904VHFright315 (135)°> 8860ft1.0min timedICAO rules
HO1YHOFIXright315 (135)°> 14800ft1.5min timedICAO rules
HO1YXY904VHFright315 (135)°> 8860ft1.0min timedICAO rules
LOVR2WXY904VHFright315 (135)°> 8860ft1.0min timedICAO rules
LOVR3YXY904VHFright315 (135)°> 8860ft1.0min timedICAO rules
NSH01ANSHNDBleft209 (29)°> 14800ft1.5min timedICAO rules
NSH01ANSH27VHFright209 (29)°> 12800ft1.0min timedICAO rules
NSH01AZSFIXleft114 (294)°> 7880ft1.0min timed205
NSH11ANSHNDBleft209 (29)°> 14800ft1.5min timedICAO rules
NSH11ANSH27VHFright209 (29)°> 12800ft1.0min timedICAO rules
NSH11AZSFIXleft114 (294)°> 7880ft1.0min timed205
NSH1WNSHNDBleft209 (29)°> 14800ft1.5min timedICAO rules
NSH1WXY908VHFright209 (29)°> 12800ft1.0min timedICAO rules
NSH1WZSFIXleft114 (294)°> 7880ft1.0min timed205
NSH1YNSHNDBleft209 (29)°> 14800ft1.5min timedICAO rules
NSH1YXY908VHFright209 (29)°> 12800ft1.0min timedICAO rules
NSH1YZSFIXleft114 (294)°> 7880ft1.0min timed205
NSH2WNSHNDBleft209 (29)°> 14800ft1.5min timedICAO rules
*) magnetic outbound (inbound) holding course
