Airports for X-Plane

Jinghong - Xishuangbanna Gasa

Airport details

CountryChina
StateYunnan
RegionZP
AirspaceKunming Ctr
MunicipalityJinghong City
Elevation1812ft (552m)
TimezoneGMT +8
Coordinates21.97500, 100.76167
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZPJH
IATA codeJHG
FAA coden/a

Communication

Xishuangbanna Gasa ATIS126.225
Xishuangbanna Gasa BANNA Tower130.000

Approach frequencies

ILS-cat-IRW16108.518.00mi
ILS-cat-IRW34110.318.00mi
3.5° GSRW16108.518.00mi
3° GSRW34110.318.00mi

Runway info

Runway 16 / 34
 length2403m (7884ft)
 bearing159° / 339°
 width45m (148ft)
 surfaceasphalt

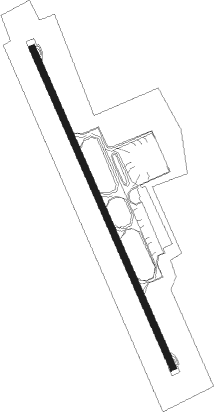

Airport layout


Taxiway locations

 A  A1  A2  A3  A4  T1
Parking locations

 1  2  201  202  203  204  205  206
 207  208  209  210  3  4  5  6

Nearby beacons

codeidentifierdistbearingfrequency
BNNXISHUANGBANNA VOR/DME0.4307°116.30
JHGGANLANBA VOR/DME11.8123°112.50

Departure and arrival routes

Transition altitude11820ft
Transition level13800ft
SID end pointsdistanceoutbound heading
RW16
 SAG01D, SAG81D67mi132°
RW34
 SAG11D, SAG91D67mi132°

STAR starting pointsdistanceinbound heading
RW16
 SAG01A, SAG81A67.2312°
RW34
 SAG11A, SAG91A67.2312°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
SAG01AD339XVHFleft159 (339)°> 8860ft1.0min timedICAO rules
SAG11AJHGNDBright47 (227)°6890ft - 60000ft1.0min timedICAO rules
SAG81AJH808VHFright71 (251)°> 8860ft1.0min timedICAO rules
SAG91AJH904VHFright71 (251)°> 6890ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
