Airports for X-Plane

Weihai - Dashuipo

Airport details

CountryChina
StateShandong
RegionZS
AirspaceShanghai Ctr
MunicipalityWeihai
Elevation145ft (44m)
TimezoneGMT +8
Coordinates37.18833, 122.23000
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeZSWH
IATA codeWEH
FAA coden/a

Communication

Dashuipo ATIS127.050
Dashuipo WEIHAI Tower130.000
Dashuipo WEIHAI Tower118.650

Approach frequencies

ILS-cat-IRW21110.718.00mi
ILS-cat-IRW03110.118.00mi
3° GSRW21110.718.00mi
3° GSRW03110.118.00mi

Runway info

Runway 03 / 21
 length2605m (8547ft)
 bearing23° / 203°
 width45m (148ft)
 surfaceasphalt
 blast zone29m (95ft) / 29m (95ft)

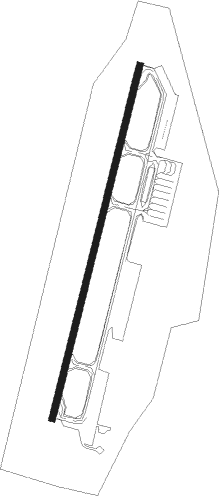

Airport layout


Parking locations

 GA  Terminal

Nearby beacons

codeidentifierdistbearingfrequency
WEHWEIHAI VOR/DME0.3230°115.80

Departure and arrival routes

Transition altitude5069ft
Transition level6890ft
SID end pointsdistanceoutbound heading
RW03
 IKE12D, IKE52X58mi108°
RW21
 IKE11D, IKE51X58mi108°

STAR starting pointsdistanceinbound heading
RW03
 IKE12A, IKE52F58.0288°
RW21
 IKE11A, IKE51F58.0288°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
FZ11AWEHNDBleft7 (187)°> 4050ft1.0min timed215
FZ11AWH111VHFright295 (115)°> 5910ft1.0min timed220
FZ12AWEHNDBleft7 (187)°> 4050ft1.0min timed215
FZ12AWH111VHFright295 (115)°> 5910ft1.0min timed220
FZ51FWEHNDBleft7 (187)°> 4050ft1.0min timed215
FZ51FWH111VHFright295 (115)°> 5910ft1.0min timed220
FZ52FWEHNDBleft7 (187)°> 4050ft1.0min timed215
FZ52FWH111VHFright295 (115)°> 5910ft1.0min timed220
IKE11AWEHNDBleft7 (187)°> 4050ft1.0min timed215
IKE12AWEHNDBleft7 (187)°> 4050ft1.0min timed215
IKE51FWH113VHFleft114 (294)°> 5910ft1.0min timed220
IKE52FWH113VHFleft114 (294)°> 5910ft1.0min timed220
*) magnetic outbound (inbound) holding course
