Airports for X-Plane

Hillsboro - Hillsboro Muni

Airport details

CountryUnited States of America
StateNorth Dakota
RegionK3
AirspaceMinneapolis Ctr
MunicipalityTraill County
Elevation905ft (276m)
TimezoneGMT -6
Coordinates47.35941, -97.06042
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO code3H4
IATA coden/a
FAA code3H4

Communication

Hillsboro Muni CTAF122.900
Hillsboro Muni FARGO Approach/Departure120.400

Runway info

Runway 16 / 34
 length1006m (3301ft)
 bearing166° / 346°
 width18m (60ft)
 surfaceasphalt

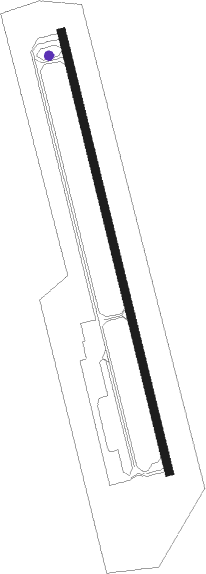

Airport layout - taxiway location A3


Taxiway locations

 A1  A2  A3  A4
Parking locations

 GA

Nearby beacons

codeidentifierdistbearingfrequency
AAKENIE (FARGO) NDB23.3145°365
GFHISER NDB29.6346°345
GFKGRAND FORKS VOR/DME36.1348°114.30
FARFARGO VOR/DME37.3161°116.20
RDRRED RIVER (GRAND FORKS) TACAN38.5330°116.40
TVFTHIEF RIVER FALLS VOR/DME55.351°114.45

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16GEMIH (166°)GEMIH 4000ft
 RNAVGEMIH 4000ft
BEETZ (7mi, 166°) 2600ft
3H4 (5mi, 166°) 951ft
(5692mi, 116°) 1222ft
IKLAJ (5691mi, 296°) 4000ft
IKLAJ (turn) 4000ft
RW34IKLAJ (347°)IKLAJ 4000ft
 RNAVIKLAJ 4000ft
BYSON (7mi, 347°) 2600ft
3H4 (5mi, 346°) 951ft
(5692mi, 116°) 1222ft
GEMIH (5693mi, 296°) 4000ft
GEMIH (turn)

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
