Airports for X-Plane

Ellendale - Ellendale Muni

Airport details

CountryUnited States of America
StateNorth Dakota
RegionK3
AirspaceMinneapolis Ctr
MunicipalityDickey County
Elevation1455ft (443m)
TimezoneGMT -6
Coordinates46.01633, -98.51569
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO code4E7
IATA coden/a
FAA coden/a

Communication

Ellendale Muni AWOA at 2D5118.650
Ellendale Muni CTAF122.900

Runway info

Runway 13 / 31
 length1067m (3501ft)
 bearing131° / 311°
 width18m (60ft)
 surfaceasphalt
Runway 17 / 35
 length798m (2618ft)
 bearing180° / 0°
 width38m (126ft)
 surfacegrass
 blast zone32m (105ft) / 49m (161ft)

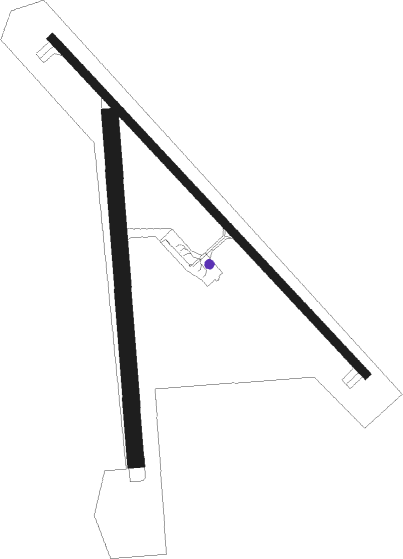

Airport layout - parking location 8


Parking locations

 1  10  2  3  4  5  6  7
 8  9

Nearby beacons

codeidentifierdistbearingfrequency
ABRABERDEEN VOR/DME36.4166°113
ABRENEY (ABERDEEN) NDB38.6163°203
JMSJAMESTOWN VOR/DME55.4350°114.50

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW31WAFTS (311°)WAFTS 3000ft
 RNAVWAFTS 3000ft
YURUY (7mi, 311°) 3000ft
4E7 (5mi, 310°) 1496ft
(5760mi, 115°) 1808ft
SOTHA (5767mi, 295°) 4000ft
SOTHA (turn)
