Narsarsuaq

Airport details

Country	Greenland
State	[Other]
Region	BG
Airspace	Nuuk Ctr
Municipality	Kujalleq
Elevation	107ft (33m)
Timezone	GMT -3
Coordinates	61.16072, -45.42567
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	BGBW
IATA code	UAK
FAA code	n/a

Communication

Narsarsuaq AFIS	119.100
Narsarsuaq AFIS Dep	119.100

Runway info

Runway 06 / 24
	length	1821m (5974ft)
	bearing	60° / 240°
	width	45m (148ft)
	surface	concrete
	blast zone	0m (0ft) / 85m (279ft)

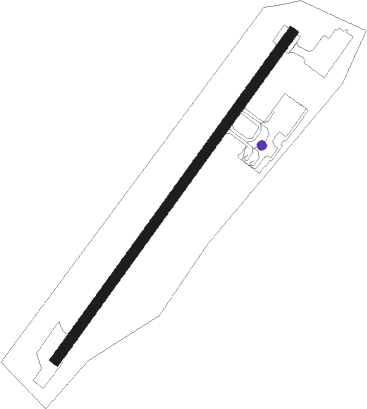

Airport layout - parking location 4

Taxiway locations

Parking locations

1	2	3	4	6	7	8	Cargo
North

Nearby beacons

code	identifier	dist	bearing	frequency
NQ	DME	0.5	91°	111.85
NA	NARSARSUAQ NDB	0.7	52°	359
NS	NARSAQ NDB	23.2	246°	404
JH	JULIANEHAB NDB	31.6	234°	265

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW06-Y	ADMIX (75°)	ADMIX 6500ft 3NMY (3mi, 112°) 5900ft BWI06 (3mi, 112°) 4800ft
RW06-Y	RINUM (60°)	RINUM 6400ft BWI06 (6mi, 60°) 4800ft
RW06-Y	TESGI (28°)	TESGI 7500ft BWI06 (7mi, 292°) 4800ft
	RNAV	BWI06 4800ft BWF06 (6mi, 60°) 3300ft BWM06 (6mi, 60°) 1109ft BW004 (7mi, 269°) BW005 (11mi, 255°) BW006 (7mi, 183°) RINUM (6mi, 100°) 6400ft RINUM (turn) 6400ft
RW06-Z	ELGAG (87°)	ELGAG 5500ft 4NMZ (3mi, 102°) 4500ft BWI47 (4mi, 102°) 3500ft BWF47 (4mi, 88°) 3000ft
	RNAV	BWF47 3000ft BWM47 (4mi, 71°) 1181ft BWT47 (7mi, 266°) (4222mi, 143°) 4900ft ELGAG (4228mi, 323°) ELGAG (turn) 5500ft
RWNVA	GOLUG (241°)	GOLUG 9600ft 064A1 (6mi, 241°) 7300ft BW022 (5mi, 241°) 5600ft
RWNVA	OSMAD (216°)	OSMAD 7500ft 334AT (3mi, 112°) 6200ft BW022 (3mi, 112°) 5600ft
RWNVA	UMSUK (259°)	UMSUK 8000ft 154AT (4mi, 293°) 6700ft BW022 (4mi, 292°) 5600ft
	RNAV	BW022 5600ft BW021 (6mi, 241°) 4300ft BW020 (7mi, 241°) 2250ft BW004 (12mi, 259°) (4222mi, 143°) 4900ft ELGAG (4228mi, 323°) ELGAG (turn) 5500ft
RWNVB	GOLUG (241°)	GOLUG 9600ft 064A1 (6mi, 241°) 7300ft BW022 (5mi, 241°) 5600ft
RWNVB	OSMAD (216°)	OSMAD 7500ft 334AT (3mi, 112°) 6200ft BW022 (3mi, 112°) 5600ft
RWNVB	UMSUK (259°)	UMSUK 8000ft 154AT (4mi, 293°) 6700ft BW022 (4mi, 292°) 5600ft
	RNAV	BW022 5600ft BW021 (6mi, 241°) 4300ft BW020 (7mi, 241°) 3500ft BW004 (12mi, 259°) (4222mi, 143°) 5900ft ELGAG (4228mi, 323°) ELGAG (turn) 6500ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
