Airports for X-Plane

Calgary - Calgary/springbank

Airport details

CountryCanada
StateAlberta
RegionCY
AirspaceEdmonton Ctr
MunicipalityRocky View County
Elevation3938ft (1200m)
TimezoneGMT -7
Coordinates51.10400, -114.37009
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeCYBW
IATA codeYBW
FAA codeYBW

Communication

Calgary/Springbank ATIS127.900
Calgary/Springbank Ground Control121.800
Calgary/Springbank Tower118.200
Calgary/Springbank Departure124.525

Approach frequencies

ILS-cat-IRW35111.718.00mi
3° GSRW35111.718.00mi
Nearby Points of Interest:
Hart House
-
Mewata Armouries
-
Centre Street Bridge
-
Burns Building
-
St. Patrick's Roman Catholic Church

Runway info

Runway 08 / 26
 length1044m (3425ft)
 bearing90° / 270°
 width30m (100ft)
 surfaceasphalt
Runway 17 / 35
 length1525m (5003ft)
 bearing180° / 0°
 width30m (98ft)
 surfaceasphalt

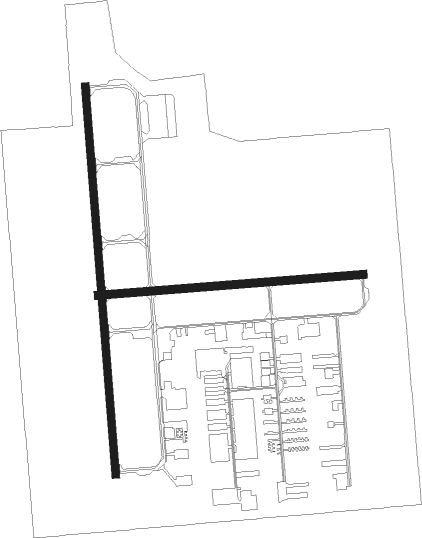

Airport layout


Taxiway locations

 A  A1  A2  C  D
Parking locations

 GA  Grass  Helo

Nearby beacons

codeidentifierdistbearingfrequency
YYCCALGARY VOR/DME18.489°116.70
K2OLDS-DIDSBURY NDB37.723°376
9GSUNDRE NDB42.2335°405

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW08
 CYBW310mi183°
RW17
 CYBW310mi183°
RW26
 CYBW310mi183°
RW35
 CYBW310mi183°

STAR starting pointsdistanceinbound heading
RW17
 BRAGG426.136°
 KIPEV321.7154°
 MADYN223.8195°
 ELBOW317.7352°
RW35
 BRAGG426.136°
 KIPEV321.7154°
 MADYN223.8195°
 ELBOW317.7352°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW17HEMPP (150°)HEMPP
MEGMO (16mi, 133°) 6000ft
RW17OTSEN (212°)OTSEN
MEGMO (5mi, 270°) 6000ft
RW17RIGOT (43°)RIGOT
NOSAB (23mi, 360°) 7000ft
MEGMO (6mi, 90°) 6000ft
 RNAVMEGMO 6000ft
KEMKO (5mi, 180°) 6000ft
LOPSI (3mi, 180°) 5030ft
CYBW (4mi, 172°) 3980ft
(6307mi, 114°) 4400ft
RIGOT (6316mi, 294°) 7000ft
RIGOT (turn)
RW35LOBTA (325°)LOBTA
SEKEM (5mi, 270°) 6000ft
RW35RIGOT (43°)RIGOT
SEKEM (6mi, 90°) 6000ft
 RNAVSEKEM 6000ft
XUBUM (4mi, 360°) 5970ft
TARTI (2mi, 360°) 5300ft
CYBW (4mi, 7°) 3985ft
(6307mi, 114°) 4400ft
RIGOT (6316mi, 294°) 7000ft
RIGOT (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BRAGG4PIBSOVHFright236 (56)°1.0min timedICAO rules
ELBOW3EBGALVHFright120 (300)°> 18000ft1.5min timedICAO rules
ELBOW3MOBEKVHFright120 (300)°1.0min timedICAO rules
KIPEV3ADVOXVHFleft310 (130)°14001ft - 22000ft1.5min timed230
MADYN2BIRKOVHFright56 (236)°10000ft - 21000ft1.5min timedICAO rules
MADYN2PIKLAVHFright56 (236)°5200ft - 30000ft1.5min timedICAO rules
*) magnetic outbound (inbound) holding course
