Airports for X-Plane

Lourdes-de-blanc-sablon

Airport details

CountryCanada
StateQuebec
RegionCY
AirspaceMontreal Ctr
MunicipalityBlanc-Sablon
Elevation122ft (37m)
TimezoneGMT -4
Coordinates51.44205, -57.18612
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeCYBX
IATA codeYBX
FAA coden/a

Communication

Lourdes-de-Blanc-Sablon Mont-Jolie rdo122.150

Approach frequencies

LOCRW05109.118.00mi
Nearby Points of Interest:
L'Anse Amour archeological site

Runway info

Runway 05 / 23
 length1373m (4505ft)
 bearing40° / 220°
 width46m (150ft)
 surfaceasphalt

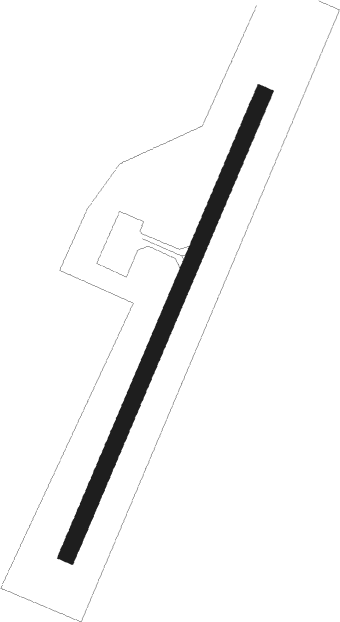

Airport layout


Parking locations

 Ramp1  Ramp2  Ramp3

Nearby beacons

codeidentifierdistbearingfrequency
BXBLANC-SABLON NDB1.3219°220

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05EMGUR (64°)EMGUR
XEXAT (5mi, 108°) 2000ft
RW05IRDUB (4°)IRDUB
XEXAT (5mi, 288°) 2000ft
 RNAVXEXAT 2000ft
VOGUM (6mi, 40°) 1500ft
CYBX (5mi, 40°) 129ft
OTAVO (5mi, 40°) 2900ft
OTAVO (turn)
RW23APGAV (243°)APGAV
LITSA (5mi, 288°) 2400ft
RW23OMPIR (187°)OMPIR
LITSA (5mi, 108°) 2400ft
 RNAVLITSA 2400ft
EPSEM (6mi, 220°) 2000ft
KESKU (2mi, 220°) 1360ft
XOTOD (1mi, 220°) 910ft
CYBX (2mi, 220°) 172ft
VIVUK (5mi, 220°) 2900ft
VIVUK (turn)
