Airports for X-Plane

Chatham-kent - Chatham Kent

Airport details

CountryCanada
StateOntario
RegionCY
AirspaceCleveland Ctr
MunicipalityChatham
Elevation647ft (197m)
TimezoneGMT -5
Coordinates42.30623, -82.08175
Magnetic var
Typeland
Available sinceX-Plane v10.45
ICAO codeCYCK
IATA codeXCM
FAA coden/a

Communication

Chatham Kent CTAF/UNICOM123.200

Runway info

Runway 06 / 24
 length1679m (5509ft)
 bearing56° / 236°
 width23m (75ft)
 surfaceasphalt
 displ threshold152m (499ft) / 153m (502ft)

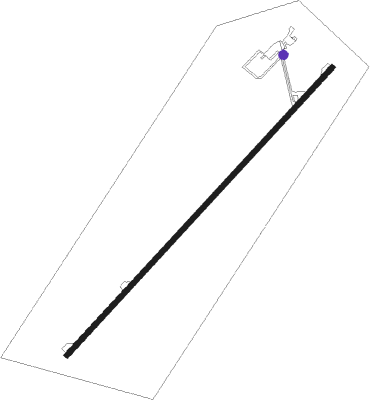

Airport layout - taxiway location A


Taxiway locations

 A
Parking locations

 Ramp

Nearby beacons

codeidentifierdistbearingfrequency
QGWINDSOR NDB34.9270°353
MTCSELFRIDGE (MOUNT CLEMENS) TACAN37.9292°133.70
PHPHURN (PORT HURON) NDB39.4316°332
LQLLAKELAND (WILLOUGHBY) NDB48.8132°263
BFTABEY (CLEVELAND) NDB49.7145°248
DJBDRYER VOR/DME57185°113.60
PCWPORT CLINTON NDB58.9225°423
YXULONDON VOR/DME60.252°117.20
CXRCHARDON VOR/DME62.7131°112.70
ECKPECK TACAN63.5326°114

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06-YPEMDO (82°)PEMDO
IGRUM (6mi, 129°) 2200ft
RW06-YSAXOG (20°)SAXOG
IGRUM (6mi, 309°) 2100ft
 RNAVIGRUM 2100ft
ALSOS (5mi, 56°) 2000ft
CYCK (4mi, 56°) 693ft
EBMUR (9mi, 56°) 2400ft
EBMUR (turn)
RW06-ZEBDEN (77°)EBDEN
IKLUR (5mi, 129°) 2200ft
RW06-ZOMVID (28°)OMVID
IKLUR (5mi, 309°) 2100ft
 RNAVIKLUR 2100ft
AVSEL (6mi, 55°) 1700ft
MUSVO (2mi, 56°) 1300ft
MIXIV (2mi, 56°) 724ft
XEVAX (9mi, 56°) 2700ft
XEVAX (turn) 2700ft
RW24-YSINVI (263°)SINVI
NOREG (6mi, 309°) 2200ft
RW24-YURTUL (199°)URTUL
NOREG (6mi, 129°) 2200ft
 RNAVNOREG 2200ft
DANAB (5mi, 236°) 2000ft
CYCK (4mi, 236°) 695ft
XEPUX (9mi, 236°) 2400ft
XEPUX (turn)
RW24-ZRABOV (208°)RABOV
OTSAR (5mi, 129°) 2200ft
RW24-ZUDKEL (257°)UDKEL
OTSAR (5mi, 309°) 2200ft
 RNAVOTSAR 2200ft
TOBOX (6mi, 236°) 1970ft
EBGAR (2mi, 236°) 1460ft
ALERO (2mi, 236°) 855ft
XEPUX (9mi, 236°) 2400ft
XEPUX (turn) 2400ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
