Airports for X-Plane

Gillam

Airport details

CountryCanada
StateManitoba
RegionCY
AirspaceWinnipeg Ctr
MunicipalityGillam
Elevation476ft (145m)
TimezoneGMT -6
Coordinates56.35772, -94.71070
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeCYGX
IATA codeYGX
FAA coden/a

Communication

Gillam MF122.100

Runway info

Runway 05 / 23
 length1574m (5164ft)
 bearing63° / 243°
 width46m (150ft)
 surfacegravel

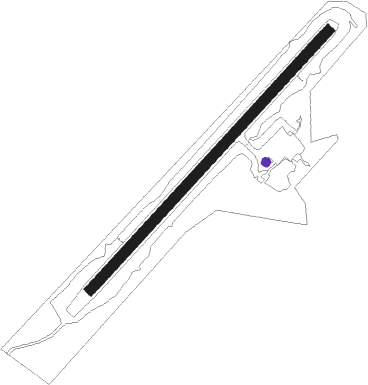

Airport layout - parking location Gate


Parking locations

 Gate  Tie-down

Nearby beacons

codeidentifierdistbearingfrequency
GXDME0.294°114.40
YGXGILLAM NDB0.4113°212

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05ODBEM (80°)ODBEM
RIDUB (5mi, 121°) 1800ft
RW05PELVO (35°)PELVO
RIDUB (5mi, 301°) 1800ft
 RNAVRIDUB 1800ft
SATUK (6mi, 63°) 1800ft
CYGX (4mi, 63°) 526ft
UDNOK (5mi, 63°) 2300ft
UDNOK (turn)
RW23SEGEK (215°)SEGEK
UDNUV (5mi, 121°) 1800ft
RW23VEVRO (260°)VEVRO
UDNUV (5mi, 301°) 1800ft
 RNAVUDNUV 1800ft
UKORU (6mi, 243°) 1800ft
CYGX (4mi, 243°) 524ft
AGLEM (5mi, 243°) 2300ft
AGLEM (turn)
