Lethbridge

Airport details

Country	Canada
State	Alberta
Region	CY
Airspace	Edmonton Ctr
Municipality	Lethbridge County
Elevation	3047ft (929m)
Timezone	GMT -7
Coordinates	49.63028, -112.79694
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	CYQL
IATA code	YQL
FAA code	n/a

Communication

Lethbridge AWOS	124.400
Lethbridge MF	121.000
Lethbridge Edm Ctr	132.750

Approach frequencies

ILS-cat-I	RW06	109.5	18.00mi
3° GS	RW06	109.5	18.00mi

Nearby Points of Interest:

Fort Whoop-Up

Michelsen Farmstead

William T. Ogden House

Stirling Agricultural Village

Empress Theatre

Runway info

Runway 05 / 23
	length	1983m (6506ft)
	bearing	77° / 257°
	width	61m (200ft)
	surface	asphalt
Runway 12 / 30
	length	1678m (5505ft)
	bearing	128° / 308°
	width	46m (150ft)
	surface	asphalt

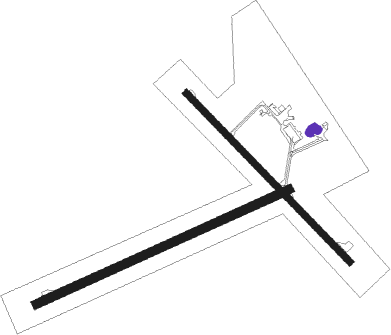

Airport layout - parking location Air

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
QL	LETHBRIDGE NDB	4	256°	248
YQL	LETHBRIDGE VOR/DME	5	88°	115.70
Z7	CLARESHOLM INDUSTRIAL NDB	39.4	294°	408

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW06	DUPIV (91°)	DUPIV AVSOK (6mi, 128°) 4700ft
RW06	MIPUP (59°)	MIPUP AVSOK (6mi, 360°) 4700ft
	RNAV	AVSOK 4700ft BEXUT (6mi, 77°) 4400ft CYQL (5mi, 76°) 3090ft SEPTO (4mi, 78°) 5100ft SEPTO (turn)
RW13	SUTSA (107°)	SUTSA MOGET (5mi, 61°) 4700ft
RW13	UDMUB (159°)	UDMUB MOGET (5mi, 242°) 4700ft
	RNAV	MOGET 4700ft TUKAT (6mi, 128°) 4400ft CYQL (5mi, 130°) 3055ft VIRBI (7mi, 127°) 4800ft VIRBI (turn)
RW24	OLITU (273°)	OLITU NORIG (6mi, 308°) 4400ft
RW24	OMSUS (239°)	OMSUS NORIG (6mi, 181°) 4400ft
	RNAV	NORIG 4400ft VOLOT (6mi, 257°) 4400ft CYQL (4mi, 258°) 3065ft XOVEM (5mi, 256°) 4800ft XOVEM (turn)
RW31	MIPUR (337°)	MIPUR UMABU (5mi, 62°) 4500ft
RW31	OMTEM (287°)	OMTEM UMABU (5mi, 242°) 4500ft
	RNAV	UMABU 4500ft SIDPI (6mi, 308°) 4400ft CYQL (5mi, 306°) 3068ft VIXUP (6mi, 309°) 4800ft VIXUP (turn)
