Airports for X-Plane

Sudbury

Airport details

CountryCanada
StateOntario
RegionCY
AirspaceToronto Ctr
MunicipalityGreater Sudbury
Elevation1141ft (348m)
TimezoneGMT -5
Coordinates46.61597, -80.80238
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeCYSB
IATA codeYSB
FAA coden/a

Communication

Sudbury ATIS127.400
Sudbury RADIO125.500
Sudbury Clearance DEL121.800
Sudbury CTR Toronto135.500

Approach frequencies

ILS-cat-IRW22110.318.00mi
3° GSRW22110.318.00mi

Runway info

Runway 04 / 22
 length2019m (6624ft)
 bearing39° / 219°
 width61m (200ft)
 surfaceasphalt
Runway 12 / 30
 length1518m (4980ft)
 bearing101° / 281°
 width46m (150ft)
 surfaceasphalt

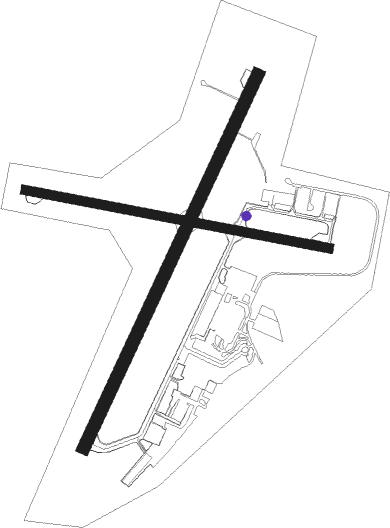

Airport layout - taxiway location C


Taxiway locations

 A  B  C  D
Parking locations

 Apron  Heli  MAG  Terminal

Nearby beacons

codeidentifierdistbearingfrequency
YSBDME0.817°112.30
SBSUDBURY NDB5.3285°362

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW04
 CYSB258mi101°
RW12
 CYSB258mi101°
RW22
 CYSB258mi101°
RW30
 CYSB258mi101°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04KESNA (5°)KESNA
PEKVU (5mi, 291°) 3600ft
RW04XORIV (65°)XORIV
PEKVU (5mi, 111°) 3600ft
 RNAVPEKVU 3600ft
OBTIR (6mi, 39°) 2500ft
UBTEX (3mi, 39°) 1630ft
CYSB (1mi, 46°) 1180ft
EMLOS (5mi, 38°) 3500ft
EMLOS (turn)
RW12BEMUB (86°)BEMUB
ALTAP (5mi, 22°) 3600ft
RW12DUSAL (123°)DUSAL
ALTAP (5mi, 201°) 3600ft
 RNAVALTAP 3600ft
URPEM (6mi, 101°) 2600ft
CYSB (5mi, 107°) 1178ft
ITNIP (5mi, 95°) 3500ft
ITNIP (turn)
RW22ESPUS (242°)ESPUS
UKSUT (5mi, 291°) 3500ft
RW22OXAKI (188°)OXAKI
UKSUT (5mi, 111°) 3500ft
 RNAVUKSUT 3500ft
ALNIL (6mi, 220°) 2600ft
CYSB (6mi, 218°) 1189ft
BOTIV (turn)
IMAGI (3mi, 219°) 3500ft
IMAGI (turn)
RW30OMSOK (261°)OMSOK
MEGDU (5mi, 202°) 3600ft
RW30VOGUR (298°)VOGUR
MEGDU (5mi, 22°) 3600ft
 RNAVMEGDU 3600ft
KATEV (6mi, 281°) 2600ft
CYSB (5mi, 275°) 1193ft
URLIS (5mi, 287°) 3500ft
URLIS (turn)
