Airports for X-Plane

Montréal - Montreal Trudeau Intl

Airport details

CountryCanada
StateQuebec
RegionCY
AirspaceMontreal Ctr
MunicipalityDorval
Elevation117ft (36m)
TimezoneGMT -5
Coordinates45.47232, -73.71748
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeCYUL
IATA codeYUL
FAA coden/a

Communication

Montreal Trudeau Intl ATIS133.700
Montreal Trudeau Intl MONTREAL Clearance DEL125.600
Montreal Trudeau Intl MONTREAL Ground Control East121.900
Montreal Trudeau Intl MONTREAL Ground Control West121.000
Montreal Trudeau Intl MONTREAL Tower119.900
Montreal Trudeau Intl MONTREAL Tower124.300
Montreal Trudeau Intl MONTREAL Tower119.300
Montreal Trudeau Intl MONTREAL ARR118.900
Montreal Trudeau Intl MONTREAL VFR ADVSY134.150
Montreal Trudeau Intl MONTREAL ARR126.900
Montreal Trudeau Intl MONTREAL ARR132.850
Montreal Trudeau Intl MONTREAL w nw ne Departure124.650
Montreal Trudeau Intl MONTREAL se sw s Departure120.425

Approach frequencies

ILS-cat-IIRW06L109.318.00mi
ILS-cat-IRW24L110.518.00mi
ILS-cat-IRW06R110.518.00mi
ILS-cat-IRW24R111.918.00mi
ILS-cat-IRW10110.118.00mi
3° GSRW24R111.918.00mi
3° GSRW06L109.318.00mi
3° GSRW06R110.518.00mi
3° GSRW24L110.518.00mi
3° GSRW10110.118.00mi
Nearby Points of Interest:
LeBer-LeMoyne House
-
Fleming Windmill
-
Fort St-Louis
-
Lachine Canal
-
Hurtubise House
-
Westmount station
-
Côte-Saint-Paul
-
Mont-Royal Heritage Site
-
Trafalgar Lodge
-
Îlot-Trafalgar-Gleneagles
-
Maison Hosea-Ballou-Smith
-
Cinéma Rialto
-
Atwater Library
-
John Wilson McConnell House
-
Chapelle du Grand Séminaire de Montréal
-
Raymond House, Montreal
-
Montreal Masonic Memorial Temple
-
Cormier House
-
Cinéma Le Château
-
David Lewis house
-
Shaughnessy House
-
Hosmer House
-
Erskine and American United Church
-
H. Vincent Meredith Residence
-
Grey Nuns Motherhouse

Runway info

Runway 06L / 24R
 length3359m (11020ft)
 bearing53° / 233°
 width61m (200ft)
 surfaceasphalt
 blast zone40m (131ft) / 40m (131ft)
Runway 06R / 24L
 length2930m (9613ft)
 bearing53° / 233°
 width61m (200ft)
 surfaceconcrete
 blast zone40m (131ft) / 40m (131ft)
Runway 10 / 28
 length2136m (7008ft)
 bearing88° / 268°
 width61m (200ft)
 surfaceasphalt

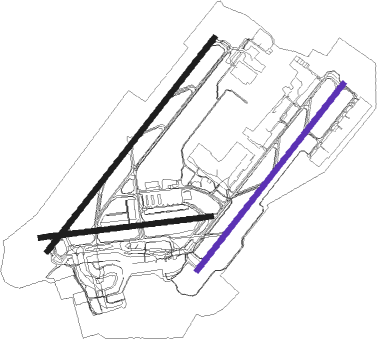

Airport layout - runway 06R / 24L


Taxiway locations

 A  A1  A2  A3  A4  AC  AM  AS
 B  B1  B2  B3  D  E  F  G
 G1  H  I  J  K  L  Q  R
 U  V  W
Parking locations

 Air  Aviation  Bombardier  Claude  E1N  E1S  E2  E3
 Galazy  Gate  Innotech  N1  N2  N3  N4  N5
 N6  N7  Shell  Skyservice  Starlink  W1  W2  W3
 W4  W5

Nearby beacons

codeidentifierdistbearingfrequency
YULMONTREAL VOR/DME13.7300°116.30
ZHUHAUTS-BOIS (MONTREAL) NDB16.576°407
ZMRHERMAS (MONTREAL) NDB18292°272
ZMXJANVIER (MONTREAL) NDB18.2323°317
YJNDME21.1119°115.80
ZMMJOLY (MONTREAL) NDB23.2294°266
BTHERRO (BURLINGTON) NDB59.8154°382
BJABURLINGTON TACAN64.3151°112.40

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW06L
 CYUL120mi298°
RW06R
 CYUL120mi298°
RW10
 CYUL120mi298°
RW24 (ALL)
 CYUL120mi298°
RW28
 CYUL120mi298°

STAR starting pointsdistanceinbound heading
RW06 (ALL)
 LFLER624.9123°
 OMBRE928.7248°
 CARTR423.8338°
RW06L
 IMPAC359.868°
 ALOET333.669°
 HABBS6106.571°
RW06R
 IMPAC359.868°
 ALOET333.669°
 HABBS6106.571°
RW24 (ALL)
 IMPAC359.868°
 ALOET333.669°
 HABBS6106.571°
 LFLER624.9123°
 CARTR423.8338°
RW24L
 OMBRE928.7248°
RW24R
 OMBRE928.7248°
RW28
 IMPAC359.868°
 ALOET333.669°
 HABBS6106.571°
 LFLER624.9123°
 OMBRE928.7248°
 CARTR423.8338°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALOET3AGNAGVHFleft314 (134)°1.0min timed210
ALOET3ARVIEVHFright256 (76)°> 3000ft1.0min timed310
CARTR4DUNUPVHFright190 (10)°1.0min timed210
CARTR4ELTATVHFright229 (49)°1.0min timed210
CARTR4LATTSVHFright190 (10)°< 14000ft1.0min timed230
CARTR4PBERGVHFright195 (15)°DME 10.0miICAO rules
CARTR4ROKTIVHFleft57 (237)°1.0min timed210
HABBS6AGNAGVHFleft314 (134)°1.0min timed210
HABBS6ARVIEVHFright256 (76)°> 3000ft1.0min timed310
HABBS6IGVUDVHFleft264 (84)°< 60000ft1.0min timedICAO rules
IMPAC3AGNAGVHFleft314 (134)°1.0min timed210
IMPAC3ARVIEVHFright256 (76)°> 3000ft1.0min timed310
IMPAC3DAVDAVHFleft264 (84)°< 60000ft1.0min timedICAO rules
LFLER6AGNAGVHFleft314 (134)°1.0min timed210
LFLER6BEMOGVHFleft292 (112)°< 60000ft1.0min timedICAO rules
LFLER6DATABVHFleft18 (198)°< 60000ft1.0min timedICAO rules
LFLER6IKMOLVHFleft327 (147)°< 60000ft1.0min timedICAO rules
LFLER6OBNUVVHFright57 (237)°1.0min timed210
LFLER6OBRETVHFright18 (198)°< 60000ft1.0min timedICAO rules
LFLER6OLASIVHFleft327 (147)°< 60000ft1.0min timedICAO rules
LFLER6UDGAKVHFleft293 (113)°< 60000ft1.0min timedICAO rules
LFLER6VIDGOVHFleft334 (154)°5000ft - 60000ft1.0min timed265
OMBRE9DEBUSVHFleft44 (224)°> 4200ft1.0min timed250
OMBRE9MAIREVHFleft96 (276)°< 17999ft1.0min timed310
OMBRE9OMBREVHFright96 (276)°18000ft - 60000ft1.5min timed310
OMBRE9ROKTIVHFleft57 (237)°1.0min timed210
OMBRE9SILVIVHFright97 (277)°18000ft - 60000ft1.5min timed310
OMBRE9VIKBUVHFright97 (277)°14001ft - 60000ft1.5min timed310
*) magnetic outbound (inbound) holding course
