Airports for X-Plane

Vancouver - Vancouver Intl

Airport details

CountryCanada
StateBritish Columbia
RegionCY
AirspaceVancouver Ctr
MunicipalityRichmond
Elevation3ft (1m)
TimezoneGMT -8
Coordinates49.18289, -123.16697
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeCYVR
IATA codeYVR
FAA coden/a

Communication

Vancouver Intl ATIS124.600
Vancouver Intl Clearance Delivery121.400
Vancouver Intl Ground South121.700
Vancouver Intl Ground North127.150
Vancouver Intl Tower South118.700
Vancouver Intl Tower North119.550
Vancouver Intl Arrival Low Inner133.100
Vancouver Intl Arrival High Outer128.600
Vancouver Intl Departure North126.125
Vancouver Intl Departure South132.300

Approach frequencies

ILS-cat-IIIRW26R111.9518.00mi
ILS-cat-IIIRW08L110.5518.00mi
ILS-cat-IIIRW08R109.518.00mi
ILS-cat-IIIRW26L110.718.00mi
ILS-cat-IRW13111.118.00mi
3° GSRW08R109.518.00mi
3° GSRW08L110.5518.00mi
3° GSRW26R111.9518.00mi
3° GSRW13111.118.00mi
3° GSRW26L110.718.00mi
Nearby Points of Interest:
Great Marpole Midden
-
Bessborough Armoury
-
Seaforth Armoury
-
St. Roch
-
Beatty Street Drill Hall
-
Sun Tower
-
Sam Kee Building
-
Victory Square, Vancouver
-
Dominion Building
-
Carnegie Community Centre
-
Pantages Theatre
-
Marine Building
-
MV Plover
-
Fort Langley National Historic Site

Runway info

Runway 08R / 26L
 length3280m (10761ft)
 bearing97° / 277°
 width61m (200ft)
 surfaceconcrete
 blast zone61m (200ft) / 0m (0ft)
Runway 13 / 31
 length2227m (7306ft)
 bearing130° / 310°
 width61m (200ft)
 surfaceconcrete
 blast zone32m (105ft) / 26m (85ft)
Runway 08L / 26R
 length2929m (9610ft)
 bearing97° / 277°
 width61m (200ft)
 surfaceconcrete
 displ threshold0m (0ft) / 120m (394ft)

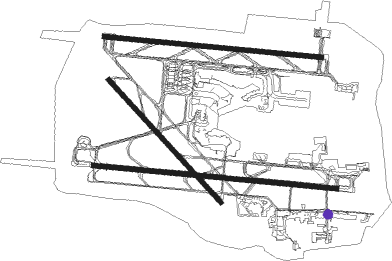

Airport layout - taxiway location C


Taxiway locations

 A  A2  A4  A6  B  C  D  D1
 D2  D3  D5  D7  D9  DR  DS  DT
 DU  DV  DW  DY  E  F  G  H
 H2  H4  J  JA  K  L  L2  L4
 M  M1  M10  M2  M3  M4  M5  M6
 M7  M8  N7  P  Q  R  S  T
 V
Parking locations

 10  12  13  14  15  16  17  18
 19  1A  1B  1C  1D  1E  1F  1G
 1H  1J  1K  1L  1M  1N  1P  1R
 1S  1T  1U  20  21  22  23A  23B
 23C  26  27  29  2A  2B  2F  2G
 2H  2J  30  31  32  33  34  35
 36  37  38  39  3A  3B  3C  40
 41  42  43  44  45  46A  47  48
 49  50  51  52  53  54  55  58
 6  62  66  67  68  69  7  70
 71  72  73  74  75  76  77A  78
 79  8  80  81  82  83  85  86
 87  88  9  90  91  92  93  94
 95A  95B  96  AC  Air  Blackcomb  Cargo  CargoJet
 Deicing  E1  E10  E12  E13  E16  E18  E2
 E3  FDX  GA  Helo  Jazz  Landmark  Million  MillionAir
 Sea  Signature  Skylink  UPS

Nearby beacons

codeidentifierdistbearingfrequency
VRVANCOUVER NDB4.395°266
YVRVANCOUVER VOR/DME6.3170°115.90
YPKPITT MEADOWS VOR17.886°112.40
APACTIVE PASS NDB19.1202°378
WCWHITE ROCK NDB19.6113°332
HUHWHATCOM VORTAC27.1112°113
YCDNANAIMO NDB27.8266°251
XXABBOTSFORD NDB28.5104°344
YYJVICTORIA VOR/DME30.1215°113.70
YJVICTORIA NDB33.6203°200
MBMILL BAY (VICTORIA) NDB34216°293
FHRFRIDAY HARBOR NDB40.6168°284
BVSSKAGIT/BAY VIEW (BURLINGTON) NDB52.1134°240
NUWWHIDBEY ISLAND (OAK HARBO TACAN53.5149°113.80
CVVPENN COVE VOR/DME59155°117.20

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
STAR starting pointsdistanceinbound heading
RW08 (ALL)
 GOTOK413.182°
 SOUND536.0109°
 KEINN2, WHSLR643.9138°
 COLMB248.3253°
 LIONN242.5254°
 GRIZZ638.3306°
RW08L
 ILAND518.645°
 RAGIT543.492°
 CANUC548.3253°
 PAINE412.1321°
RW08R
 ILAND518.645°
 RAGIT543.492°
 CANUC548.3253°
 PAINE412.1321°
RW13
 ILAND518.645°
 GOTOK413.182°
 RAGIT543.492°
 SOUND536.0109°
 KEINN2, WHSLR643.9138°
 CANUC548.3253°
 LIONN242.5254°
 GRIZZ638.3306°
 PAINE412.1321°
RW26 (ALL)
 SOUND536.0109°
 WHSLR6, KEINN243.9138°
 VITEV448.3253°
 STAVE834.6255°
 GRIZZ638.3306°
 PAINE412.1321°
RW26L
 CANUC548.3253°
 LIONN242.5254°
RW26R
 CANUC548.3253°
 LIONN242.5254°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08LYEMKAM (99°)EMKAM
DULKI (5mi, 96°) 2900ft
MIDVA (3mi, 96°) 2100ft
BEXIM (3mi, 96°) 1300ft
RW08LYSEBOG (203°)SEBOG 5800ft
NOTAV (6mi, 285°) 4000ft
KISIP (3mi, 258°) 2900ft
ONBOK (3mi, 180°) 2100ft
BEXIM (3mi, 114°) 1300ft
 RNAVBEXIM 1300ft
CYVR (5mi, 104°) 68ft
(6664mi, 112°) 420ft
UKNOS (6655mi, 292°)
YPK (10mi, 97°) 3500ft
YPK (turn)
RW08LZNAKMA (86°)NAKMA
EMKAM (6mi, 14°) 3000ft
RW08LZVINLO (110°)VINLO
EMKAM (4mi, 194°) 3000ft
 RNAVEMKAM 3000ft
TETAT (7mi, 96°) 2360ft
PIKMI (3mi, 96°) 1400ft
CYVR (6mi, 104°) 68ft
(6664mi, 112°) 480ft
UKNOS (6655mi, 292°) 3500ft
YPK (10mi, 97°)
YPK (turn)
RW08RNAKMA (86°)NAKMA
BUBUL (5mi, 15°) 3000ft
RW08RVINLO (110°)VINLO
BUBUL (5mi, 194°) 3000ft
 RNAVBUBUL 3000ft
EPRIN (7mi, 96°) 2360ft
ILEPI (3mi, 96°) 1400ft
CYVR (6mi, 97°) 63ft
(6664mi, 112°) 600ft
UKREL (6662mi, 292°) 2000ft
MOGIG (7mi, 224°) 2000ft
MOGIG (turn)
RW13GONIN (112°)GONIN
IGVAS (5mi, 78°) 3600ft
RW13NABOK (128°)NABOK
TAGTI (4mi, 130°) 4000ft
IGVAS (3mi, 130°) 3600ft
 RNAVIGVAS 3600ft
UDLEM (4mi, 130°) 2300ft
PETKO (3mi, 130°) 1280ft
ANTEY (2mi, 130°) 760ft
CYVR (4mi, 124°) 63ft
APGON (12mi, 132°) 3000ft
APGON (turn)
RW26LPEMSU (288°)PEMSU
SAVED (4mi, 15°) 3000ft
RW26LSEDUS (264°)SEDUS
SAVED (5mi, 195°) 3000ft
 RNAVSAVED 3000ft
XIKEK (5mi, 277°) 3000ft
DUTOM (5mi, 277°) 1400ft
ODKUR (2mi, 277°) 700ft
CYVR (2mi, 274°) 65ft
(6664mi, 112°) 600ft
MEBUD (6677mi, 292°) 2000ft
MEBUD (turn)
RW26RPEMSU (288°)PEMSU
GOREG (5mi, 15°) 3000ft
RW26RSEDUS (264°)SEDUS
GOREG (4mi, 196°) 3000ft
 RNAVGOREG 3000ft
XOVGO (5mi, 277°) 3000ft
TOTIM (5mi, 277°) 1500ft
CYVR (5mi, 268°) 60ft
(6664mi, 112°) 700ft
KEDGA (6667mi, 292°) 3000ft
DUTNO (8mi, 265°)
DUTNO (turn)
RW31AVILE (311°)AVILE
IGTOB (11mi, 310°) 3000ft
RW31AVRAP (5°)AVRAP
IGTOB (10mi, 63°) 3000ft
RW31WC (293°)WC
IGTOB (10mi, 275°) 3000ft
 RNAVIGTOB 3000ft
KEKTU (6mi, 310°) 2000ft
CYVR (6mi, 314°) 57ft
TEVAK (4mi, 304°)
NUTBE (16mi, 285°) 3000ft
NUTBE (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CANUC5BUBULVHFright263 (83)°1.0min timed200
CANUC5EMKAMVHFleft263 (83)°1.0min timed200
CANUC5GOREGVHFright83 (263)°1.0min timed200
CANUC5SAVEDVHFleft83 (263)°1.0min timed200
CANUC5VITEVVHFleft41 (221)°18000ft - 60000ft1.5min timedICAO rules
COLMB2VITEVVHFleft41 (221)°18000ft - 60000ft1.5min timedICAO rules
DUXUM5BUICKVHFleft192 (12)°> 5000ft1.0min timed250
DUXUM5GOREGVHFright83 (263)°1.0min timed200
DUXUM5NALGIVHFright242 (62)°> 5000ft1.0min timed250
DUXUM5SAVEDVHFleft83 (263)°1.0min timed200
GOTOK4GOTOKVHFright174 (354)°< 17999ft1.0min timedICAO rules
GOTOK4YYJNDBright292 (112)°18000ft - 60000ft1.5min timedICAO rules
GRIZZ6BEZOVVHFright149 (329)°18000ft - 45000ft1.5min timedICAO rules
GRIZZ6PIZZEVHFleft108 (288)°18000ft - 45000ft1.5min timedICAO rules
ILAND5BUBULVHFright263 (83)°1.0min timed200
ILAND5EMKAMVHFleft263 (83)°1.0min timed200
ILAND5MEPMUVHFright174 (354)°> 3500ft1.0min timedICAO rules
ILAND5YYJNDBright292 (112)°18000ft - 60000ft1.5min timedICAO rules
KEINN2KEINNVHFright316 (136)°1.0min timedICAO rules
LIONN2GOREGVHFright83 (263)°1.0min timed200
LIONN2SAVEDVHFleft83 (263)°1.0min timed200
LIONN2VITEVVHFleft41 (221)°18000ft - 60000ft1.5min timedICAO rules
PAINE4BEZOVVHFright149 (329)°18000ft - 45000ft1.5min timedICAO rules
RAGIT5BUBULVHFright263 (83)°1.0min timed200
RAGIT5EMKAMVHFleft263 (83)°1.0min timed200
RAGIT5FOCHEVHFright349 (169)°1.0min timed250
RAGIT5RAGITVHFright230 (50)°> 8000ft1.0min timed250
SHARK1FOCHEVHFright349 (169)°1.0min timed250
SHARK1GOREGVHFright83 (263)°1.0min timed200
SHARK1SAVEDVHFleft83 (263)°1.0min timed200
STAVE8VITEVVHFleft41 (221)°18000ft - 60000ft1.5min timedICAO rules
VITEV4VITEVVHFleft41 (221)°18000ft - 60000ft1.5min timedICAO rules
WHSLR6KEINNVHFright316 (136)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
