Airports for X-Plane

Medicine Hat

Airport details

CountryCanada
StateAlberta
RegionCY
AirspaceEdmonton Ctr
MunicipalityMedicine Hat
Elevation2351ft (717m)
TimezoneGMT -7
Coordinates50.01889, -110.72063
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeCYXH
IATA codeYXH
FAA coden/a

Communication

Medicine Hat AWOS124.875
Medicine Hat Radio / Traffic122.200

Runway info

Runway 03 / 21
 length1522m (4993ft)
 bearing57° / 237°
 width46m (150ft)
 surfaceasphalt
Runway 09 / 27
 length869m (2851ft)
 bearing102° / 282°
 width30m (100ft)
 surfaceasphalt

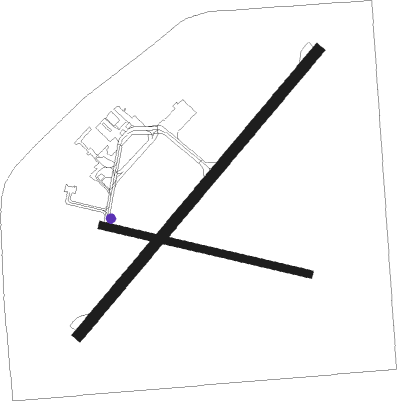

Airport layout - taxiway location B


Taxiway locations

 A  B
Parking locations

 Apron  Grass  Terminal

Nearby beacons

codeidentifierdistbearingfrequency
XHMEDICINE HAT NDB3266°332
6TFOREMOST NDB43.7235°362
YEADME61.239°115.90

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW03
 VESDO123mi266°
RW21
 VESDO123mi266°

STAR starting pointsdistanceinbound heading
RW03
 ODLAN118.293°
RW21
 ODLAN118.293°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03MENRA (36°)MENRA
TABVI (5mi, 324°) 4500ft
RW03VEVSA (73°)VEVSA
TABVI (5mi, 106°) 4500ft
 RNAVTABVI 4500ft
EPTEG (6mi, 57°) 4000ft
CYXH (5mi, 57°) 2399ft
SETGI (5mi, 57°) 4200ft
SETGI (turn)
RW21NAKDA (237°)NAKDA
VIMGI (5mi, 237°) 4100ft
RW21ROLTI (253°)ROLTI
VIMGI (5mi, 287°) 4100ft
 RNAVVIMGI 4100ft
PESVO (6mi, 237°) 4000ft
CYXH (5mi, 237°) 2400ft
TAGMI (5mi, 237°) 4200ft
TAGMI (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ODLAN1ODLANVHFright288 (108)°> 6000ft1.0min timed230
*) magnetic outbound (inbound) holding course
