Terrace - Northwest Regl Terrace-kitimat
Airport details
| Country | Canada |
| State | British Columbia |
| Region | CY |
| Airspace | Vancouver Ctr |
| Municipality | Terrace |
| Elevation | 709ft (216m) |
| Timezone | GMT -8 |
| Coordinates | 54.46855, -128.57838 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | CYXT |
| IATA code | YXT |
| FAA code | n/a |
Communication
| Northwest Regl Terrace-Kitimat MF | 122.000 |
| Northwest Regl Terrace-Kitimat Vancouver Ctr | 128.400 |
Approach frequencies
| ILS-cat-I | RW33 | 110.1 | 18.00mi |
| 3.5° GS | RW33 | 110.1 | 18.00mi |

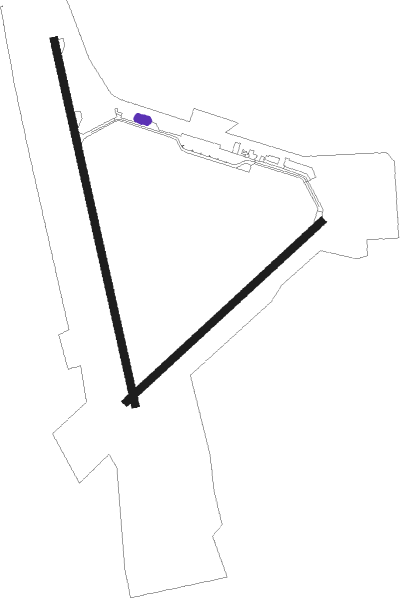

Runway info
Runway 15 / 33  | ||
| length | 2284m (7493ft) | |
| bearing | 166° / 346° | |
| width | 46m (151ft) | |
| surface | asphalt | |
| blast zone | 29m (95ft) / 36m (118ft) | |
| Runway 03 / 21 | ||
| length | 1629m (5344ft) | |
| bearing | 65° / 245° | |
| width | 46m (151ft) | |
| surface | asphalt | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| XT | TERRACE NDB | 5.6 | 184° | 332 |
| ZKI | KITIMAT NDB | 25 | 192° | 203 |
Departure and arrival routes
| Transition altitude | 18000ft |
| Transition level | 18000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW15 | |||
| ZKID1 | 25mi | 192° | |
| RW33 | |||
| RESI2 | 22mi | 23° | |
| MEDLI1 | 20mi | 261° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW15-Y | ENTRY (285°) | ENTRY 11100ft RIKEX (7mi, 317°) 8700ft EPTEB (5mi, 293°) 6900ft URTOX (2mi, 277°) 6200ft OMROT (3mi, 285°) 5200ft XONGU (5mi, 294°) 3600ft ULIDO (4mi, 268°) 2400ft |
| RW15-Y | VOLEN (273°) | VOLEN 11100ft ONDIM (10mi, 277°) 7900ft EPTEB (3mi, 277°) 6900ft URTOX (2mi, 277°) 6200ft OMROT (3mi, 285°) 5200ft XONGU (5mi, 294°) 3600ft ULIDO (4mi, 268°) 2400ft |
| RNAV | ULIDO 2400ft URTAP (2mi, 209°) 1488ft CYXT (3mi, 155°) 743ft ONDAD (4mi, 175°) DEDIB (6mi, 187°) 6500ft UMIPO (15mi, 183°) UMIPO (turn) 6500ft | |
| RW15-Z | MUXUD (129°) | MUXUD ITNES (10mi, 121°) 6800ft XORIM (2mi, 126°) 5700ft TADUK (2mi, 126°) 4700ft |
| RW15-Z | OBSAB (115°) | OBSAB PETGO (6mi, 92°) 7900ft ITNES (3mi, 92°) 6900ft XORIM (2mi, 126°) 5700ft TADUK (2mi, 126°) 4700ft |
| RW15-Z | RESIN (203°) | RESIN 11100ft ETMIL (14mi, 272°) 8000ft ITNES (8mi, 184°) 6200ft XORIM (2mi, 126°) 5700ft TADUK (2mi, 126°) 4700ft |
| RNAV | TADUK 4700ft SEDEG (3mi, 115°) 4200ft XUDAX (5mi, 145°) 2200ft VITEK (3mi, 145°) 1164ft (6681mi, 113°) 1300ft DEDIB (6687mi, 293°) UMIPO (15mi, 183°) 6800ft UMIPO (turn) | |
| RW33-X | OBRAR (33°) | OBRAR KAXOS (9mi, 73°) 6800ft NORUL (6mi, 12°) 4200ft |
| RW33-X | URNIS (342°) | URNIS KAXOS (9mi, 307°) 6800ft NORUL (6mi, 12°) 4200ft |
| RNAV | NORUL 4200ft OVGAK (5mi, 12°) 3000ft XOTRU (4mi, 346°) 1560ft CYXT (3mi, 358°) 737ft (6681mi, 113°) 1300ft ODGUP (6679mi, 293°) IKBIG (7mi, 297°) ELSUV (16mi, 7°) 9700ft ELSUV (turn) | |
| RW33-Y | IGTIX (333°) | IGTIX 11100ft PUTOD (7mi, 309°) 7900ft UBVUN (3mi, 325°) 7000ft NOTED (7mi, 346°) 4100ft PENKI (5mi, 346°) 2500ft |
| RW33-Y | LORGI (296°) | LORGI 11100ft SUVBU (4mi, 271°) 9200ft XUGIT (7mi, 271°) 6100ft NOTED (4mi, 298°) 4100ft PENKI (5mi, 346°) 2500ft |
| RNAV | PENKI 2500ft CYXT (5mi, 352°) 737ft MEGIX (5mi, 341°) ETLUT (3mi, 318°) MURUL (7mi, 299°) 8500ft MURUL (turn) | |
| RW33-Z | OBRAR (33°) | OBRAR KAXOS (9mi, 73°) 6800ft NORUL (6mi, 12°) 4200ft |
| RW33-Z | URNIS (342°) | URNIS KAXOS (9mi, 307°) 6800ft NORUL (6mi, 12°) 4200ft |
| RNAV | NORUL 4200ft OVGAK (5mi, 12°) 3000ft CYXT (7mi, 351°) 737ft ODGUP (9mi, 328°) IKBIG (7mi, 297°) ELSUV (16mi, 7°) 9700ft ELSUV (turn) |
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
