Airports for X-Plane

Toronto - Lester B Pearson Intl.

Airport details

CountryCanada
StateOntario
RegionCY
AirspaceToronto Ctr
MunicipalityMississauga
Elevation541ft (165m)
TimezoneGMT -5
Coordinates43.68170, -79.63200
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeCYYZ
IATA codeYYZ
FAA coden/a

Communication

Lester B Pearson Intl. ATIS120.825
Lester B Pearson Intl. ATIS133.100
Lester B Pearson Intl. Clearance Delivery121.300
Lester B Pearson Intl. Ground South121.900
Lester B Pearson Intl. Ground North121.650
Lester B Pearson Intl. Ground Center119.100
Lester B Pearson Intl. Tower South118.350
Lester B Pearson Intl. Tower North118.700
Lester B Pearson Intl. Arrivals132.800
Lester B Pearson Intl. Departures128.800
Lester B Pearson Intl. Departures127.575

Approach frequencies

ILS-cat-IIIRW06L109.118.00mi
ILS-cat-IIIRW05109.718.00mi
ILS-cat-IRW23111.518.00mi
ILS-cat-IRW06R111.9518.00mi
ILS-cat-IRW24L111.9518.00mi
ILS-cat-IRW33R110.318.00mi
ILS-cat-IRW15R110.9518.00mi
ILS-cat-IRW24R109.318.00mi
ILS-cat-IRW15L110.518.00mi
ILS-cat-IRW33L110.9518.00mi
3° GSRW15L110.518.00mi
3° GSRW24R109.318.00mi
3° GSRW06R111.9518.00mi
3° GSRW24L111.9518.00mi
3° GSRW05109.718.00mi
3° GSRW06L109.118.00mi
3° GSRW33L110.9518.00mi
3° GSRW33R110.318.00mi
3° GSRW15R110.9518.00mi
3° GSRW23111.518.00mi
Nearby Points of Interest:
Runnymede Theatre
-
Horticulture Building
-
College Street Baptist Church
-
Horse Palace
-
Liberty Grand Building
-
Automotive Building
-
Deer Park United Church
-
Fort York Armoury
-
Avenue Road Church
-
Koffler Student Centre
-
Standard Theatre
-
University College
-
Hart House
-
University Theatre
-
John Daniels' House
-
Masonic Temple
-
St. Basil's Church
-
299 Queen Street West
-
Government of Canada Building
-
Women's College Hospital
-
Canada Life Building
-
Osgoode Hall
-
IOOF Hall
-
Arts and Letters Club of Toronto
-
Maple Leaf Gardens

Runway info

Runway 15L / 33R
 length3368m (11050ft)
 bearing127° / 307°
 width61m (200ft)
 surfaceconcrete
 blast zone31m (102ft) / 29m (95ft)
Runway 15R / 33L
 length2767m (9078ft)
 bearing127° / 307°
 width61m (200ft)
 surfaceconcrete
 displ threshold179m (587ft) / 179m (587ft)
Runway 05 / 23
 length3385m (11106ft)
 bearing55° / 235°
 width61m (200ft)
 surfaceconcrete
 displ threshold40m (131ft) / 148m (486ft)
 blast zone46m (151ft) / 44m (144ft)
Runway 06R / 24L
 length2743m (8999ft)
 bearing55° / 235°
 width61m (200ft)
 surfaceconcrete
 blast zone29m (95ft) / 31m (102ft)
Runway 06L / 24R
 length2954m (9692ft)
 bearing55° / 235°
 width61m (200ft)
 surfaceconcrete
 displ threshold0m (0ft) / 60m (197ft)
 blast zone45m (148ft) / 32m (105ft)

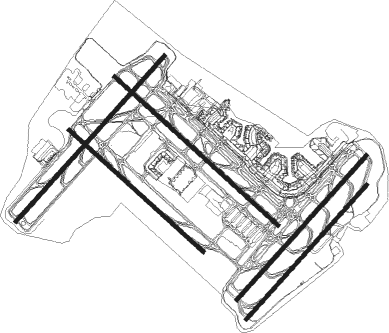

Airport layout


Taxiway locations

 05  15L  15R  33L  33R  A  AD  AE
 AF  AG  AJ  AK  AM  AT  B  B1
 B2  B3  B4  C  C1  C2  C3  C4
 D  D1  D2  D3  D4  D5  D6  D7
 DP  DQ  DR  DT  DV  E  F  F1
 F2  F3  F4  FA  G  H  H2  H3
 H4  H6  J  J2  JD  JE  N  N5
 P  R  S  T  V
Parking locations

 Cargo  FEDEX  Gate  General  GTAA  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
YYZTORONTO VOR/DME1.4179°112.15
YTPPEARSON (TORONTO) VOR/DME1.5253°116.55
ZTOWOODHILL (TORONTO) NDB4.6309°403
ZYZQUEENSWAY (TORONTO) NDB5.2126°368
TZGIBRALTAR POINT NDB11.4106°257
KZBUTTONVILLE NDB2050°248
ZKFWELLINGTON (KITCHENER) NDB30.6254°335
ZHMBINBROOK (HAMILTON) NDB33197°266
ZHAANCASTER (HAMILTON) NDB33.8219°397
OOOSHAWA NDB34.872°391
WT(KITCHENER) DME35.1253°115
YODME-ILS35.372°111.35
YMSMANS (MANSFIELD) VOR/DME35.5312°114.50
SNST CATHARINES NDB36145°408
HMHAMILTON NDB37.4214°221
YSODME38.940°117.35
IAGNIAGARA FALLS TACAN45130°111
IAKATHI (NIAGRA FALLS) NDB48.8126°329
FDBRANTFORD NDB50232°207
YEEMIDLAND VOR/DME54.5350°112.80
BUKLUMP (BUFFALO) NDB59.2125°231
GBPLAZZ (BUFFALO) NDB60.2135°204
BUFBUFFALO VOR/DME62.4127°116.40

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW05
 LAKES343mi18°
 SEDOG5123mi34°
 VERDO6161mi72°
 BOMET7155mi77°
 DEDKI4126mi89°
 ARROW3, TRNTO310mi103°
 TEVAD269mi104°
 MAVAN2, KEPTA260mi130°
 DUSOM2, RIGUS4181mi149°
 OAKVL2, BETES2154mi199°
 ANCOL4, PERLO480mi232°
 MIXUT6, PEMBA5118mi241°
 TULEK3, GOPUP3231mi268°
 NOSIK3, URSAL3207mi273°
 NUGOP5, AVSEP6236mi304°
 EBKIN3, KISEP3158mi312°
 MATES5, IKLEN231mi350°
RW06 (ALL)
 LAKES343mi18°
 SEDOG5123mi34°
 VERDO6161mi72°
 BOMET7155mi77°
 DEDKI4126mi89°
 ARROW3, TRNTO310mi103°
 TEVAD269mi104°
 KEPTA2, MAVAN260mi130°
 DUSOM2, RIGUS4181mi149°
 BETES2, OAKVL2154mi199°
 PERLO4, ANCOL480mi232°
 MIXUT6, PEMBA5118mi241°
 TULEK3, GOPUP3231mi268°
 NOSIK3, URSAL3207mi273°
 AVSEP6, NUGOP5236mi304°
 EBKIN3, KISEP3158mi312°
 IKLEN2, MATES531mi350°
RW15 (ALL)
 LAKES343mi18°
 SEDOG5123mi34°
 VERDO6161mi72°
 BOMET7155mi77°
 DEDKI4126mi89°
 TRNTO3, ARROW310mi103°
 TEVAD269mi104°
 MAVAN2, KEPTA260mi130°
 RIGUS4, DUSOM2181mi149°
 OAKVL2, BETES2154mi199°
 PERLO4, ANCOL480mi232°
 MIXUT6, PEMBA5118mi241°
 GOPUP3, TULEK3231mi268°
 NOSIK3, URSAL3207mi273°
 AVSEP6, NUGOP5236mi304°
 EBKIN3, KISEP3158mi312°
 MATES5, IKLEN231mi350°
RW23
 LAKES343mi18°
 SEDOG5123mi34°
 VERDO6161mi72°
 BOMET7155mi77°
 DEDKI4126mi89°
 TRNTO3, ARROW310mi103°
 TEVAD269mi104°
 MAVAN2, KEPTA260mi130°
 DUSOM2, RIGUS4181mi149°
 BETES2, OAKVL2154mi199°
 PERLO4, ANCOL480mi232°
 MIXUT6, PEMBA5118mi241°
 GOPUP3, TULEK3231mi268°
 NOSIK3, URSAL3207mi273°
 NUGOP5, AVSEP6236mi304°
 KISEP3, EBKIN3158mi312°
 IKLEN2, MATES531mi350°
RW24 (ALL)
 LAKES343mi18°
 SEDOG5123mi34°
 VERDO6161mi72°
 BOMET7155mi77°
 DEDKI4126mi89°
 TEVAD269mi104°
 MAVAN2, KEPTA260mi130°
 RIGUS4, DUSOM2181mi149°
 BETES2, OAKVL2154mi199°
 PERLO4, ANCOL480mi232°
 PEMBA5, MIXUT6118mi241°
 TULEK3, GOPUP3231mi268°
 NOSIK3, URSAL3207mi273°
 AVSEP6, NUGOP5236mi304°
 EBKIN3, KISEP3158mi312°
 MATES5, IKLEN231mi350°
RW24L
 ARROW3, TRNTO310mi103°
RW24R
 TRNTO3, ARROW310mi103°
RW33L
 LAKES343mi18°
 SEDOG5123mi34°
 VERDO6161mi72°
 BOMET7155mi77°
 DEDKI4126mi89°
 TRNTO3, ARROW310mi103°
 TEVAD269mi104°
 KEPTA2, MAVAN260mi130°
 DUSOM2, RIGUS4181mi149°
 OAKVL2, BETES2154mi199°
 PERLO4, ANCOL480mi232°
 MIXUT6, PEMBA5118mi241°
 GOPUP3, TULEK3231mi268°
 URSAL3, NOSIK3207mi273°
 AVSEP6, NUGOP5236mi304°
 EBKIN3, KISEP3158mi312°
 IKLEN2, MATES531mi350°
RW33R
 LAKES343mi18°
 SEDOG5123mi34°
 VERDO6161mi72°
 BOMET7155mi77°
 DEDKI4126mi89°
 ARROW3, TRNTO310mi103°
 TEVAD269mi104°
 MAVAN2, KEPTA260mi130°
 RIGUS4, DUSOM2181mi149°
 OAKVL2, BETES2154mi199°
 ANCOL4, PERLO480mi232°
 PEMBA5, MIXUT6118mi241°
 TULEK3, GOPUP3231mi268°
 URSAL3, NOSIK3207mi273°
 NUGOP5, AVSEP6236mi304°
 EBKIN3, KISEP3158mi312°
 MATES5, IKLEN231mi350°

STAR starting pointsdistanceinbound heading
RW05
 NAKBO4, NUBER435.173°
 BOXUM5, DUVOS338.6131°
 IMEBA6, VIBLI542.2225°
 UDNOX5, RAGID541.8246°
 VERKO1, LINNG325.7324°
RW06 (ALL)
 BOXUM5, DUVOS338.6131°
 VIBLI5, IMEBA642.2225°
 RAGID5, UDNOX541.8246°
 LINNG3, VERKO125.7324°
RW06L
 NUBER4, NAKBO435.173°
RW06R
 NAKBO4, NUBER435.173°
RW15 (ALL)
 NUBER4, NAKBO435.173°
 IMEBA6, VIBLI542.2225°
 RAGID5, UDNOX541.8246°
RW15L
 DUVOS3, BOXUM538.6131°
 LINNG3, VERKO125.7324°
RW15R
 BOXUM5, DUVOS338.6131°
 VERKO1, LINNG325.7324°
RW23
 NAKBO4, NUBER435.173°
 BOXUM5, DUVOS338.6131°
 IMEBA6, VIBLI542.2225°
 RAGID5, UDNOX541.8246°
 VERKO1, LINNG325.7324°
RW24 (ALL)
 NAKBO4, NUBER435.173°
 BOXUM5, DUVOS338.6131°
 LINNG3, VERKO125.7324°
RW24L
 IMEBA6, VIBLI542.2225°
 UDNOX5, RAGID541.8246°
RW24R
 IMEBA6, VIBLI542.2225°
 RAGID5, UDNOX541.8246°
RW33 (ALL)
 NAKBO4, NUBER435.173°
 IMEBA6, VIBLI542.2225°
 UDNOX5, RAGID541.8246°
RW33L
 BOXUM5, DUVOS338.6131°
 LINNG3, VERKO125.7324°
RW33R
 DUVOS3, BOXUM538.6131°
 LINNG3, VERKO125.7324°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05-XKEPSO (62°)KEPSO 5600ft
IGVAP (6mi, 70°) 3800ft
RW05-XNALMI (343°)NALMI 7000ft
VISBU (9mi, 276°) 4500ft
IGVAP (3mi, 307°) 3800ft
RW05-XRERAT (89°)RERAT 6500ft
MERGU (5mi, 151°) 5000ft
IGVAP (5mi, 108°) 3800ft
 RNAVIGVAP 3800ft
KERPU (6mi, 55°) 2000ft
MUVOK (3mi, 55°) 1160ft
CYYZ (3mi, 66°) 618ft
(4956mi, 119°) 1100ft
AVTEK (4957mi, 299°) 3000ft
AVTEK (turn)
RW05-ZDARPU (23°)DARPU
RONTA (7mi, 307°) 3000ft
RW05-ZSELAP (77°)SELAP
RONTA (5mi, 127°) 3000ft
RW05-ZTARMU (58°)TARMU
RONTA (4mi, 55°) 3000ft
 RNAVRONTA 3000ft
KERPU (6mi, 55°) 2000ft
MUVOK (3mi, 55°) 1160ft
CYYZ (3mi, 66°) 618ft
(4956mi, 119°) 1100ft
AVTEK (4957mi, 299°) 3000ft
AVTEK (turn)
RW06LXKEPSO (62°)KEPSO 6000ft
IPVUB (4mi, 70°) 4800ft
KEMRI (4mi, 81°) 3400ft
RW06LXNALMI (343°)NALMI 6500ft
LEVAV (6mi, 277°) 4600ft
KEMRI (4mi, 307°) 3400ft
RW06LXRERAT (89°)RERAT 6500ft
MERGU (5mi, 151°) 5000ft
KEMRI (8mi, 102°) 3400ft
 RNAVKEMRI 3400ft
VEPNA (4mi, 55°) 2000ft
RESIS (3mi, 55°) 1090ft
CYYZ (2mi, 25°) 580ft
(4956mi, 119°) 1100ft
TUDOG (4936mi, 299°) 3100ft
TUDOG (turn)
RW06LZDARPU (23°)DARPU
OLAKO (5mi, 307°) 3000ft
RW06LZRETAX (51°)RETAX
OLAKO (3mi, 55°) 3000ft
RW06LZSELAP (77°)SELAP
OLAKO (7mi, 127°) 3000ft
 RNAVOLAKO 3000ft
VEPNA (6mi, 55°) 2000ft
RESIS (3mi, 55°) 1090ft
CYYZ (2mi, 25°) 580ft
(4956mi, 119°) 1100ft
TUDOG (4936mi, 299°) 3100ft
TUDOG (turn)
RW06RXKEPSO (62°)KEPSO 6000ft
IPVUB (4mi, 70°) 4800ft
MIBMU (5mi, 83°) 3400ft
RW06RXNALMI (343°)NALMI 6500ft
LEVAV (6mi, 277°) 4600ft
MIBMU (4mi, 307°) 3400ft
RW06RXRERAT (89°)RERAT 7000ft
MERGU (5mi, 151°) 5800ft
MIBMU (8mi, 103°) 3400ft
 RNAVMIBMU 3400ft
SAVOS (4mi, 55°) 2000ft
XIDED (3mi, 55°) 1090ft
CYYZ (3mi, 22°) 584ft
(4956mi, 119°) 1100ft
TUDOG (4936mi, 299°) 3100ft
TUDOG (turn)
RW06RZDARPU (23°)DARPU
ADREX (5mi, 307°) 3000ft
RW06RZKAVPI (50°)KAVPI
ADREX (3mi, 55°) 3000ft
RW06RZSELAP (77°)SELAP
ADREX (7mi, 127°) 3000ft
 RNAVADREX 3000ft
SAVOS (6mi, 55°) 2000ft
XIDED (3mi, 55°) 1090ft
CYYZ (3mi, 22°) 584ft
(4956mi, 119°) 1100ft
TUDOG (4936mi, 299°) 3100ft
TUDOG (turn)
RW15LZEMLAP (128°)EMLAP
OTEPO (4mi, 127°) 3000ft
RW15LZIGTIL (104°)IGTIL
OTEPO (6mi, 55°) 3000ft
RW15LZMITUX (157°)MITUX
OTEPO (5mi, 235°) 3000ft
 RNAVOTEPO 3000ft
SEKUR (5mi, 127°) 2000ft
XIKIT (3mi, 127°) 1110ft
CYYZ (2mi, 130°) 597ft
(4956mi, 119°) 1100ft
TUDOG (4936mi, 299°) 3100ft
TUDOG (turn)
RW15RZBOXIP (126°)BOXIP
SEGOT (4mi, 127°) 3000ft
RW15RZIGTIL (104°)IGTIL
SEGOT (5mi, 55°) 3000ft
RW15RZMITUX (157°)MITUX
SEGOT (6mi, 235°) 3000ft
 RNAVSEGOT 3000ft
HOFFS (5mi, 127°) 2000ft
ALMEB (2mi, 127°) 1300ft
CYYZ (3mi, 119°) 603ft
(4956mi, 119°) 1100ft
PETVO (4953mi, 299°) 3000ft
PETVO (turn)
RW23-XDUXAK (185°)DUXAK 6000ft
IKDIR (8mi, 127°) 3400ft
RW23-XNUGUT (262°)NUGUT 7500ft
IGSUX (4mi, 352°) 6400ft
EMBAB (3mi, 346°) 5500ft
MIDBA (3mi, 277°) 4500ft
IKDIR (4mi, 236°) 3400ft
RW23-XOLIPA (233°)OLIPA 5000ft
MIDBA (2mi, 236°) 4500ft
IKDIR (4mi, 236°) 3400ft
 RNAVIKDIR 3400ft
OMTOK (5mi, 236°) 2000ft
CYYZ (5mi, 228°) 610ft
(4956mi, 119°) 1100ft
IKDOT (4976mi, 299°) 3000ft
IKDOT (turn)
RW23-ZDAVIK (205°)DAVIK
LETAP (5mi, 127°) 3000ft
RW23-ZMAROD (261°)MAROD
LETAP (7mi, 308°) 3000ft
RW23-ZSILTO (233°)SILTO
LETAP (5mi, 236°) 3000ft
 RNAVLETAP 3000ft
VEPVU (4mi, 236°) 2630ft
OMTOK (2mi, 236°) 2000ft
CYYZ (5mi, 228°) 610ft
(4956mi, 119°) 1100ft
IKDOT (4976mi, 299°) 3000ft
IKDOT (turn)
RW24LXDUXAK (185°)DUXAK 6000ft
DUTKU (7mi, 127°) 4000ft
MUTUP (4mi, 144°) 3000ft
RW24LXNUGUT (262°)NUGUT 6000ft
IGSUX (4mi, 352°) 5000ft
KETVI (3mi, 286°) 4100ft
MUTUP (4mi, 236°) 3000ft
RW24LXOMALO (240°)OMALO 5000ft
KETVI (2mi, 236°) 4100ft
MUTUP (4mi, 236°) 3000ft
 RNAVMUTUP 3000ft
KIREX (3mi, 236°) 2000ft
CYYZ (5mi, 248°) 604ft
(4956mi, 119°) 1100ft
PETVO (4953mi, 299°) 3000ft
PETVO (turn)
RW24LZDAVIK (205°)DAVIK
ELVUD (7mi, 127°) 3000ft
RW24LZDUTEX (240°)DUTEX
ELVUD (5mi, 236°) 3000ft
RW24LZMAROD (261°)MAROD
ELVUD (5mi, 308°) 3000ft
 RNAVELVUD 3000ft
APMIK (4mi, 236°) 2630ft
KIREX (2mi, 236°) 2000ft
CYYZ (5mi, 248°) 604ft
(4956mi, 119°) 1100ft
PETVO (4953mi, 299°) 3000ft
PETVO (turn)
RW24RXDUXAK (185°)DUXAK 6000ft
DUTKU (7mi, 127°) 4000ft
DEGBU (4mi, 143°) 3000ft
RW24RXNUGUT (262°)NUGUT 6000ft
IGSUX (4mi, 352°) 5000ft
VOBUP (3mi, 286°) 4100ft
DEGBU (3mi, 236°) 3000ft
RW24RXVIPRU (240°)VIPRU 5000ft
VOBUP (3mi, 236°) 4100ft
DEGBU (3mi, 236°) 3000ft
 RNAVDEGBU 3000ft
NOAHA (3mi, 236°) 2000ft
ONDUT (3mi, 236°) 1100ft
CYYZ (3mi, 256°) 604ft
(4956mi, 119°) 1100ft
PETVO (4953mi, 299°) 3000ft
PETVO (turn)
RW24RZDAVIK (205°)DAVIK
TIDAP (7mi, 127°) 3000ft
RW24RZEPNUT (240°)EPNUT
TIDAP (5mi, 236°) 3000ft
RW24RZMAROD (261°)MAROD
TIDAP (5mi, 308°) 3000ft
 RNAVTIDAP 3000ft
MEPNA (4mi, 236°) 2630ft
NOAHA (2mi, 236°) 2000ft
ONDUT (3mi, 236°) 1100ft
CYYZ (3mi, 256°) 604ft
(4956mi, 119°) 1100ft
PETVO (4953mi, 299°) 3000ft
PETVO (turn)
RW33LZGUBOV (287°)GUBOV
ONBUS (6mi, 236°) 3000ft
RW33LZKEKLU (309°)KEKLU
ONBUS (4mi, 308°) 3000ft
RW33LZNOXER (335°)NOXER
ONBUS (5mi, 55°) 3000ft
 RNAVONBUS 3000ft
EBKOV (4mi, 308°) 3000ft
VESDA (1mi, 308°) 2600ft
APMAM (2mi, 308°) 2000ft
CYYZ (5mi, 313°) 598ft
(4956mi, 119°) 1100ft
IKDOT (4976mi, 299°) 3000ft
IKDOT (turn)
RW33RZGUBOV (287°)GUBOV
MISAV (5mi, 236°) 3000ft
RW33RZNAGTI (307°)NAGTI
MISAV (4mi, 308°) 3000ft
RW33RZNOXER (335°)NOXER
MISAV (6mi, 55°) 3000ft
 RNAVMISAV 3000ft
TESAK (3mi, 308°) 3000ft
UKUDO (1mi, 308°) 2600ft
LETAG (2mi, 308°) 2000ft
XUGUM (2mi, 308°) 1240ft
CYYZ (3mi, 306°) 598ft
(4956mi, 119°) 1100ft
AVTEK (4957mi, 299°) 3000ft
AVTEK (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BOXUM5BOXUMVHFleft328 (148)°> 8000ft1.0min timedICAO rules
BOXUM5DARIDVHFleft328 (148)°1.0min timedICAO rules
BOXUM5GOPAKVHFleft316 (136)°1.0min timedICAO rules
BOXUM5IRKIMVHFleft359 (179)°1.0min timedICAO rules
BOXUM5NAKALVHFleft316 (136)°1.0min timedICAO rules
BOXUM5SETGOVHFleft327 (147)°1.0min timedICAO rules
DUVOS3BOXUMVHFleft328 (148)°> 8000ft1.0min timedICAO rules
DUVOS3DARIDVHFleft328 (148)°1.0min timedICAO rules
DUVOS3GOPAKVHFleft316 (136)°1.0min timedICAO rules
DUVOS3IRKIMVHFleft359 (179)°1.0min timedICAO rules
DUVOS3NAKALVHFleft316 (136)°1.0min timedICAO rules
DUVOS3SETGOVHFleft327 (147)°1.0min timedICAO rules
IMEBA6BETULVHFright46 (226)°1.0min timedICAO rules
IMEBA6IMEBAVHFright69 (249)°< 23000ft1.0min timed220
IMEBA6PERGIVHFright65 (245)°1.0min timedICAO rules
IMEBA6TADMOVHFright70 (250)°< 60000ft1.0min timedICAO rules
IMEBA6VIBLIVHFright70 (250)°< 60000ft1.0min timedICAO rules
LINNG3LINNGVHFleft161 (341)°< 22000ftDME 10.0mi220
LINNG3TMILSVHFleft193 (13)°1.0min timedICAO rules
LINNG3WOZEEVHFright190 (10)°< 40000ftDME 15.0mi265
NAKBO4APDAXVHFleft265 (85)°DME 10.0miICAO rules
NAKBO4ERBELVHFleft251 (71)°DME 10.0miICAO rules
NAKBO4NAKBOVHFright281 (101)°DME 10.0miICAO rules
NAKBO4NUBERVHFleft265 (85)°DME 10.0mi220
NAKBO4PNLTEVHFleft272 (92)°1.0min timedICAO rules
NAKBO4QWERIVHFright244 (64)°1.0min timedICAO rules
NUBER4APDAXVHFleft265 (85)°DME 10.0miICAO rules
NUBER4ERBELVHFleft251 (71)°DME 10.0miICAO rules
NUBER4NAKBOVHFright281 (101)°DME 10.0miICAO rules
NUBER4NUBERVHFleft265 (85)°DME 10.0mi220
NUBER4PNLTEVHFleft272 (92)°1.0min timedICAO rules
NUBER4QWERIVHFright244 (64)°1.0min timedICAO rules
RAGID5IGSAPVHFright70 (250)°< 60000ft1.0min timedICAO rules
RAGID5RAGIDVHFright69 (249)°< 23000ft1.0min timed220
UDNOX5IGSAPVHFright70 (250)°< 60000ft1.0min timedICAO rules
UDNOX5RAGIDVHFright69 (249)°< 23000ft1.0min timed220
VERKO1LINNGVHFleft161 (341)°< 22000ftDME 10.0mi220
VERKO1TMILSVHFleft193 (13)°1.0min timedICAO rules
VERKO1WOZEEVHFright190 (10)°< 40000ftDME 15.0mi265
VIBLI5IMEBAVHFright69 (249)°< 23000ft1.0min timed220
VIBLI5TADMOVHFright70 (250)°< 60000ft1.0min timedICAO rules
VIBLI5VIBLIVHFright70 (250)°< 60000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
