Airports for X-Plane

Edmonton - Edmonton Villeneuve

Airport details

CountryCanada
StateAlberta
RegionCY
AirspaceEdmonton Ctr
MunicipalitySturgeon County
Elevation2254ft (687m)
TimezoneGMT -7
Coordinates53.66917, -113.85389
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeCZVL
IATA coden/a
FAA coden/a

Communication

Edmonton Villeneuve ATIS128.350
Edmonton Villeneuve Villeneuve Ground120.800
Edmonton Villeneuve Villeneuve Tower118.800
Edmonton Villeneuve Edmonton Terminal119.500

Approach frequencies

ILS-cat-IRW26111.9518.00mi
3° GSRW26111.9518.00mi
Nearby Points of Interest:
Queen Elizabeth II Planetarium
-
Molson Brewery
-
Alberta Legislature Building
-
Fort Edmonton

Runway info

Runway 08 / 26
 length1526m (5007ft)
 bearing96° / 276°
 width30m (100ft)
 surfaceasphalt
Runway 16 / 34
 length1067m (3501ft)
 bearing180° / 0°
 width30m (100ft)
 surfaceasphalt

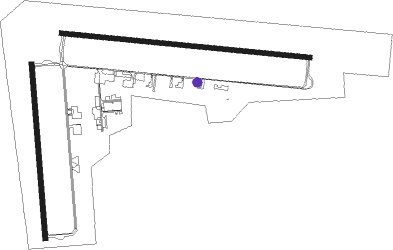

Airport layout - parking location Helo


Taxiway locations

 A  B
Parking locations

 Avialta  Cargo  Grass  Heli  Helo  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
EBNAMAO (EDMONTON) NDB13.990°256
ZETDEVON (EDMONTON) NDB20150°292
ZZDCALMAR (EDMONTON) NDB25.8155°308
ZABLEDUC (EDMONTON) NDB28.7139°215
YEGEDMONTON VOR/DME29182°117.60
D3PONOKA INDUS NDB59.8166°363

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW08
 FIBRE211mi95°
RW16
 NOPOK211mi107°
RW34
 VOGOD210mi356°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08NOTUP (119°)NOTUP
OVAGI (5mi, 188°) 4000ft
 RNAVOVAGI 4000ft
EPRIK (4mi, 105°) 3900ft
NALVI (3mi, 96°) 3090ft
CZVL (3mi, 99°) 2292ft
(6238mi, 115°) 3300ft
OMSEN (6226mi, 295°) 4600ft
OMSEN (turn)
RW16LOPSO (138°)LOPSO
GABDU (5mi, 90°) 4000ft
RW16VOKUS (217°)VOKUS
GABDU (5mi, 270°) 4000ft
 RNAVGABDU 4000ft
TUDIL (6mi, 180°) 3900ft
CZVL (5mi, 173°) 2288ft
(6238mi, 115°) 3300ft
APDAS (6230mi, 295°) 4600ft
APDAS (turn)
RW26LEPIL (292°)LEPIL
DEBGA (5mi, 17°) 4400ft
RW26UKSOT (260°)UKSOT
DEBGA (5mi, 197°) 4400ft
 RNAVDEBGA 4400ft
VOBUR (6mi, 276°) 3500ft
CZVL (4mi, 274°) 2272ft
UKULA (4mi, 278°)
XUDMI (8mi, 308°) 4600ft
XUDMI (turn)
RW34LORMI (41°)LORMI
TANBI (5mi, 90°) 4400ft
RW34REVOG (323°)REVOG
TANBI (5mi, 270°) 4400ft
 RNAVTANBI 4400ft
BOMOP (3mi, 0°) 4400ft
GUBUS (3mi, 360°) 3900ft
CZVL (5mi, 7°) 2306ft
ATUBO (7mi, 354°) 4600ft
ATUBO (turn)
