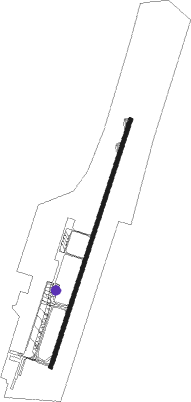

Abidjan - Abidjan Felix Houphouet Boigny Intl
Airport details
| Country | Ivory Coast |
| State | Abidjan |
| Region | DI |
| Airspace | Dakar Ctr |
| Municipality | Port-Bouët |
| Elevation | 20ft (6m) |
| Timezone | GMT +0 |
| Coordinates | 5.24914, -3.93400 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.30 |
| ICAO code | DIAP |
| IATA code | ABJ |
| FAA code | n/a |
Communication
| Abidjan Felix Houphouet Boigny Intl Tower | 118.100 |
| Abidjan Felix Houphouet Boigny Intl Approach | 121.100 |
Approach frequencies
| ILS-cat-II | RW21 | 110.3 | 18.00mi |
| 3° GS | RW21 | 110.3 | 18.00mi |
Nearby Points of Interest:
Ville historique de Grand-Bassam
-Grand-Bassam
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| AD | ABIDJAN VOR/DME | 2.2 | 27° | 114.30 |
Departure and arrival routes
| Transition altitude | 2700ft |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| SEMA2V | 118.7 | 18° | |
| PEDR2V | 165.4 | 80° | |
| POME2V | 79.3 | 100° | |
| ONPA3V | 149.9 | 115° | |
| POKS3V | 150.5 | 127° | |
| YAMO2V | 130.9 | 139° | |
| DEGA2V | 81.5 | 156° | |
| GUPE3V | 152.6 | 189° | |
| ZANO2V | 82.2 | 199° | |
| TUSE2V | 76.2 | 216° | |
| ONES1V | 71.0 | 263° | |
| SESI2V | 58.6 | 288° | |
| EGAD2V | 60.5 | 293° | |
| INAK2V | 109.2 | 329° | |
| RW03 | |||
| SEMA3T | 118.7 | 18° | |
| GANO2T | 24.5 | 74° | |
| PEDR1N, ONEL2G | 165.4 | 80° | |
| POME1N, NATN2G | 79.3 | 100° | |
| ONPA1N, NIVA2G | 149.9 | 115° | |
| IKTO2G | 24.8 | 115° | |
| MOKA2G, POKS1N | 150.5 | 127° | |
| MOTU2G, YAMO1N | 130.9 | 139° | |
| LITE2G, DEGA1N | 81.5 | 156° | |
| ODSA2G | 25.4 | 178° | |
| KONE2G | 152.6 | 189° | |
| VADA2G | 82.2 | 199° | |
| UDRA2R | 76.2 | 216° | |
| TAVA2R, ONES1K | 71.0 | 263° | |
| SESI1K, SENO2R | 58.6 | 288° | |
| PITN2R, EGAD1K | 60.5 | 293° | |
| PISR2T, INAK1K | 109.2 | 329° | |
| RW21 | |||
| GANO2A | 24.5 | 74° | |
| PEDR1L | 165.4 | 80° | |
| ONEL2A | 24.6 | 84° | |
| POME1L | 79.3 | 100° | |
| NATN2A | 24.7 | 103° | |
| IKTO2A | 24.8 | 115° | |
| ONPA1L | 149.9 | 115° | |
| NIVA2A | 24.8 | 120° | |
| POKS1L | 150.5 | 127° | |
| MOKA2A | 25.0 | 131° | |
| YAMO1L | 130.9 | 139° | |
| MOTU2A | 25.1 | 143° | |
| DEGA1L | 81.5 | 156° | |
| LITE2D | 25.3 | 159° | |
| ODSA2D | 25.4 | 178° | |
| GUPE4D | 152.6 | 189° | |
| KONE2D | 25.5 | 190° | |
| ZANO3D | 82.2 | 199° | |
| VADA2D | 25.5 | 199° | |
| TUSE3D | 76.2 | 216° | |
| UDRA2D | 25.5 | 216° | |
| ONES1P, TAVA2D | 71.0 | 263° | |
| SENO2B | 25.2 | 285° | |
| SESI1P | 58.6 | 288° | |
| PITN2B | 25.1 | 290° | |
| EGAD1P | 60.5 | 293° | |
| PISR2B | 25.0 | 326° | |
| INAK1P | 109.2 | 329° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW03 | GALIS (47°) | GALIS 2200ft TUTEL (5mi, 112°) 2200ft |
| RW03 | RAKOL (357°) | RAKOL 2200ft TUTEL (5mi, 293°) 2200ft |
| RW03 | TUTEL (21°) | TUTEL 2200ft |
| RNAV | TUTEL 2200ft AP501 (4mi, 22°) 2200ft DIAP (7mi, 21°) 71ft AP503 (5mi, 24°) RAKOL (17mi, 185°) 2200ft | |
| RW21 | AKLOS (182°) | AKLOS 2200ft DIPRI (5mi, 113°) 2200ft |
| RW21 | BINOK (224°) | BINOK 2200ft DIPRI (5mi, 292°) 2200ft |
| RW21 | DIPRI (203°) | DIPRI 2200ft |
| RNAV | DIPRI 2200ft AP502 (5mi, 202°) 2200ft DIAP (9mi, 204°) 61ft AP504 (3mi, 199°) BINOK (17mi, 39°) 2200ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| GANO2T | TUTEL | VHF | right | 207 (27)° | 2200ft - 11000ft | DME 5.0mi | 220 |
| GUPE4D | DIPRI | VHF | left | 27 (207)° | 2200ft - 11000ft | DME 5.0mi | 220 |
| KONE2D | DIPRI | VHF | left | 27 (207)° | 2200ft - 11000ft | DME 5.0mi | 220 |
| LITE2D | DIPRI | VHF | left | 27 (207)° | 2200ft - 11000ft | DME 5.0mi | 220 |
| ODSA2D | DIPRI | VHF | left | 27 (207)° | 2200ft - 11000ft | DME 5.0mi | 220 |
| PISR2T | TUTEL | VHF | right | 207 (27)° | 2200ft - 11000ft | DME 5.0mi | 220 |
| SEMA3T | TUTEL | VHF | right | 207 (27)° | 2200ft - 11000ft | DME 5.0mi | 220 |
| TAVA2D | DIPRI | VHF | left | 27 (207)° | 2200ft - 11000ft | DME 5.0mi | 220 |
| TUSE3D | DIPRI | VHF | left | 27 (207)° | 2200ft - 11000ft | DME 5.0mi | 220 |
| UDRA2D | DIPRI | VHF | left | 27 (207)° | 2200ft - 11000ft | DME 5.0mi | 220 |
| VADA2D | DIPRI | VHF | left | 27 (207)° | 2200ft - 11000ft | DME 5.0mi | 220 |
| ZANO3D | DIPRI | VHF | left | 27 (207)° | 2200ft - 11000ft | DME 5.0mi | 220 |
| *) magnetic outbound (inbound) holding course | |||||||
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
