Airports for X-Plane

Abuja - Nnamdi Azikiwe Intl

Airport details

CountryNigeria
StateFederal Capital Territory
RegionDN
AirspaceKano Ctr
MunicipalityMunicipal Area Council
Elevation1123ft (342m)
TimezoneGMT +1
Coordinates9.00068, 7.26901
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeDNAA
IATA codeABV
FAA coden/a

Communication

Nnamdi Azikiwe Intl ATIS127.050
Nnamdi Azikiwe Intl DEL118.900
Nnamdi Azikiwe Intl Ground Control121.900
Nnamdi Azikiwe Intl Tower118.600
Nnamdi Azikiwe Intl Approach119.800
Nnamdi Azikiwe Intl Departure127.900

Approach frequencies

ILS-cat-IIRW22109.318.00mi
ILS-cat-IIRW04111.918.00mi
3° GSRW22109.318.00mi
3° GSRW04111.918.00mi

Runway info

Runway 04 / 22
 length3624m (11890ft)
 bearing35° / 215°
 width60m (197ft)
 surfaceasphalt
 blast zone63m (207ft) / 63m (207ft)

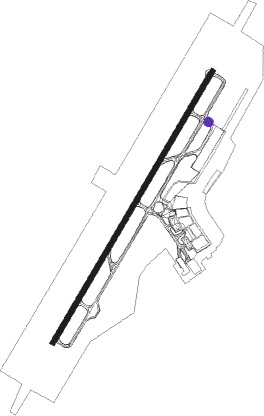

Airport layout - taxiway location D1


Taxiway locations

 A  A1  A2  A3  A4  A5  A6  A7
 B  B1  B2  B3  D1  D2
Parking locations

 C1  C2  C3  C4  D1  D2  D3  D4
 D5  D6  G1  G10  G11  G12  G19  G2
 G20  G21  G22  G23  G24  G3  G4  G5
 G6

Nearby beacons

codeidentifierdistbearingfrequency
ABCABUJA VOR/DME2.423°116.30
MNMINNA NDB61.6310°350
MNAMINNA VOR/DME62308°115.10

Departure and arrival routes

Transition altitude5000ft
Transition level6500ft
SID end pointsdistanceoutbound heading
RW04
 OXOR1S52mi7°
 IKVA1S48mi185°
 IKSE1S48mi236°
RW22
 OXOR1Q52mi7°
 IKVA1Q48mi185°
 IKSE1Q48mi236°

STAR starting pointsdistanceinbound heading
RW04
 MESE1R48.281°
 UBEM1R49.4103°
 OXOR1R52.2187°
 LUKR1R66.8314°
 NANU1R48.5336°
RW22
 MESE1N48.281°
 UBEM1N49.4103°
 OXOR1N52.2187°
 LUKR1N66.8314°
 NANU1N48.5336°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04DIRDU (59°)DIRDU 5000ft
DENUP (5mi, 125°) 3600ft
RW04KIGSO (16°)KIGSO 5000ft
DENUP (5mi, 305°) 3600ft
 RNAVDENUP 3600ft
AA430 (5mi, 35°) 3300ft
DNAA (8mi, 39°) 1136ft
(694mi, 219°) 3000ft
AA412 (693mi, 38°) 3000ft
DIRDU (13mi, 215°) 5000ft
DIRDU (turn) 5000ft
RW22PIVRA (214°)PIVRA 5000ft
OGBIS (4mi, 215°) 3600ft
RW22POKMO (191°)POKMO 5000ft
OGBIS (5mi, 125°) 3600ft
RW22USTEB (235°)USTEB 5000ft
OGBIS (5mi, 305°) 3600ft
 RNAVOGBIS 3600ft
AA400 (5mi, 215°) 3200ft
DNAA (7mi, 211°) 1171ft
(694mi, 219°) 2500ft
AA412 (693mi, 38°) 2500ft
AA410 (6mi, 35°) 2500ft
POKMO (6mi, 35°) 5000ft
POKMO (turn) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
MESE1NPOKMOVHFleft305 (125)°> 5000ft1.0min timed230
MESE1RDIRDUVHFleft305 (125)°> 5000ft1.0min timed230
UBEM1NPOKMOVHFleft305 (125)°> 5000ft1.0min timed230
UBEM1RDIRDUVHFleft305 (125)°> 5000ft1.0min timed230
*) magnetic outbound (inbound) holding course
