Airports for X-Plane

Akure

Airport details

CountryNigeria
StateOndo State
RegionDN
AirspaceKano Ctr
MunicipalityAkure North
Elevation1100ft (335m)
TimezoneGMT +1
Coordinates7.24674, 5.30098
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeDNAK
IATA codeAKR
FAA coden/a

Communication

Akure Tower118.200
Nearby Points of Interest:
Idanre Hill

Runway info

Runway 03 / 21
 length2814m (9232ft)
 bearing24° / 204°
 width45m (148ft)
 surfaceasphalt

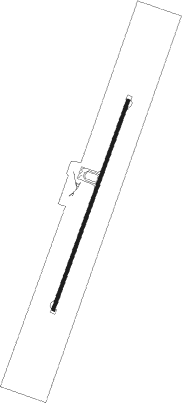

Airport layout


Parking locations

 New

Nearby beacons

codeidentifierdistbearingfrequency
AKAKURE NDB1.2204°276
OKOKITIPUPA NDB53.8215°345
BENBENIN VOR/DME59.8165°116.50

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03EDGEP (24°)EDGEP
AK901 (5mi, 24°) 3500ft
RW03GEBVI (47°)GEBVI
AK901 (5mi, 114°) 3500ft
RW03XUTUK (1°)XUTUK
AK901 (5mi, 294°) 3500ft
 RNAVAK901 3500ft
AK900 (5mi, 24°) 3000ft
DNAK (7mi, 24°) 1115ft
XUTUK (13mi, 181°)
XUTUK (turn) 3500ft
RW21EDBAM (228°)EDBAM
IVLIM (5mi, 294°) 3500ft
RW21GUGOK (181°)GUGOK
IVLIM (5mi, 114°) 3500ft
RW21USNEP (204°)USNEP
IVLIM (5mi, 204°) 3500ft
 RNAVIVLIM 3500ft
AK800 (5mi, 204°) 3000ft
DNAK (7mi, 204°) 1158ft
EDBAM (13mi, 48°)
IVLIM (5mi, 294°)
IVLIM (turn) 3500ft
