Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

Kaduna

Airport details

Country	Nigeria
State	Kaduna State
Region	DN
Airspace	Kano Ctr
Municipality	Afaka
Elevation	2073ft (632m)
Timezone	GMT +1
Coordinates	10.69587, 7.32015
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	DNKA
IATA code	KAD
FAA code	n/a

Communication

Kaduna Approach	122.300
Kaduna Approach	122.600

Approach frequencies

ILS-cat-I	RW05	110.1	18.00mi
3° GS	RW05	110.1	18.00mi

Runway info

Runway 05 / 23
	length	3005m (9859ft)
	bearing	50° / 230°
	width	60m (197ft)
	surface	asphalt
	blast zone	119m (390ft) / 119m (390ft)

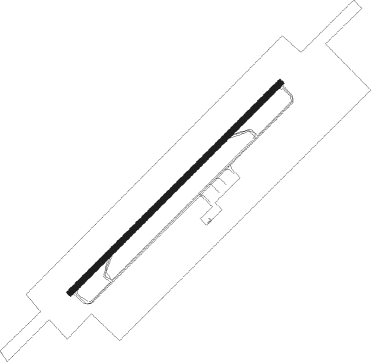

Airport layout

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
KC	NEW KADUNA NDB	1.3	230°	330
KDA	KADUNA VOR/DME	1.4	230°	115.30
KUA	KADUNA VOR	9.6	128°	114.70
ZA	ZARIA NDB	34.8	40°	336

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW05	ARKUN (73°)	ARKUN BIGUG (5mi, 139°) 5000ft
RW05	VOMLU (27°)	VOMLU BIGUG (5mi, 319°) 5000ft
RW05	VOSUV (50°)	VOSUV BIGUG (5mi, 50°) 5000ft
	RNAV	BIGUG 5000ft KA400 (5mi, 50°) 4000ft DNKA (7mi, 50°) 2086ft KA600 (8mi, 266°) ARKUN (5mi, 230°) BIGUG (5mi, 139°) BIGUG (turn) 5000ft
RW23	AKLUR (253°)	AKLUR VOPVO (5mi, 319°) 5000ft
RW23	EVKAT (207°)	EVKAT VOPVO (5mi, 139°) 5000ft
RW23	RUSNA (230°)	RUSNA VOPVO (5mi, 230°) 5000ft
	RNAV	VOPVO 5000ft KA500 (5mi, 230°) 4000ft DNKA (7mi, 230°) 2120ft KA700 (8mi, 13°) EVKAT (5mi, 50°) VOPVO (5mi, 139°) VOPVO (turn) 5000ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
