Airports for X-Plane

Dresden

Airport details

CountryGermany
StateSaxony
RegionED
AirspaceMunich Ctr
MunicipalityDresden
Elevation751ft (229m)
TimezoneGMT +1
Coordinates51.13284, 13.77194
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEDDC
IATA codeDRS
FAA coden/a

Communication

Dresden Dresden ATIS118.880
Dresden Dresden Apron121.755
Dresden Dresden Ground121.980
Dresden Dresden Tower122.930
Dresden Munich Radar125.875

Approach frequencies

ILS-cat-IIIRW22109.7518.00mi
ILS-cat-IRW04110.518.00mi
3° GSRW04110.518.00mi
3° GSRW22109.7518.00mi

Runway info

Runway 04 / 22
 length2847m (9341ft)
 bearing54° / 234°
 width60m (197ft)
 surfaceconcrete
 displ threshold0m (0ft) / 300m (984ft)

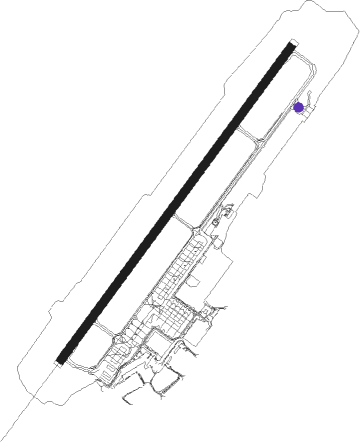

Airport layout - parking location Hangar


Taxiway locations

 A  B  C  D  E  H
Parking locations

 Apron  Hangar

Nearby beacons

codeidentifierdistbearingfrequency
DNDDME0.5257°115.40
FSDRESDEN NDB4.652°374
DRNDRESDEN VOR/DME9.6236°114.35
HDOHERMSDORF VOR/DME25.6109°108.65
HOZHOLZDORF TACAN43.6318°117.25
HOZHOLZDORF NDB45.8313°406
KLFKLASDORF VOR/DME53.8347°115.15
NERNERATOVICE VOR/DME56.2132°112.25
VMASLOVICE (VODOCHODY) NDB59.4147°416
LVRATA (KARLOVY VARY) NDB64.5222°365
KDKBELY NDB67.4139°300

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW04
 KOBU8E29mi52°
 HDO8E26mi109°
 DEKO5E22mi118°
 LALU5E20mi162°
 MARE7E26mi199°
 ABKI3E41mi235°
 BEBE7E25mi291°
 OSKA9E20mi336°
RW22
 KOBU1W29mi52°
 HDO1W26mi109°
 DEKO6W22mi118°
 LALU4W20mi162°
 MARE5W26mi199°
 ABKI3W41mi235°
 BEBE7W25mi291°
 OSKA3D, OSKA7W20mi336°

STAR starting pointsdistanceinbound heading
RW04
 OSKA4B20.4156°
RW22
 OSKA4A20.4156°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04ABK04 (15°)ABKIS
DC428 (8mi, 19°)
DC429 (18mi, 20°) 5000ft
RIVSA (6mi, 74°) 5000ft
DC422 (4mi, 115°) 5000ft
DC420 (8mi, 234°) 5000ft
DC430 (6mi, 118°) 4000ft
DC431 (2mi, 54°) 4000ft
RW04DRN (56°)DRN 5000ft
DC491 (3mi, 354°)
DC492 (3mi, 299°) 5000ft
DC493 (9mi, 234°) 5000ft
DC431 (5mi, 118°) 4000ft
RW04GAR04 (15°)GARKI
DC457 (8mi, 158°)
DC453 (19mi, 234°)
DC450 (16mi, 234°) 5000ft
DC430 (6mi, 299°) 4000ft
DC431 (2mi, 54°) 4000ft
RW04HDO04 (15°)HDO
DC453 (21mi, 280°)
DC450 (16mi, 234°) 5000ft
DC430 (6mi, 299°) 4000ft
DC431 (2mi, 54°) 4000ft
RW04OSK04 (15°)OSKAN
EPILA (16mi, 179°)
DC420 (18mi, 234°) 5000ft
DC430 (6mi, 118°) 4000ft
DC431 (2mi, 54°) 4000ft
RW04RIV04 (15°)RIVSA
DC422 (4mi, 115°)
DC420 (8mi, 234°) 5000ft
DC430 (6mi, 118°) 4000ft
DC431 (2mi, 54°) 4000ft
 RNAVDC431 4000ft
GOMPA (6mi, 54°) 4000ft
EDDC (11mi, 55°) 804ft
DC480 (5mi, 52°) 1160ft
(3154mi, 195°) 2500ft
DC494 (3157mi, 15°)
DC495 (5mi, 251°)
D009J (2mi, 198°) 4000ft
DRN (10mi, 199°) 5000ft
RW22ABK22 (15°)ABKIS
DC450 (23mi, 69°)
DC454 (18mi, 54°)
DC457 (16mi, 54°)
DC437 (6mi, 299°) 4000ft
DC436 (4mi, 234°) 3000ft
RW22DRN (56°)DRN 5000ft
DC458 (17mi, 69°) 4000ft
DC459 (5mi, 54°) 4000ft
DC436 (5mi, 299°) 3000ft
RW22GAR22 (15°)GARKI
DC437 (4mi, 235°) 4000ft
DC436 (4mi, 234°) 3000ft
RW22GARKI (234°)GARKI 5000ft
DC437 (4mi, 235°) 4000ft
DC436 (4mi, 234°) 3000ft
RW22HDO22 (15°)HDO
DC460 (15mi, 280°)
DC454 (5mi, 299°)
DC457 (16mi, 54°)
DC437 (6mi, 299°) 4000ft
DC436 (4mi, 234°) 3000ft
RW22OSK22 (15°)OSKAN
DC410 (14mi, 195°)
EPILA (3mi, 118°)
DC427 (16mi, 54°)
DC437 (6mi, 118°) 4000ft
DC436 (4mi, 234°) 3000ft
RW22RIV22 (15°)RIVSA
EPILA (11mi, 72°)
DC427 (16mi, 54°)
DC437 (6mi, 118°) 4000ft
DC436 (4mi, 234°) 3000ft
 RNAVDC436 3000ft
OKILO (4mi, 234°) 3000ft
EDDC (8mi, 233°) 750ft
(3150mi, 195°) 1160ft
DRN (3141mi, 15°) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
OSKA4AGARKIVHFleft38 (218)°> 5000ft1.0min timedICAO rules
OSKA4BDRNNDBleft218 (38)°> 5000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
