Airports4XP | EDDM | Munich - Muenchen Franz-josef-strauss

Munich - Muenchen Franz-josef-strauss

Airport details

Country	Germany
State	Bavaria
Region	ED
Airspace	Munich Ctr
Municipality	Oberding
Elevation	1481ft (451m)
Timezone	GMT +1
Coordinates	48.35378, 11.78609
Magnetic var	4.4°
Type	land
Available since	X-Plane v10.40
ICAO code	EDDM
IATA code	MUC
FAA code	n/a

Communication

Muenchen Franz-Josef-Strauss Muenchen ATIS	123.130
Muenchen Franz-Josef-Strauss Muenchen Delivery	121.730
Muenchen Franz-Josef-Strauss Muenchen Ground	121.980
Muenchen Franz-Josef-Strauss Muenchen Tower North	118.705
Muenchen Franz-Josef-Strauss Muenchen Tower South	120.505
Muenchen Franz-Josef-Strauss Muenchen Approach	123.905
Muenchen Franz-Josef-Strauss Muenchen Depature	123.905

Approach frequencies

ILS-cat-III	RW08L	109.5	18.00mi
ILS-cat-III	RW26R	108.7	18.00mi
ILS-cat-III	RW08R	109.3	18.00mi
ILS-cat-III	RW26L	108.3	18.00mi
3° GS	RW08L	109.5	18.00mi
3° GS	RW26R	108.7	18.00mi
3° GS	RW08R	109.3	18.00mi
3° GS	RW26L	108.3	18.00mi

Nearby Points of Interest:

Birkeneck

Zum Alten Wirt

Abensbergerdenkmal

Jägersteig 5

Königsstein (Freising)

Heiliggeistspital (Freising)

Fürstbischöfliches Lyceum

Eckherhaus

Untere Hauptstraße 7 (Freising)

Rathaus

Mariensäule

Ziererhaus

Vimy Kaserne

Hofkapelle

St. Stephanus

Getreidekasten

Filialkirche Pauli Bekehrung (Kleinviecht)

Hofkapelle Gut Marienhof (Dietersheim, Eching)

St. Laurentius (Haindlfing)

Kapelle (Palzing)

Forschungsreaktor München

Wallfahrtskirche St. Ulrich

Wohnstallhaus (Grucking)

Bildstock (Ismaning)

Schloss Ottenburg

Runway info

Runway 08L / 26R
	length	3989m (13087ft)
	bearing	86° / 266°
	width	60m (197ft)
	surface	concrete
Runway 08R / 26L
	length	3989m (13087ft)
	bearing	86° / 266°
	width	60m (197ft)
	surface	concrete

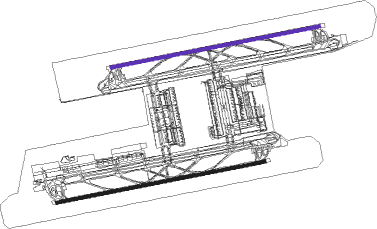

Airport layout - runway 08L / 26R

Taxiway locations

Parking locations

Recommended scenery file

Type	3D
Author	meikelm
Released	15 Aug 2024
Included since	X-Plane v12.1.4
Features	› has ATC flow › has taxi route › has ground routes

Nearby beacons

code	identifier	dist	bearing	frequency
DMN	DME	0.8	31°	116
DMS	DME	0.8	211°	115
MNE	MUNICH NDB	4.3	271°	369
MSW	MUNICH NDB	4.6	91°	400
MNW	MUNICH NDB	5.2	81°	338
MSE	MUNICH NDB	5.4	261°	358
OTT	OTTERSBERG VOR/DME	10.4	170°	112.30
MIQ	MIKE NDB	15	319°	426
MAH	MAISACH VOR/DME	19.7	259°	115.20
IGL	INGOLSTADT TACAN	23.5	329°	111.40
IGL	INGOLSTADT NDB	23.7	340°	345
OBI	OBERPFAFFENHOFEN NDB	25.8	241°	429
WLD	WALDA VOR/DME	29.4	289°	112.80
NEU	NEUBURG TACAN	31.4	302°	108.90
AUG	DME	34.1	275°	115.90
AGB	AUGSBURG NDB	34.2	275°	318
LCH	LECHFELD TACAN	38.3	260°	108.80
RDG	RODING VOR/DME	50.6	47°	114.70
HFX	HOHENFELS NDB	52	5°	286
RTT	RATTENBERG NDB	55.7	171°	303

Departure and arrival routes

Transition altitude

5000ft

Transition level

60ft

SID end points		distance	outbound heading
RW08L
	AKIN1Q	27mi	40°
	ANKE9Q	16mi	45°
	BIBA2Q	39mi	87°
	KIRD2Q	42mi	98°
	ROTA4Q	33mi	122°
	VAVO3Q	29mi	139°
	TURB7Q	27mi	160°
	TULS2Q	39mi	180°
	OBAX2T	21mi	199°
	MERS2T, MERS4Q	37mi	243°
	ALG2Q	65mi	257°
	OLAS2Q	63mi	265°
	RIDA7Q	42mi	283°
	GIVM6Q	27mi	310°
	MIQ9Q	15mi	319°
	INPU3Q	21mi	322°
	EVIV4Q	19mi	345°
RW08R
	AKIN1E	27mi	40°
	ANKE9E	16mi	45°
	BIBA2E	39mi	87°
	KIRD2E	42mi	98°
	ROTA4E	33mi	122°
	VAVO3E	29mi	139°
	TURB6E	27mi	160°
	TULS3E	39mi	180°
	OBAX2P	21mi	199°
	MERS2P, MERS4E	37mi	243°
	ALG2E	65mi	257°
	OLAS2E	63mi	265°
	RIDA7E	42mi	283°
	GIVM6E	27mi	310°
	MIQ8E	15mi	319°
	INPU3E	21mi	322°
	EVIV4E	19mi	345°
RW26L
	AKIN1S	27mi	40°
	ANKE7S	16mi	45°
	BIBA3W, BIBA3S	39mi	87°
	KIRD3W, KIRD3S	42mi	98°
	ROTA3W, ROTA3S	33mi	122°
	VAVO3W, VAVO3S	29mi	139°
	TURB7S, TURB7W	27mi	160°
	TULS7S, TULS4W	39mi	180°
	OBAX6S	21mi	199°
	MERS5S	37mi	243°
	ALG2S	65mi	257°
	OLAS2S	63mi	265°
	RIDA6S	42mi	283°
	GIVM6S	27mi	310°
	MIQ8S	15mi	319°
	INPU2S	21mi	322°
	EVIV4S	19mi	345°
RW26R
	AKIN1N	27mi	40°
	ANKE9N	16mi	45°
	BIBA4N	39mi	87°
	KIRD4N	42mi	98°
	ROTA4N	33mi	122°
	VAVO4N	29mi	139°
	TURB7N	27mi	160°
	TULS4N	39mi	180°
	OBAX6N	21mi	199°
	MERS6N	37mi	243°
	ALG2N	65mi	257°
	OLAS2N	63mi	265°
	RIDA6N	42mi	283°
	GIVM1N	27mi	310°
	MIQ9N	15mi	319°
	INPU2N	21mi	322°
	EVIV5N	19mi	345°

STAR starting points		distance	inbound heading
RW08 (ALL)
	BETO1A	24.4	57°
	ROKI1A	25.3	105°
	LULA2C	71.9	224°
	VESU2C	79.8	229°
	NIRG2C	79.2	234°
	LAND2A	24.2	244°
	BAGS1C	101.7	277°
	VATE1C	101.0	289°
	NAPS4A	25.6	291°
	RAST1C	82.3	298°
RW26 (ALL)
	BETO1B	24.4	57°
	ROKI1B	25.3	105°
	LEVB1D	65.7	116°
	ELMO1D	99.1	118°
	LAND2B	24.2	244°
	NAPS1B	25.6	291°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW08L	BET08 (14°)	BETOS DM472 (5mi, 64°) DM476 (25mi, 86°) DM457 (7mi, 351°) DM450 (35mi, 266°) DM450 (turn) MAGAT (14mi, 66°) 5000ft
RW08L	DM420 (94°)	DM420 DM420 (turn) MAGAT (14mi, 100°) 5000ft
RW08L	DM450 (76°)	DM450 DM450 (turn) MAGAT (14mi, 66°) 5000ft
RW08L	LAN08 (14°)	LANDU DM428 (7mi, 201°) DM420 (43mi, 266°) DM420 (turn) MAGAT (14mi, 100°) 5000ft
RW08L	MIQ (139°)	MIQ 5000ft DM421 (14mi, 240°) DM431 (5mi, 170°) MAGAT (6mi, 85°) 5000ft
RW08L	NAP08 (14°)	NAPSA DM458 (10mi, 324°) DM450 (42mi, 266°) DM450 (turn) MAGAT (14mi, 66°) 5000ft
RW08L	ROK08 (14°)	ROKIL DM412 (33mi, 86°) DM427 (7mi, 170°) DM420 (35mi, 266°) DM420 (turn) MAGAT (14mi, 100°) 5000ft
	RNAV	MAGAT 5000ft EDDM (12mi, 88°) 1517ft DM551 (2mi, 69°) (2969mi, 194°) 1900ft MIQ (2979mi, 13°) 5000ft
RW08R	BET08 (14°)	BETOS DM472 (5mi, 64°) DM476 (25mi, 86°) DM457 (7mi, 351°) DM450 (35mi, 266°) DM450 (turn) BEGEN (13mi, 69°) 5000ft
RW08R	DM420 (94°)	DM420 DM420 (turn) BEGEN (14mi, 104°) 5000ft
RW08R	DM450 (76°)	DM450 DM450 (turn) BEGEN (13mi, 69°) 5000ft
RW08R	LAN08 (14°)	LANDU DM428 (7mi, 201°) DM420 (43mi, 266°) DM420 (turn) BEGEN (14mi, 104°) 5000ft
RW08R	NAP08 (14°)	NAPSA DM458 (10mi, 324°) DM450 (42mi, 266°) DM450 (turn) BEGEN (13mi, 69°) 5000ft
RW08R	OTT (350°)	OTT 5000ft DM451 (19mi, 275°) DM441 (5mi, 350°) BEGEN (6mi, 85°) 5000ft
RW08R	ROK08 (14°)	ROKIL DM412 (33mi, 86°) DM427 (7mi, 170°) DM420 (35mi, 266°) DM420 (turn) BEGEN (14mi, 104°) 5000ft
	RNAV	BEGEN 5000ft EDDM (12mi, 84°) 1536ft DM561 (turn) (2968mi, 194°) 1900ft OTT (2958mi, 14°) 5000ft
RW26L	BET26 (14°)	BETOS DM452 (13mi, 50°) DM459 (34mi, 86°) DM459 (turn) NELBI (14mi, 281°) 5000ft
RW26L	DM429 (257°)	DM429 DM429 (turn) NELBI (14mi, 247°) 5000ft
RW26L	DM459 (275°)	DM459 DM459 (turn) NELBI (14mi, 281°) 5000ft
RW26L	LAN26 (14°)	LANDU DM411 (31mi, 266°) DM422 (7mi, 170°) DM429 (34mi, 86°) DM429 (turn) NELBI (14mi, 247°) 5000ft
RW26L	NAP26 (14°)	NAPSA DM463 (31mi, 266°) DM452 (9mi, 350°) DM459 (34mi, 86°) DM459 (turn) NELBI (14mi, 281°) 5000ft
RW26L	OTT (350°)	OTT 5000ft DM458 (18mi, 75°) DM448 (5mi, 351°) NELBI (6mi, 266°) 5000ft
RW26L	ROK26 (14°)	ROKIL DM421 (8mi, 127°) DM429 (42mi, 86°) DM429 (turn) NELBI (14mi, 247°) 5000ft
	RNAV	NELBI 5000ft EDDM (12mi, 268°) 1520ft DM541 (2mi, 249°) (2967mi, 194°) 1900ft OTT (2958mi, 14°) 5000ft
RW26R	BET26 (14°)	BETOS DM452 (13mi, 50°) DM459 (34mi, 86°) DM459 (turn) GUDEG (14mi, 285°) 5000ft
RW26R	DM429 (257°)	DM429 DM429 (turn) GUDEG (13mi, 250°) 5000ft
RW26R	DM459 (275°)	DM459 DM459 (turn) GUDEG (14mi, 285°) 5000ft
RW26R	LAN26 (14°)	LANDU DM411 (31mi, 266°) DM422 (7mi, 170°) DM429 (34mi, 86°) DM429 (turn) GUDEG (13mi, 250°) 5000ft
RW26R	MIQ (139°)	MIQ 5000ft DM428 (26mi, 98°) DM438 (5mi, 171°) GUDEG (6mi, 266°) 5000ft
RW26R	NAP26 (14°)	NAPSA DM463 (31mi, 266°) DM452 (9mi, 350°) DM459 (34mi, 86°) DM459 (turn) GUDEG (14mi, 285°) 5000ft
RW26R	ROK26 (14°)	ROKIL DM421 (8mi, 127°) DM429 (42mi, 86°) DM429 (turn) GUDEG (13mi, 250°) 5000ft
	RNAV	GUDEG 5000ft EDDM (12mi, 264°) 1499ft DM531 (turn) (2968mi, 194°) 1900ft MIQ (2979mi, 13°) 5000ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
BETO1A	BETOS	VHF	right	247 (67)°	> 5000ft	1.0min timed	ICAO rules
BETO1A	OTT	NDB	right	260 (80)°	> 5000ft	1.0min timed	ICAO rules
BETO1B	BETOS	VHF	right	247 (67)°	> 5000ft	1.0min timed	ICAO rules
BETO1B	OTT	NDB	right	260 (80)°	> 5000ft	1.0min timed	ICAO rules
LAND2A	LANDU	VHF	left	33 (213)°	> 5000ft	1.0min timed	ICAO rules
LAND2A	MIQ	FIX	right	260 (80)°	> 5000ft	1.0min timed	ICAO rules
LAND2B	LANDU	VHF	left	33 (213)°	> 5000ft	1.0min timed	ICAO rules
LAND2B	MIQ	FIX	right	260 (80)°	> 5000ft	1.0min timed	ICAO rules
NAPS1B	NAPSA	VHF	left	93 (273)°	> 5000ft	1.0min timed	ICAO rules
NAPS1B	OTT	NDB	right	260 (80)°	> 5000ft	1.0min timed	ICAO rules
NAPS4A	NAPSA	VHF	left	93 (273)°	> 5000ft	1.0min timed	ICAO rules
NAPS4A	OTT	NDB	right	260 (80)°	> 5000ft	1.0min timed	ICAO rules
ROKI1A	MIQ	FIX	right	260 (80)°	> 5000ft	1.0min timed	ICAO rules
ROKI1A	ROKIL	VHF	right	306 (126)°	> 5000ft	1.0min timed	ICAO rules
ROKI1B	MIQ	FIX	right	260 (80)°	> 5000ft	1.0min timed	ICAO rules
ROKI1B	ROKIL	VHF	right	306 (126)°	> 5000ft	1.0min timed	ICAO rules
*) magnetic outbound (inbound) holding course

Actual weather data

METAR EDDM 060020Z AUTO 07005KT 9999 FEW010 OVC025 06/05 Q1013 NOSIG

TAF EDDM 052300Z 0600/0706 03006KT 9999 FEW009 BKN025 PROB40 TEMPO 0600/0608 BKN009 BECMG 0617/0619 VRB03KT BECMG 0704/0706 05005KT

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
