Airports for X-Plane

Leipzig - Leipzig-halle

Airport details

CountryGermany
StateSaxony
RegionED
AirspaceMunich Ctr
MunicipalitySchkeuditz
Elevation459ft (140m)
TimezoneGMT +1
Coordinates51.42399, 12.23638
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEDDP
IATA codeLEJ
FAA coden/a

Communication

Leipzig-Halle EDDP ATIS123.950
Leipzig-Halle LEIPZIG DLV121.800
Leipzig-Halle LEIPZIG Ground Control121.675
Leipzig-Halle LEIPZIG Tower (S)121.100
Leipzig-Halle LEIPZIG Tower (N)125.950
Leipzig-Halle LEIPZIG Approach126.175
Leipzig-Halle LEIPZIG Departure126.175

Approach frequencies

ILS-cat-IIIRW08L108.5518.00mi
ILS-cat-IIIRW26R108.3518.00mi
ILS-cat-IIIRW26L110.318.00mi
ILS-cat-IIIRW08R111.7518.00mi
3° GSRW08L108.5518.00mi
3° GSRW26R108.3518.00mi
3° GSRW26L110.318.00mi
3° GSRW08R111.7518.00mi

Runway info

Runway 08L / 26R
 length3590m (11778ft)
 bearing87° / 267°
 width45m (148ft)
 surfaceconcrete
Runway 08R / 26L
 length3590m (11778ft)
 bearing87° / 267°
 width60m (197ft)
 surfaceconcrete

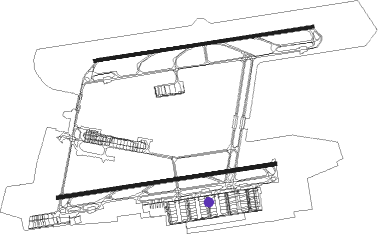

Airport layout - parking location 450


Taxiway locations
Parking locations

Nearby beacons

codeidentifierdistbearingfrequency
LLDSOUTH(LEIPZIG- DME0.5215°112.15
LNDNORTH(LEIPZIG- DME0.7314°113.50
SKZSCHKEUDITZ (LEIPZIG-HALLE) NDB1.4105°357
ZIGLEIPZIG NDB1.777°340
LEGLEIPZIG VOR/DME8.987°115.85
GOTGOTEM VOR/DME24.4263°115.25
ABUALTENBURG NDB27.9147°330
AGDDME28.4148°115.30
MAGMAGDEBURG VOR/DME38322°110.45
HOZHOLZDORF NDB38.268°406
CBCOCHSTEDT NDB39.3299°344
HOZHOLZDORF TACAN41.370°117.25
ERFERFURT VOR/DME47.1245°113.85

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW08L
 RUDA1Q33mi62°
 GOLA1Q, GOLA1M33mi210°
 NEVK1H, NEVK1Q49mi239°
 ORTA4Q43mi273°
 ODLU4Q30mi317°
 MAG4Q38mi322°
 UMBA4Q23mi351°
RW08R
 RUDA1E33mi62°
 GOLA1E, GOLA1L33mi210°
 NEVK1E, NEVK1L49mi239°
 ORTA4E43mi273°
 ODLU4E30mi317°
 MAG3E38mi322°
 UMBA4E23mi351°
RW26L
 RUDA1W33mi62°
 GOLA1S33mi210°
 NEVK1S49mi239°
 ORTA4S43mi273°
 ODLU5S30mi317°
 MAG5S38mi322°
 UMBA4S23mi351°
RW26R
 RUDA1N33mi62°
 GOLA1N33mi210°
 NEVK1N49mi239°
 ORTA4N43mi273°
 ODLU5N30mi317°
 MAG5N38mi322°
 UMBA4N23mi351°

STAR starting pointsdistanceinbound heading
RW08 (ALL)
 GOXL1R31.665°
 GOT1E, GOT1G24.483°
 KOJE1R27.897°
 LUXB1R24.5260°
 YAWO1R26.7293°
RW08L
 MAXE2N13.01°
RW08R
 MAXE2M13.01°
RW26 (ALL)
 GOXL1V31.665°
 GOT1L, GOT1W24.483°
 KOJE1V27.897°
 LUXB1V24.5260°
 YAWO1V26.7293°
RW26L
 LIPV2M14.5331°
RW26R
 LIPV2N14.5331°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08LMOWOX (88°)MOWOX 5000ft
DP431 (4mi, 87°) 4000ft
DP432 (4mi, 87°) 3000ft
 RNAVDP432 3000ft
MOKUL (4mi, 87°) 3000ft
EDDP (9mi, 89°) 468ft
ZIG (2mi, 77°)
(3151mi, 193°) 900ft
DP481 (3155mi, 13°)
DP981 (27mi, 286°)
DP982 (9mi, 230°)
DP983 (6mi, 156°)
MOWOX (6mi, 113°) 5000ft
RW08RSAHNU (86°)SAHNU 4000ft
DP441 (4mi, 87°) 4000ft
DP442 (4mi, 87°) 3000ft
 RNAVDP442 3000ft
GAMKO (4mi, 87°) 3000ft
EDDP (9mi, 85°) 478ft
SKZ (1mi, 105°)
(3150mi, 193°) 900ft
DP991 (3143mi, 13°)
DP992 (20mi, 249°)
DP993 (9mi, 306°)
GOT (6mi, 27°)
SAHNU (4mi, 63°) 4000ft
RW26LJOGGA (269°)JOGGA 5000ft
DP448 (4mi, 268°) 4000ft
DP447 (5mi, 268°) 3000ft
 RNAVDP447 3000ft
TAKOR (4mi, 267°) 3000ft
EDDP (8mi, 270°) 520ft
DP499 (2mi, 256°)
(3149mi, 193°) 900ft
DP962 (3148mi, 14°)
DP963 (11mi, 336°)
JOGGA (3mi, 268°) 5000ft
RW26RLOFTO (267°)LOFTO 4000ft
DP438 (4mi, 268°) 4000ft
DP437 (4mi, 268°) 3000ft
 RNAVDP437 3000ft
KOSAM (4mi, 267°) 3000ft
EDDP (9mi, 265°) 498ft
DP510 (2mi, 278°)
(3150mi, 193°) 900ft
DP971 (3154mi, 13°)
DP972 (17mi, 74°)
DP973 (6mi, 92°)
DP974 (6mi, 125°)
LOFTO (6mi, 217°) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
GOT1EGOTNDBright263 (83)°> 5000ft1.0min timedICAO rules
GOT1GGOTNDBright263 (83)°> 5000ft1.0min timedICAO rules
GOT1LGOTNDBright263 (83)°> 5000ft1.0min timedICAO rules
GOT1WGOTNDBright263 (83)°> 5000ft1.0min timedICAO rules
GOXL1RGOXLIVHFright262 (82)°> 8000ft1.0min timed230
GOXL1VGOXLIVHFright262 (82)°> 8000ft1.0min timed230
KOJE1RKOJECVHFleft262 (82)°> 8000ft1.0min timed230
KOJE1VKOJECVHFleft262 (82)°> 8000ft1.0min timed230
LUXB1RLUXBOVHFright120 (300)°> 8000ft1.0min timed230
LUXB1VLUXBOVHFright120 (300)°> 8000ft1.0min timed230
YAWO1RYAWOYVHFleft83 (263)°> 8000ft1.0min timed230
YAWO1VYAWOYVHFleft83 (263)°> 8000ft1.0min timed230
*) magnetic outbound (inbound) holding course

Actual weather data

METAR EDDP 072020Z AUTO 04006KT CAVOK 09/02 Q1018 NOSIG
TAF EDDP 071700Z 0718/0818 04006KT CAVOK BECMG 0806/0808 07011KT BECMG 0815/0818 07006KT
