Airports for X-Plane

Hannover

Airport details

CountryGermany
StateLower Saxony
RegionED
AirspaceBremen Ctr
MunicipalityLangenhagen
Elevation183ft (56m)
TimezoneGMT +1
Coordinates52.46345, 9.69139
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEDDV
IATA codeHAJ
FAA coden/a

Communication

Hannover Hannover ATIS136.575
Hannover Hannover Ground121.955
Hannover Hannover Tower120.405
Hannover Hannover Tower120.180
Hannover Director119.605
Hannover Bremen Radar131.330

Approach frequencies

ILS-cat-IIIRW09L108.318.00mi
ILS-cat-IIIRW27R108.918.00mi
ILS-cat-IRW09R108.718.00mi
ILS-cat-IRW27L109.9518.00mi
3° GSRW09L108.318.00mi
3° GSRW27R108.918.00mi
3° GSRW09R108.718.00mi
3° GSRW27L109.9518.00mi
Nearby Points of Interest:
Elisabeth Church from 1867 in Langenhagen
-
Schulenburger Landstraße 167-225
-
Corvinuskirche
-
Kirche Osterwald
-
Villa Maatsch
-
Ernst von Malortie grave
-
Alte Herrenhäuser Straße 8
-
Hardenbergsches Haus (Hannover)
-
Pagenhaus
-
Alte Herrenhäuser Straße 7
-
Villa Knoevenagel
-
Stichweh-Wohnhaus
-
Heisenstraße 24
-
Walderseestraße 3
-
Callinstraße 4
-
Institut für Anorganische Chemie der Universität Hannover
-
Georgenpalais
-
Haus der Wirtschaftsförderung
-
Ernst-August channel
-
Theodor-Lessing-Haus
-
Altgarbsen Church
-
Jakobistraße 9
-
Marstall
-
Lister Turm (Hannover)
-
Gartenhaus

Runway info

Runway 09R / 27L
 length2334m (7657ft)
 bearing92° / 272°
 width45m (148ft)
 surfaceconcrete
Runway 09C / 27C
 length777m (2549ft)
 bearing92° / 272°
 width23m (75ft)
 surfaceasphalt
 displ threshold58m (190ft) / 171m (561ft)
Runway 09L / 27R
 length3791m (12438ft)
 bearing92° / 272°
 width47m (154ft)
 surfaceconcrete
 displ threshold300m (984ft) / 300m (984ft)

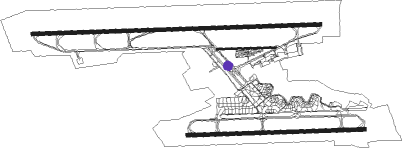

Airport layout - taxiway location L


Taxiway locations

 A  A1  B  C  D  D1  E  F
 G  H  J  K  KTO  L  M  N
 O  P  T2
Parking locations

 Apron  Cargo  GAT1  GAT2  GAT3  Hapag  helicopter  Police
 Terminal

Nearby beacons

codeidentifierdistbearingfrequency
HADDME0.338°113.95
HBDDME1.2256°116.90
HAHANNOVER NDB4.190°320
HWHANNOVER NDB5.3272°358
WUNWUNSTORF TACAN9.6268°114.85
CELCELLE NDB14.470°311
DLELEINE VOR/DME14.6138°115.20
SASSARSTEDT VOR/DME14.6138°114.45
NIENIENBURG VOR15.2297°116.50
BYCBUECKEBURG NDB24.3254°368
FSBFASSBERG NDB32.648°284
BRUBRAUNSCHWEIG-WOLFSBURG NDB34.599°427
HIGBREMEN NDB45.2307°318
BNDDME48303°113.65
BMNBREMEN VOR/DME48.6302°117.45
WSNWESER NDB60.7317°378
WRBWARBURG VOR/DME61.3211°113.70

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW09L
 CEL6Y14mi70°
 MULD5Y31mi93°
 POVE2Y46mi106°
 WERA3Y60mi178°
 WRB3Y61mi211°
 VAXE1Y22mi264°
 NIE1Y15mi297°
RW09R
 CEL9G14mi70°
 MULD6G31mi93°
 POVE2H46mi106°
 WERA3G60mi178°
 WRB1G61mi211°
 VAXE1G22mi264°
 NIE7G15mi297°
RW27L
 CEL8F14mi70°
 MULD8F31mi93°
 POVE3F46mi106°
 WERA3F60mi178°
 WRB8F61mi211°
 VAXE1F22mi264°
 NIE7F15mi297°
RW27R
 CEL6S14mi70°
 MULD6S31mi93°
 POVE3S46mi106°
 WERA3S60mi178°
 WRB3S61mi211°
 VAXE1S22mi264°
 NIE9S15mi297°

STAR starting pointsdistanceinbound heading
RW09 (ALL)
 ELNA2R75.60°
 WRB5R61.331°
 HLZ6R40.8275°
 GITE4R41.3299°
 WERA2R59.6358°
RW09L
 TOLT3A47.013°
 WRB3A61.331°
 ROBE0925.684°
 KUGA3A39.788°
 NIE09, CEL0925.698°
 ESTA3A63.9173°
 OBAT3A30.1252°
 HLZ1A40.8275°
RW09R
 TOLT3E47.013°
 WRB3E61.331°
 ROBE0925.684°
 KUGA3E39.788°
 CEL09, NIE0925.698°
 ESTA3E63.9173°
 OBAT3E30.1252°
 HLZ1E40.8275°
RW27 (ALL)
 ELNA5P75.60°
 WRB8P61.331°
 HLZ6P40.8275°
 GITE5P41.3299°
 WERA2P59.6358°
RW27L
 VISK3D32.996°
 OBAT3D30.1252°
 CEL27, NIE2725.7265°
 HLZ3D40.8275°
 DLE2725.8279°
 UPDA3D37.5315°
RW27R
 VISK3L32.996°
 OBAT3L30.1252°
 NIE27, CEL2725.7265°
 HLZ3L40.8275°
 DLE2725.8279°
 UPDA3L37.5315°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09LCEL (250°)CEL
NIE (24mi, 273°) 4000ft
DV630 (5mi, 217°) 3000ft
DV632 (4mi, 184°)
DESIM (4mi, 91°) 3000ft
RW09LNIE (117°)NIE
DV630 (5mi, 217°) 3000ft
DV632 (4mi, 184°)
DESIM (4mi, 91°) 3000ft
RW09LROBEG (61°)ROBEG
DV631 (6mi, 15°) 4000ft
DV632 (8mi, 4°)
DESIM (4mi, 91°) 3000ft
 RNAVDESIM 3000ft
EDDV (10mi, 92°) 217ft
DV635 (2mi, 87°)
NIE (16mi, 294°) 4000ft
RW09RCEL (250°)CEL
NIE (24mi, 273°) 4000ft
DV640 (5mi, 204°) 3000ft
DV642 (5mi, 184°)
PIXEL (4mi, 91°) 3000ft
RW09RNIE (117°)NIE
DV640 (5mi, 204°) 3000ft
DV642 (5mi, 184°)
PIXEL (4mi, 91°) 3000ft
RW09RROBEG (61°)ROBEG
DV641 (6mi, 27°) 4000ft
DV642 (8mi, 4°)
PIXEL (4mi, 91°) 3000ft
 RNAVPIXEL 3000ft
EDDV (9mi, 90°) 222ft
DV153 (7mi, 94°)
SAS (12mi, 176°)
ROBEG (23mi, 268°) 4000ft
RW27LCEL (250°)CEL
DV600 (5mi, 157°) 4000ft
DV602 (4mi, 185°) 3000ft
ODINI (4mi, 272°) 3000ft
RW27LNIE (117°)NIE
CEL (24mi, 93°) 4000ft
DV600 (5mi, 157°) 4000ft
DV602 (4mi, 185°)
ODINI (4mi, 272°) 3000ft
RW27LSAS (318°)SAS
DV601 (9mi, 55°) 3000ft
DV602 (5mi, 5°)
ODINI (4mi, 272°) 3000ft
 RNAVODINI 3000ft
EDDV (9mi, 274°) 229ft
DV607 (2mi, 263°)
DV608 (5mi, 220°)
SAS (14mi, 113°) 4000ft
RW27RCEL (250°)CEL
DV610 (4mi, 161°) 4000ft
DV612 (4mi, 185°) 3000ft
XAVER (4mi, 272°) 3000ft
RW27RNIE (117°)NIE
CEL (24mi, 93°) 4000ft
DV610 (4mi, 161°) 4000ft
DV612 (4mi, 185°) 3000ft
XAVER (4mi, 272°) 3000ft
RW27RSAS (318°)SAS
DV611 (10mi, 48°) 3000ft
DV612 (4mi, 5°)
XAVER (4mi, 272°) 3000ft
 RNAVXAVER 3000ft
DV614 (8mi, 272°) 420ft
EDDV (turn)
(3188mi, 190°) 600ft
DV617 (3197mi, 10°) 3000ft
CEL (15mi, 93°) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CEL09CELFIXright77 (257)°> 4000ft1.0min timedICAO rules
CEL27CELFIXright77 (257)°> 4000ft1.0min timedICAO rules
DLE27DLENDBleft268 (88)°> 4000ft1.0min timedICAO rules
ELNA2RROBEGVHFright187 (7)°> 4000ft1.0min timedICAO rules
ELNA5PSASNDBleft268 (88)°> 4000ft1.0min timedICAO rules
GITE4RROBEGVHFright187 (7)°> 4000ft1.0min timedICAO rules
GITE5PSASNDBleft268 (88)°> 4000ft1.0min timedICAO rules
HLZ6PCELFIXright77 (257)°> 4000ft1.0min timedICAO rules
HLZ6RCELFIXright77 (257)°> 4000ft1.0min timedICAO rules
HLZ6RNIENDBright1 (181)°> 4000ft1.0min timedICAO rules
NIE09NIENDBright1 (181)°> 4000ft1.0min timedICAO rules
NIE27NIENDBright1 (181)°> 4000ft1.0min timedICAO rules
ROBE09ROBEGVHFright187 (7)°> 4000ft1.0min timedICAO rules
WERA2PSASNDBleft268 (88)°> 4000ft1.0min timedICAO rules
WERA2RROBEGVHFright187 (7)°> 4000ft1.0min timedICAO rules
WRB5RROBEGVHFright187 (7)°> 4000ft1.0min timedICAO rules
WRB8PSASNDBleft268 (88)°> 4000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
