Airports for X-Plane

Bremen

Airport details

CountryGermany
StateFree Hanseatic City of Bremen
RegionED
AirspaceBremen Ctr
MunicipalityBremen
Elevation14ft (4m)
TimezoneGMT +1
Coordinates53.04911, 8.78752
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEDDW
IATA codeBRE
FAA coden/a

Communication

Bremen ATIS132.380
Bremen Ground Control121.755
Bremen Tower120.330
Bremen RADAR124.800

Approach frequencies

ILS-cat-IIIRW09110.318.00mi
ILS-cat-IIIRW27110.918.00mi
3° GSRW09110.318.00mi
3° GSRW27110.918.00mi
Nearby Points of Interest:
Gastfeld
-
Schule an der Kornstraße
-
Buntentorsfriedhof
-
Poppes Landhaus
-
Kaserne IV des Infanterieregiments Bremen
-
Wohn- und Geschäftshäuser Rückertstraße 1
-
Kleiner Roland
-
Lehrgebäude Seefahrtschule Bremen
-
Haus Soltmann
-
Warturm und Storchnest
-
Concordenhaus
-
Wohnhaus Wüstestätte 1
-
St. Jakobus Packhaus
-
Wohnhaus Stavenstraße 7
-
Wohnhaus Schnoor 36
-
Wohnhaus Stavendamm 17
-
Wohnhaus Stavendamm 16
-
Wohnhaus Schnoor 37
-
Amtsfischerhaus
-
Institut für Niederdeutsche Sprache
-
Wohnhaus Franziskanerstraße 5–6
-
Wohnhaus Stavendamm 14
-
Packhaus Schnoor 2
-
Hartke-Haus
-
Wohnhaus Am Landherrnamt 6

Runway info

Runway 09 / 27
 length2626m (8615ft)
 bearing89° / 269°
 width46m (151ft)
 surfaceasphalt
 displ threshold294m (965ft) / 298m (978ft)
Runway 05 / 23
 length700m (2297ft)
 bearing64° / 244°
 width23m (75ft)
 surfaceasphalt

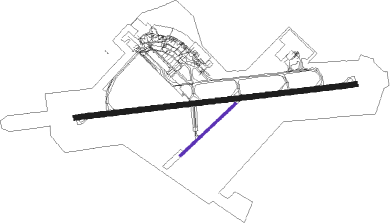

Airport layout - runway 05 / 23


Taxiway locations

 A  F  M
Parking locations

 01  02  03  04  05  06  07  08
 09  10  11  12A  14  15  16  17
 18  19  20  Airbus  Apron

Nearby beacons

codeidentifierdistbearingfrequency
BNDDME0.3227°113.65
BMNBREMEN VOR/DME0.9264°117.45
HIGBREMEN NDB4.390°318
WSNWESER NDB18.116°378
DPDIEPHOLZ NDB30216°325
NIENIENBURG VOR33.1126°116.50
WUNWUNSTORF TACAN42.6133°114.85
NDONORDHOLZ TACAN43.4349°117.10
NDONORDHOLZ NDB44.21°372
HWHANNOVER NDB44.4127°358
BYCBUECKEBURG NDB46.8158°368
HBDDME47.7124°116.90
HADDME47.9123°113.95
OSBOSNABRUCK TACAN54.1211°108.35
OSNOSNABRUECK VOR54.1211°114.30
MYNMUENSTER/OSNABRUECK NDB64.4228°371

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW09
 GEST8M47mi84°
 NIE5Q33mi126°
 ERLA4Q25mi156°
 BASU5Q17mi180°
 EEL5Q, EEL5E77mi273°
RW27
 GEST5K, GEST4A47mi84°
 NIE4Z, NIE7K33mi126°
 ERLA2K, ERLA2Z25mi156°
 BASU8K, BASU4A17mi180°
 EEL9W, EEL9K77mi273°

STAR starting pointsdistanceinbound heading
RW09
 EKRO2P23.4262°
 VERE3P17.8290°
RW27
 EKRO2P23.4262°
 VERE3P17.8290°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09BMN (84°)BMN 3000ft
DW450 (9mi, 247°) 3000ft
DW451 (5mi, 269°) 3000ft
DW455 (5mi, 356°) 3000ft
IBUTI (4mi, 89°) 3000ft
RW09EKR09 (9°)EKROV 4000ft
DW401 (13mi, 269°) 4000ft
DW405 (28mi, 269°)
DW420 (5mi, 176°)
IBUTI (8mi, 89°) 3000ft
RW09GIB09 (9°)GIBMA 4000ft
DW402 (5mi, 176°) 4000ft
DW405 (17mi, 269°)
DW420 (5mi, 176°)
IBUTI (8mi, 89°) 3000ft
RW09PIX09 (9°)PIXUR 4000ft
DW410 (9mi, 269°) 4000ft
DW412 (8mi, 269°)
DW420 (5mi, 356°)
IBUTI (8mi, 89°) 3000ft
RW09VE09A (9°)VERED 4000ft
DW401 (15mi, 329°) 4000ft
DW405 (28mi, 269°)
DW420 (5mi, 176°)
IBUTI (8mi, 89°) 3000ft
RW09VE09B (9°)VERED 4000ft
DW400 (5mi, 329°) 4000ft
DW412 (31mi, 269°)
DW420 (5mi, 356°)
IBUTI (8mi, 89°) 3000ft
 RNAVIBUTI 3000ft
EDDW (10mi, 88°) 66ft
HIG (4mi, 90°) 420ft
DW461 (3mi, 205°)
BMN (5mi, 292°) 3000ft
RW27BMN (84°)BMN 3000ft
DW550 (11mi, 106°) 3000ft
DW551 (5mi, 89°) 3000ft
DW555 (5mi, 357°) 3000ft
ROGBO (4mi, 269°) 3000ft
RW27EKR27 (9°)EKROV 4000ft
DW520 (5mi, 177°) 4000ft
DW555 (9mi, 269°) 4000ft
ROGBO (4mi, 269°) 3000ft
RW27GIB27 (9°)GIBMA 4000ft
DW402 (5mi, 176°)
EKROV (23mi, 89°)
DW520 (5mi, 177°) 4000ft
DW555 (9mi, 269°) 4000ft
ROGBO (4mi, 269°) 3000ft
RW27PIX27 (9°)PIXUR 4000ft
DW510 (15mi, 89°)
DW512 (8mi, 89°)
DW520 (5mi, 357°) 4000ft
DW555 (9mi, 269°) 4000ft
ROGBO (4mi, 269°) 3000ft
RW27VER27 (9°)VERED 4000ft
DW510 (5mi, 357°) 4000ft
DW512 (8mi, 89°)
DW520 (5mi, 357°) 4000ft
DW555 (9mi, 269°) 4000ft
ROGBO (4mi, 269°) 3000ft
 RNAVROGBO 3000ft
EDDW (10mi, 269°) 64ft
DW560 (3mi, 267°) 420ft
DW561 (3mi, 125°)
BMN (2mi, 19°) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
EKRO2PBMNNDBright357 (177)°> 3000ft1.0min timedICAO rules
EKRO2PEKROVVHFright74 (254)°> 4000ft1.0min timedICAO rules
GIBM2PBMNNDBright357 (177)°> 3000ft1.0min timedICAO rules
GIBM2PGIBMAVHFright1 (181)°> 4000ft1.0min timedICAO rules
PIXU3PBMNNDBright357 (177)°> 3000ft1.0min timedICAO rules
PIXU3PPIXURVHFleft167 (347)°> 4000ft1.0min timedICAO rules
VERE3PBMNNDBright357 (177)°> 3000ft1.0min timedICAO rules
VERE3PVEREDVHFright117 (297)°> 4000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
