Bremen
Airport details
| Country | Germany |
| State | Free Hanseatic City of Bremen |
| Region | ED |
| Airspace | Bremen Ctr |
| Municipality | Bremen |
| Elevation | 14ft (4m) |
| Timezone | GMT +1 |
| Coordinates | 53.04911, 8.78752 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | EDDW |
| IATA code | BRE |
| FAA code | n/a |
Communication
| Bremen ATIS | 132.380 |
| Bremen Ground Control | 121.755 |
| Bremen Tower | 120.330 |
| Bremen RADAR | 124.800 |
Approach frequencies
| ILS-cat-III | RW09 | 110.3 | 18.00mi |
| ILS-cat-III | RW27 | 110.9 | 18.00mi |
| 3° GS | RW09 | 110.3 | 18.00mi |
| 3° GS | RW27 | 110.9 | 18.00mi |

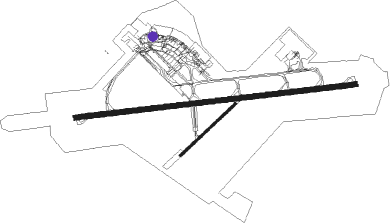

Runway info
Runway 09 / 27  | ||
| length | 2626m (8615ft) | |
| bearing | 89° / 269° | |
| width | 46m (151ft) | |
| surface | asphalt | |
| displ threshold | 294m (965ft) / 298m (978ft) | |
| Runway 05 / 23 | ||
| length | 700m (2297ft) | |
| bearing | 64° / 244° | |
| width | 23m (75ft) | |
| surface | asphalt | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| BND | DME | 0.3 | 227° | 113.65 |
| BMN | BREMEN VOR/DME | 0.9 | 264° | 117.45 |
| HIG | BREMEN NDB | 4.3 | 90° | 318 |
| WSN | WESER NDB | 18.1 | 16° | 378 |
| DP | DIEPHOLZ NDB | 30 | 216° | 325 |
| NIE | NIENBURG VOR | 33.1 | 126° | 116.50 |
| WUN | WUNSTORF TACAN | 42.6 | 133° | 114.85 |
| NDO | NORDHOLZ TACAN | 43.4 | 349° | 117.10 |
| NDO | NORDHOLZ NDB | 44.2 | 1° | 372 |
| HW | HANNOVER NDB | 44.4 | 127° | 358 |
| BYC | BUECKEBURG NDB | 46.8 | 158° | 368 |
| HBD | DME | 47.7 | 124° | 116.90 |
| HAD | DME | 47.9 | 123° | 113.95 |
| OSB | OSNABRUCK TACAN | 54.1 | 211° | 108.35 |
| OSN | OSNABRUECK VOR | 54.1 | 211° | 114.30 |
| MYN | MUENSTER/OSNABRUECK NDB | 64.4 | 228° | 371 |
Departure and arrival routes
| Transition altitude | 5000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW09 | |||
| GEST8M | 47mi | 84° | |
| NIE5Q | 33mi | 126° | |
| ERLA4Q | 25mi | 156° | |
| BASU5Q | 17mi | 180° | |
| EEL5Q, EEL5E | 77mi | 273° | |
| RW27 | |||
| GEST5K, GEST4A | 47mi | 84° | |
| NIE4Z, NIE7K | 33mi | 126° | |
| ERLA2K, ERLA2Z | 25mi | 156° | |
| BASU8K, BASU4A | 17mi | 180° | |
| EEL9W, EEL9K | 77mi | 273° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW09 | |||
| EKRO2P | 23.4 | 262° | |
| VERE3P | 17.8 | 290° | |
| RW27 | |||
| EKRO2P | 23.4 | 262° | |
| VERE3P | 17.8 | 290° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW09 | BMN (84°) | BMN 3000ft DW450 (9mi, 247°) 3000ft DW451 (5mi, 269°) 3000ft DW455 (5mi, 356°) 3000ft IBUTI (4mi, 89°) 3000ft |
| RW09 | EKR09 (9°) | EKROV 4000ft DW401 (13mi, 269°) 4000ft DW405 (28mi, 269°) DW420 (5mi, 176°) IBUTI (8mi, 89°) 3000ft |
| RW09 | GIB09 (9°) | GIBMA 4000ft DW402 (5mi, 176°) 4000ft DW405 (17mi, 269°) DW420 (5mi, 176°) IBUTI (8mi, 89°) 3000ft |
| RW09 | PIX09 (9°) | PIXUR 4000ft DW410 (9mi, 269°) 4000ft DW412 (8mi, 269°) DW420 (5mi, 356°) IBUTI (8mi, 89°) 3000ft |
| RW09 | VE09A (9°) | VERED 4000ft DW401 (15mi, 329°) 4000ft DW405 (28mi, 269°) DW420 (5mi, 176°) IBUTI (8mi, 89°) 3000ft |
| RW09 | VE09B (9°) | VERED 4000ft DW400 (5mi, 329°) 4000ft DW412 (31mi, 269°) DW420 (5mi, 356°) IBUTI (8mi, 89°) 3000ft |
| RNAV | IBUTI 3000ft EDDW (10mi, 88°) 66ft HIG (4mi, 90°) 420ft DW461 (3mi, 205°) BMN (5mi, 292°) 3000ft | |
| RW27 | BMN (84°) | BMN 3000ft DW550 (11mi, 106°) 3000ft DW551 (5mi, 89°) 3000ft DW555 (5mi, 357°) 3000ft ROGBO (4mi, 269°) 3000ft |
| RW27 | EKR27 (9°) | EKROV 4000ft DW520 (5mi, 177°) 4000ft DW555 (9mi, 269°) 4000ft ROGBO (4mi, 269°) 3000ft |
| RW27 | GIB27 (9°) | GIBMA 4000ft DW402 (5mi, 176°) EKROV (23mi, 89°) DW520 (5mi, 177°) 4000ft DW555 (9mi, 269°) 4000ft ROGBO (4mi, 269°) 3000ft |
| RW27 | PIX27 (9°) | PIXUR 4000ft DW510 (15mi, 89°) DW512 (8mi, 89°) DW520 (5mi, 357°) 4000ft DW555 (9mi, 269°) 4000ft ROGBO (4mi, 269°) 3000ft |
| RW27 | VER27 (9°) | VERED 4000ft DW510 (5mi, 357°) 4000ft DW512 (8mi, 89°) DW520 (5mi, 357°) 4000ft DW555 (9mi, 269°) 4000ft ROGBO (4mi, 269°) 3000ft |
| RNAV | ROGBO 3000ft EDDW (10mi, 269°) 64ft DW560 (3mi, 267°) 420ft DW561 (3mi, 125°) BMN (2mi, 19°) 3000ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| EKRO2P | BMN | NDB | right | 357 (177)° | > 3000ft | 1.0min timed | ICAO rules |
| EKRO2P | EKROV | VHF | right | 74 (254)° | > 4000ft | 1.0min timed | ICAO rules |
| GIBM2P | BMN | NDB | right | 357 (177)° | > 3000ft | 1.0min timed | ICAO rules |
| GIBM2P | GIBMA | VHF | right | 1 (181)° | > 4000ft | 1.0min timed | ICAO rules |
| PIXU3P | BMN | NDB | right | 357 (177)° | > 3000ft | 1.0min timed | ICAO rules |
| PIXU3P | PIXUR | VHF | left | 167 (347)° | > 4000ft | 1.0min timed | ICAO rules |
| VERE3P | BMN | NDB | right | 357 (177)° | > 3000ft | 1.0min timed | ICAO rules |
| VERE3P | VERED | VHF | right | 117 (297)° | > 4000ft | 1.0min timed | ICAO rules |
| *) magnetic outbound (inbound) holding course | |||||||
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
