Airports for X-Plane

Mönchengladbach - Moenchengladbach

Airport details

CountryGermany
StateNorth Rhine-Westphalia
RegionED
AirspaceLangen Ctr
MunicipalityMönchengladbach
Elevation125ft (38m)
TimezoneGMT +1
Coordinates51.23035, 6.50449
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEDLN
IATA codeMGL
FAA coden/a

Communication

Moenchengladbach ATIS109.800
Moenchengladbach Moenchengladbach ground121.925
Moenchengladbach Tower120.450
Moenchengladbach Moenchengladbach tower118.125
Moenchengladbach Langen radar128.500

Approach frequencies

ILS-cat-IRW13108.9518.00mi
ILS-cat-IRW31110.5518.00mi
3.5° GSRW13108.9518.00mi
3° GSRW31110.5518.00mi
Nearby Points of Interest:
Ueddinger Straße 230–234
-
Dammer Straße 51
-
Ueddinger Straße 196
-
Dünner Straße 273
-
Priorhaus Neuwerk
-
Rathaus Neuwerk
-
Donker Straße 180
-
Raderbroich 2
-
Honschaftskapelle Dünn
-
Loosenweg 193
-
Raderbroich 59d
-
Engelblecker Straße 137
-
Wegestock Heerstraße 2
-
Neusser Straße 346
-
Wegestock Heerstraße 1
-
Wegestock Neusser Straße
-
Wegekreuz Hansastraße
-
Am Waldfriedhof 20
-
Hansastraße 1
-
Hansastraße 3
-
Bockersend 152
-
Wegestock Herrenshoffer Straße
-
Hansastraße 5
-
Beethovenstraße 21
-
Bockersend 96

Runway info

Runway 13 / 31
 length1196m (3924ft)
 bearing117° / 297°
 width30m (98ft)
 surfaceasphalt
 blast zone120m (394ft) / 119m (390ft)

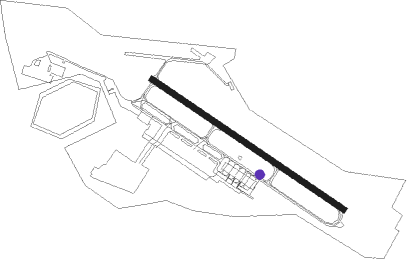

Airport layout - taxiway location A6


Taxiway locations

 A  A1  A2  A3  A4  A5  A6  B
 C  D  E
Parking locations

 Commercial  Gate  Hangar

Nearby beacons

codeidentifierdistbearingfrequency
MHDDME0.5290°112.50
MHVMOENCHENGLADBACH VOR0.6296°109.80
DYDUESSELDORF NDB5.688°284
LMALIMA NDB9.3322°311
DUSDUESSELDORF VOR/DME9.878°115.15
LIDUESSELDORF NDB16.173°417
GIXGEILENKIRCHEN TACAN23.6240°108.10
WNNDME24.5157°109.85
NVONOERVENICH VORTAC24.9162°116.20
LAANIEDERRHEIN NDB25.5318°352
MASMAASTRICHT VOR/DME25.7245°108.60
BAMBARMEN VOR/DME25.982°114
NIDDME26316°115.50
NWMAASTRICHT NDB26.7251°373
LJCOLOGNE-BONN NDB27.8119°365
BOTBOTTROP NDB28.856°406
WYPWIPPER VOR31.1103°109.60
KBOCOLOGNE-BONN VOR/DME32.8120°112.15
LWCOLOGNE-BONN NDB34.5114°300
LVCOLOGNE-BONN NDB37.7120°327
VKLVOLKEL TACAN39.2298°108.30
ONLLIEGE NDB48.1241°290
LNOOLNO VOR/DME49231°112.80
SLVSPA NDB50.4218°386
SPISPRIMONT VOR/DME54.4231°113.10
DLNDEELEN TACAN54.9323°112.20
RKNDME5516°116.80

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW13
 SONE5A49mi18°
 NUDG4A74mi85°
 KUMI3A64mi104°
 NVO2Z25mi162°
 MODR9M20mi243°
 ROMI2M20mi269°
 ABOD4A17mi352°
RW31
 SONE3N49mi18°
 NUDG5N74mi85°
 KUMI4N64mi104°
 NVO1N25mi162°
 MODR8N20mi243°
 ROMI9N20mi269°
 ABOD2N17mi352°

STAR starting pointsdistanceinbound heading
ALL
 GESB3J12.247°
 VEBA2J14.8146°
 NVO1J24.9342°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW13MHV (116°)MHV 2000ft
LN401 (10mi, 323°) 2000ft
LN400 (4mi, 232°) 2000ft
 RNAVLN400 2000ft
SUVIG (4mi, 117°) 2000ft
EDLN (5mi, 117°) 164ft
LN409 (4mi, 117°)
(3093mi, 187°) 1500ft
MHV (3095mi, 7°) 2000ft
RW31MHV (116°)MHV 2000ft
LN601 (11mi, 135°) 2000ft
LN600 (4mi, 52°) 2000ft
 RNAVLN600 2000ft
GREKA (4mi, 297°) 2000ft
EDLN (6mi, 297°) 164ft
LN609 (5mi, 297°)
(3097mi, 187°) 1500ft
MHV (3095mi, 7°) 2000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
GESB3JGESBIVHFright319 (139)°> 3000ft1.0min timedICAO rules
GESB3JMHVNDBleft179 (359)°> 2000ft1.0min timedICAO rules
LMA3JLMAFIXright59 (239)°4000ft - 14000ft1.0min timedICAO rules
LMA3JMHVNDBleft179 (359)°> 2000ft1.0min timedICAO rules
NVO1JGESBIVHFright319 (139)°> 3000ft1.0min timedICAO rules
NVO1JMHVNDBleft179 (359)°> 2000ft1.0min timedICAO rules
VEBA2JLMAFIXright59 (239)°4000ft - 14000ft1.0min timedICAO rules
VEBA2JMHVNDBleft179 (359)°> 2000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
