Airports for X-Plane

Augsburg

Airport details

CountryGermany
StateBavaria
RegionED
AirspaceMunich Ctr
MunicipalityAffing
Elevation1515ft (462m)
TimezoneGMT +1
Coordinates48.42516, 10.93176
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeEDMA
IATA codeAGB
FAA coden/a

Communication

Augsburg Augsburg ATIS119.665
Augsburg Augsburg Tower124.980
Augsburg Departure Langen128.255

Approach frequencies

ILS-cat-IRW25108.518.00mi
3.5° GSRW25108.518.00mi
Nearby Points of Interest:
St. Maria
-
Burgstall Mühlhausen
-
Schaufelrad Friedberg (Bayern)
-
Schlossgut Iglhof
-
Alter Ostfriedhof (Augsburg)
-
Bildstock
-
Nordfriedhof (Augsburg)
-
Hohes Meer (Augsburg)
-
Justizvollzugsanstalt Augsburg
-
Category:Kloster St. Georg (Augsburg)
-
Brunnen am Bourges-Platz
-
Pavillon
-
Ehemaliger Domherrenhof
-
Frauentorstraße 2
-
Burgstall Haunswies
-
Peutingerhaus
-
Fürstbischöfliche Residenz (Augsburg)
-
Burggrafenturm
-
Stadtmetzg Augsburg
-
Leonhardskapelle
-
Neuer Bau
-
Holi
-
Oberpostdirektion
-
Alte Silberschmiede
-
Stadttheater Augsburg

Runway info

Runway 07 / 25
 length1590m (5217ft)
 bearing77° / 257°
 width30m (98ft)
 surfaceasphalt
 displ threshold142m (466ft) / 172m (564ft)
Runway 07R / 25L
 length1011m (3317ft)
 bearing77° / 257°
 width30m (98ft)
 surfacegrass

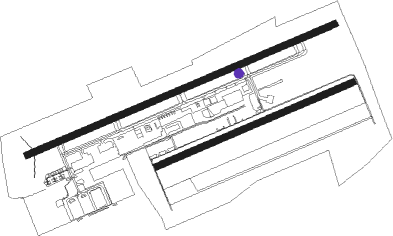

Airport layout - taxiway location D


Taxiway locations

 A  B  C  D  E  M  S
Parking locations

 Apron  Flying  Grass  Hangar  Maintenance

Nearby beacons

codeidentifierdistbearingfrequency
AGBAUGSBURG NDB0123°318
AUGDME0.290°115.90
WLDWALDA VOR/DME12.152°112.80
LCHLECHFELD TACAN14.3197°108.80
MAHMAISACH VOR/DME18113°115.20
NEUNEUBURG TACAN20.544°108.90
OBIOBERPFAFFENHOFEN NDB25134°429
MIQMIKE NDB27.878°426
MSEMUNICH NDB29.297°358
MNEMUNICH NDB29.995°369
IGLINGOLSTADT TACAN30.865°111.40
IGLINGOLSTADT NDB33.966°345
DMSDME34.196°115
DMNDME34.594°116
ALGALLGAEU (MEMMINGEN) NDB37.1237°341
OTTOTTERSBERG VOR/DME38.2105°112.30
ALD(MEMMINGEN/ALLGAU) DME38.3238°117.20
MSWMUNICH NDB3994°400
MNWMUNICH NDB39.293°338
KPTKEMPTEN VOR/DME47221°108.40
DKBDINKELSBUEHL VORTAC51316°117.80
ANSANSBACH NDB54.3341°452
HFXHOHENFELS NDB60.149°286
NDDDME-ILS69.6315°108.70
NSNNIEDERSTETTEN NDB69.6315°311

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW07
 MIQ5F28mi78°
 MAH6F18mi113°
 KPT9F47mi221°
 RIDA7F11mi322°
RW25
 MIQ6G28mi78°
 MAH7G18mi113°
 KPT9G47mi221°
 RIDA6G11mi322°

STAR starting pointsdistanceinbound heading
ALL
 ANDE2A36.1323°
 DISU4A34.4343°
 MERS4A26.9346°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07MAH (293°)MAH 4000ft
MA001 (14mi, 324°) 4000ft
MA010 (8mi, 293°) 4000ft
MA011 (14mi, 257°) 4000ft
MA012 (6mi, 153°) 4000ft
RW07WLD (232°)WLD 4000ft
MA010 (6mi, 257°) 4000ft
MA011 (14mi, 257°) 4000ft
MA012 (6mi, 153°) 4000ft
 RNAVMA012 4000ft
ABUSI (3mi, 77°) 3500ft
EDMA (6mi, 77°) 1560ft
MA013 (7mi, 77°) 3500ft
WLD (7mi, 15°) 4000ft
RW25MAH (293°)MAH 4000ft
MA001 (14mi, 324°) 3500ft
RW25WLD (232°)WLD 4000ft
MA001 (6mi, 166°) 3500ft
 RNAVMA001 3500ft
BUREG (4mi, 258°) 3500ft
EDMA (6mi, 257°) 1565ft
MA002 (2mi, 257°)
MA004 (6mi, 334°)
MA005 (7mi, 77°) 3500ft
WLD (6mi, 77°) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ANDE2AMAHNDBright311 (131)°> 5000ft1.0min timedICAO rules
DISU4AMAHNDBright311 (131)°> 5000ft1.0min timedICAO rules
MERS4AMAHNDBright311 (131)°> 5000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
