Airports for X-Plane

Braunschweig-wolfsburg

Airport details

CountryGermany
StateLower Saxony
RegionED
AirspaceBremen Ctr
MunicipalityBrunswick
Elevation292ft (89m)
TimezoneGMT +1
Coordinates52.31652, 10.54628
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeEDVE
IATA codeBWE
FAA coden/a

Communication

Braunschweig-Wolfsburg Braunschweig ATIS134.450
Braunschweig-Wolfsburg BREMEN INFO119.825
Braunschweig-Wolfsburg Braunschweig Tower120.050

Approach frequencies

ILS-cat-IRW26111.118.00mi
3° GSRW26111.118.00mi
Nearby Points of Interest:
Alte Dorfkirche
-
Matthäuskirche
-
Achtermannsches Haus
-
Huneborstelsches Haus in Braunschweig
-
Braunschweiger Rathaus
-
Von Veltheimsches Haus in Braunschweig
-
Klosterpark
-
Café Okerterrassen
-
Okerburg
-
Ackerhof 2
-
Haus zur Sonne
-
Haus zu den 7 Türmen
-
Haus Leuenturm
-
Autorshof
-
Kohlmarktbrunnen
-
Marienbrunnen (Braunschweig)
-
Gerloffsche Villa
-
Portal An der Martinikirche 1
-
Rüninger Zollhaus
-
Haus Anker
-
Leisewitzhaus
-
Steinstraße 3
-
Garnison-Schule
-
Ritter St. Georg, Braunschweig
-
Haus zur Hanse

Runway info

Runway 08 / 26
 length2292m (7520ft)
 bearing87° / 267°
 width45m (148ft)
 surfaceasphalt
 displ threshold295m (968ft) / 0m (0ft)

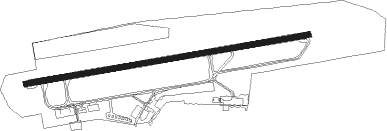

Airport layout


Taxiway locations

 C  E  G
Parking locations

 Airline  GA  Gras  Hangar  LBA  West

Nearby beacons

codeidentifierdistbearingfrequency
BRUBRAUNSCHWEIG-WOLFSBURG NDB2.285°427
HLZHEHLINGEN VOR/DME9.579°117.30
DLELEINE VOR/DME24.6264°115.20
SASSARSTEDT VOR/DME24.6264°114.45
CELCELLE NDB25298°311
HAHANNOVER NDB28.5281°320
HADDME32.4280°113.95
HBDDME33.5279°116.90
HWHANNOVER NDB37.7279°358
FSBFASSBERG NDB38.2329°284
CBCOCHSTEDT NDB43.1117°344
BKDBRUENKENDORF VOR/DME56.454°117.70

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW08
 DIRB7U33mi30°
 BATE5U25mi67°
 POVE5U15mi124°
 NORT6U38mi239°
 DLE7U25mi264°
 NIE7U47mi285°
RW26
 DIRB8T33mi30°
 BATE6G25mi67°
 POVE7W15mi124°
 NORT8T38mi239°
 DLE7T25mi264°
 NIE8T47mi285°

STAR starting pointsdistanceinbound heading
ALL
 WERA2V59.044°
 NIE1V46.8105°
RW08
 WERA2B, WERA2C59.044°
 NORT4B38.259°
 PIRO2C50.779°
 DLE5A24.684°
 ROBE2C47.186°
 NIE2C, NIE4H46.8105°
 DENI1C48.8174°
 ULSE4B31.8184°
 ABMA2C68.8198°
 MAG2C49.8284°
 POVE3B15.3304°
 LARE2C, LARE5H31.3326°
RW26
 UPDA2D26.240°
 WERA2X59.044°
 NORT6R38.259°
 PIRO2D50.779°
 DLE4R24.684°
 ROBE2D47.186°
 NIE2D, NIE5R46.8105°
 DENI2D48.8174°
 ULSE4A31.8184°
 ABMA3D68.8198°
 MAG2D49.8284°
 POVE3R15.3304°
 LARE5R, LARE2D31.3326°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08ELKER (72°)ELKER 4000ft
VE013 (4mi, 351°) 2500ft
MAGER (4mi, 87°) 2000ft
RW08LENDI (102°)LENDI 4000ft
VE013 (4mi, 171°) 2500ft
MAGER (4mi, 87°) 2000ft
 RNAVMAGER 2000ft
EDVE (5mi, 88°) 324ft
VE010 (4mi, 86°)
LENDI (13mi, 277°) 4000ft
RW26ALESI (253°)ALESI 4000ft
VE028 (4mi, 172°) 2500ft
LIDMO (4mi, 267°) 2000ft
RW26BABKA (279°)BABKA 4000ft
VE028 (4mi, 352°) 2500ft
LIDMO (4mi, 267°) 2000ft
 RNAVLIDMO 2000ft
EDVE (6mi, 266°) 342ft
VE025 (5mi, 268°)
VE024 (6mi, 3°)
ALESI (15mi, 91°) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BKD6VALESIVHFleft353 (173)°4000ft - 14000ft1.0min timed230
BKD8BLENDIVHFright352 (172)°4000ft - 14000ft1.0min timed230
DLE4RBABKAVHFright173 (353)°4000ft - 14000ft1.0min timed230
DLE5AELKERVHFleft172 (352)°4000ft - 14000ft1.0min timed230
LARE5HELKERVHFleft172 (352)°4000ft - 14000ft1.0min timed230
LARE5RBABKAVHFright173 (353)°4000ft - 14000ft1.0min timed230
NIE1VHLZNDBright26 (206)°> 4000ft1.0min timedICAO rules
NIE4HLENDIVHFright352 (172)°4000ft - 14000ft1.0min timed230
NIE5RALESIVHFleft353 (173)°4000ft - 14000ft1.0min timed230
NORT4BELKERVHFleft172 (352)°4000ft - 14000ft1.0min timed230
NORT6RBABKAVHFright173 (353)°4000ft - 14000ft1.0min timed230
POVE3BELKERVHFleft172 (352)°4000ft - 14000ft1.0min timed230
POVE3RBABKAVHFright173 (353)°4000ft - 14000ft1.0min timed230
ULSE4AALESIVHFleft353 (173)°4000ft - 14000ft1.0min timed230
ULSE4BLENDIVHFright352 (172)°4000ft - 14000ft1.0min timed230
WERA2BELKERVHFleft172 (352)°4000ft - 14000ft1.0min timed230
WERA2VHLZNDBright26 (206)°> 4000ft1.0min timedICAO rules
WERA2XBABKAVHFright173 (353)°4000ft - 14000ft1.0min timed230
*) magnetic outbound (inbound) holding course
