Airports for X-Plane

Ivalo

Airport details

CountryFinland
StateLapland
RegionEF
AirspaceHelsinki Ctr
MunicipalityInari
Elevation479ft (146m)
TimezoneGMT +2
Coordinates68.61083, 27.41389
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeEFIV
IATA codeIVL
FAA coden/a

Communication

Ivalo ATIS123.200
Ivalo Tower119.700

Approach frequencies

ILS-cat-IRW22109.918.00mi
3° GSRW22109.918.00mi

Runway info

Runway 04 / 22
 length2502m (8209ft)
 bearing71° / 251°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 60m (197ft)

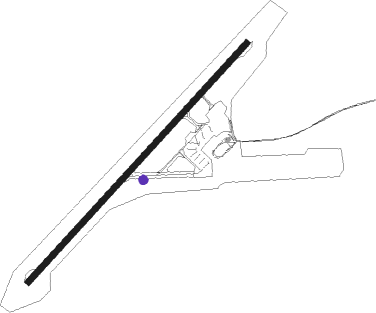

Airport layout - taxiway location E


Taxiway locations

 B  C  D  E  T  T2
Parking locations

 1  2  3A  4  5  6  7  8
 GA1  GA2

Nearby beacons

codeidentifierdistbearingfrequency
GGOLF (IVALO) NDB172°354
VVICTOR (IVALO) NDB1.4251°406
AKUAKUJARVI (IVALO) NDB5.971°432
TOLTOLO (IVALO) NDB5.9251°380
KNSDME9.4167°115.80

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW04
 NEKU1C23mi46°
 SOTI1C23mi210°
 LUSA1C28mi256°
RW22
 NEKU1D23mi46°
 SOTI1D23mi210°
 LUSA1D28mi256°

STAR starting pointsdistanceinbound heading
RW04
 SOTI2A23.030°
 LUSA2A28.276°
 NEKU2A23.4226°
RW22
 SOTI2B23.030°
 LUSA2B28.276°
 NEKU2B23.4226°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04RUKEM (82°)RUKEM 3500ft
KEPEX (5mi, 111°) 3500ft
RW04VENAB (52°)VENAB 3500ft
KEPEX (5mi, 291°) 3500ft
 RNAVKEPEX 3500ft
LEMLU (7mi, 71°) 2200ft
EFIV (6mi, 71°) 531ft
KUTIS (12mi, 71°) 3500ft
RW22LANRU (231°)LANRU 3500ft
KUTIS (5mi, 111°) 3500ft
RW22NEVUT (263°)NEVUT 3500ft
KUTIS (5mi, 292°) 3500ft
 RNAVKUTIS 3500ft
ARVUL (6mi, 251°) 2400ft
EFIV (6mi, 251°) 519ft
KEPEX (12mi, 251°) 3500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
LUSA2AKEPEXVHFleft213 (33)°> 3500ft1.0min timed230
LUSA2BKUTISVHFright33 (213)°> 3500ft1.0min timed230
NEKU2AKEPEXVHFleft213 (33)°> 3500ft1.0min timed230
NEKU2BKUTISVHFright33 (213)°> 3500ft1.0min timed230
SOTI2AKEPEXVHFleft213 (33)°> 3500ft1.0min timed230
SOTI2BKUTISVHFright33 (213)°> 3500ft1.0min timed230
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
